99 00... Separate components/paintwork: Tailgate

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Area specification applies to paint stage 1.

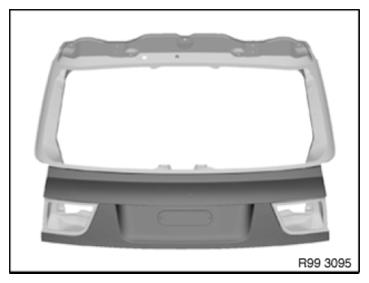

Fig 1: Identifying Paint Applying Areas On Tailgate (Area Specification Applies To Paint Stage 1)

G08531394

Courtesy of BMW OF NORTH AMERICA, INC.

Area specification applies to paint stages 2 and 3.

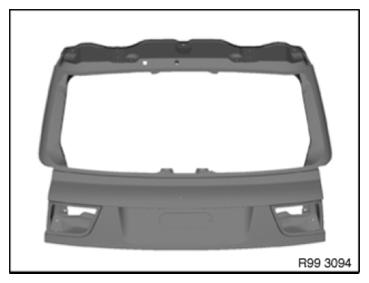

Fig 1: Identifying Paint Applying Areas On Tailgate (Area Specification Applies To Paint Stages 2 And 3)

G08531395

Courtesy of BMW OF NORTH AMERICA, INC.

Additional area specification inner panel for paint stages 2 and 3.

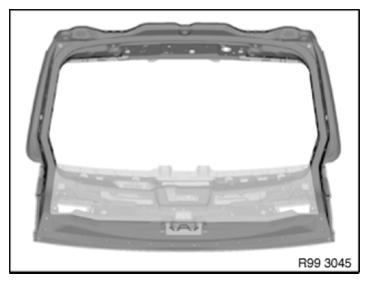

Fig 1: Identifying Paint Applying Areas On Tailgate (Additional Area Specification Inner Panel For Paint Stages 2 And 3)

G08531396

Courtesy of BMW OF NORTH AMERICA, INC.

Tailgate bottom

Area specification applies to all paint stages.

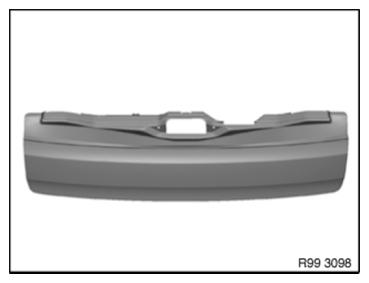

Fig 2: Identifying Paint Applying Areas On Tailgate Bottom (Area Specification Applies To All Paint Stages)

G08531397

Courtesy of BMW OF NORTH AMERICA, INC.

Tailgate bottom

Additional area specification inner panel for paint stages 2 and 3.

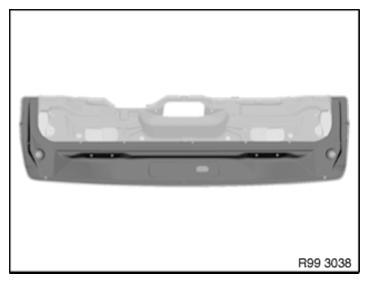

Fig 3: Identifying Paint Applying Areas On Tailgate Bottom (Additional Area Specification Inner Panel For Paint Stages 2 And 3)

G08531398

Courtesy of BMW OF NORTH AMERICA, INC.
