Trim panel, bumper, front

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Vehicles from 03 2010

Area specification applies to all paint stages.

Fig 1: Identifying Paint Applying Areas On Front Bumper Trim Panel (Area Specification Applies To All Paint Stages)

Courtesy of BMW OF NORTH AMERICA, INC.

Trim panel, bumper, rear left or right

Vehicles up to 02 2010

Area specification applies to all paint stages.

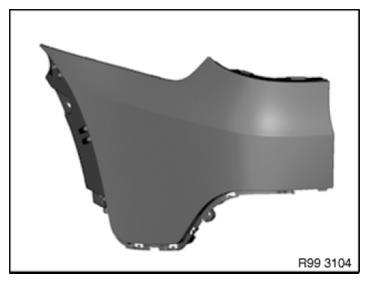

Fig 2: Identifying Paint Applying Areas On Rear Left Bumper Trim Panel (Area Specification Applies To All Paint Stages)

Courtesy of BMW OF NORTH AMERICA, INC.
