62 30... General notes on the Head-Up Display

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: A special windscreen must be fitted to ensure that the Head-Up Display image can be projected correctly.
This windscreen comprises three sections. An outer and an inner glass pane are connected by a wedge-shaped plastic film.
The wedge shape prevents double projection of the Head-Up Display.
When the windscreen is replaced, the vehicle identification number and parts catalogue must be consulted to ascertain whether the windscreen in question is suitable for Head-Up Display.

Example of the display with a conventional windscreen:

With a conventional windscreen, the projected image is reflected on the inner and outer glass pane, producing a double image.

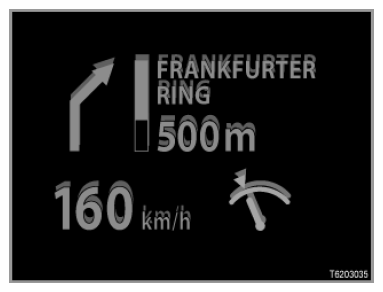

Fig 1: Example Of Display With Conventional Windscreen

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Windscreens for Head-Up Display are marked with the letters "HUD" on the outside at the bottom right below the seal (1) .

Fig 2: Adjusting Head-Up Display Fold Seal

Courtesy of BMW OF NORTH AMERICA, INC.
