CIRCUIT PROTECTION DEVICES
| Description (Components) | Location |
|---|---|
| Auxiliary Fuse Box (P95 & P97) | Rear Rh side of engine compartment in E-Box. |

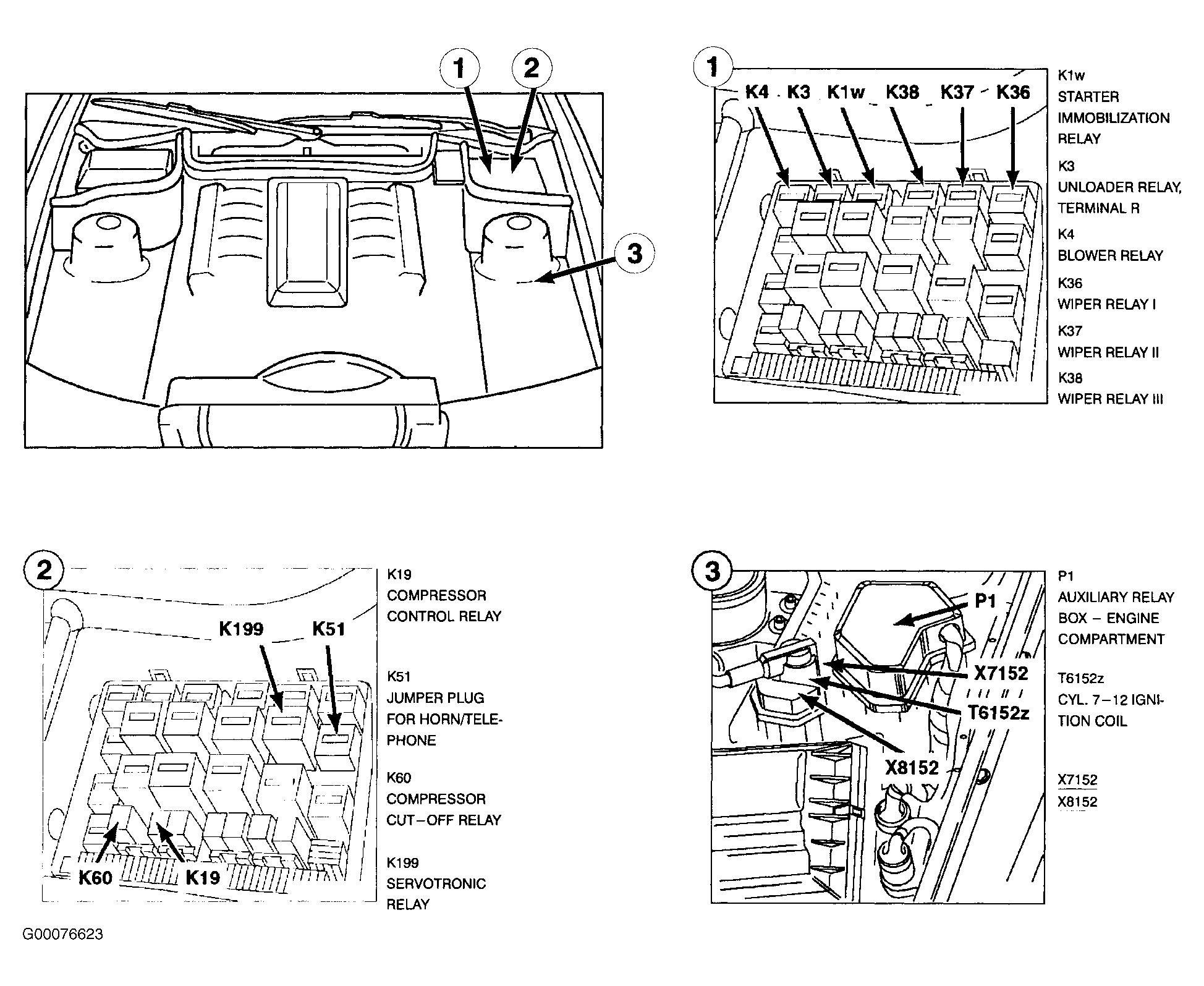

| Auxiliary Relay Box - Engine Compartment (P1) | LH side of engine compartment. See Figure . |

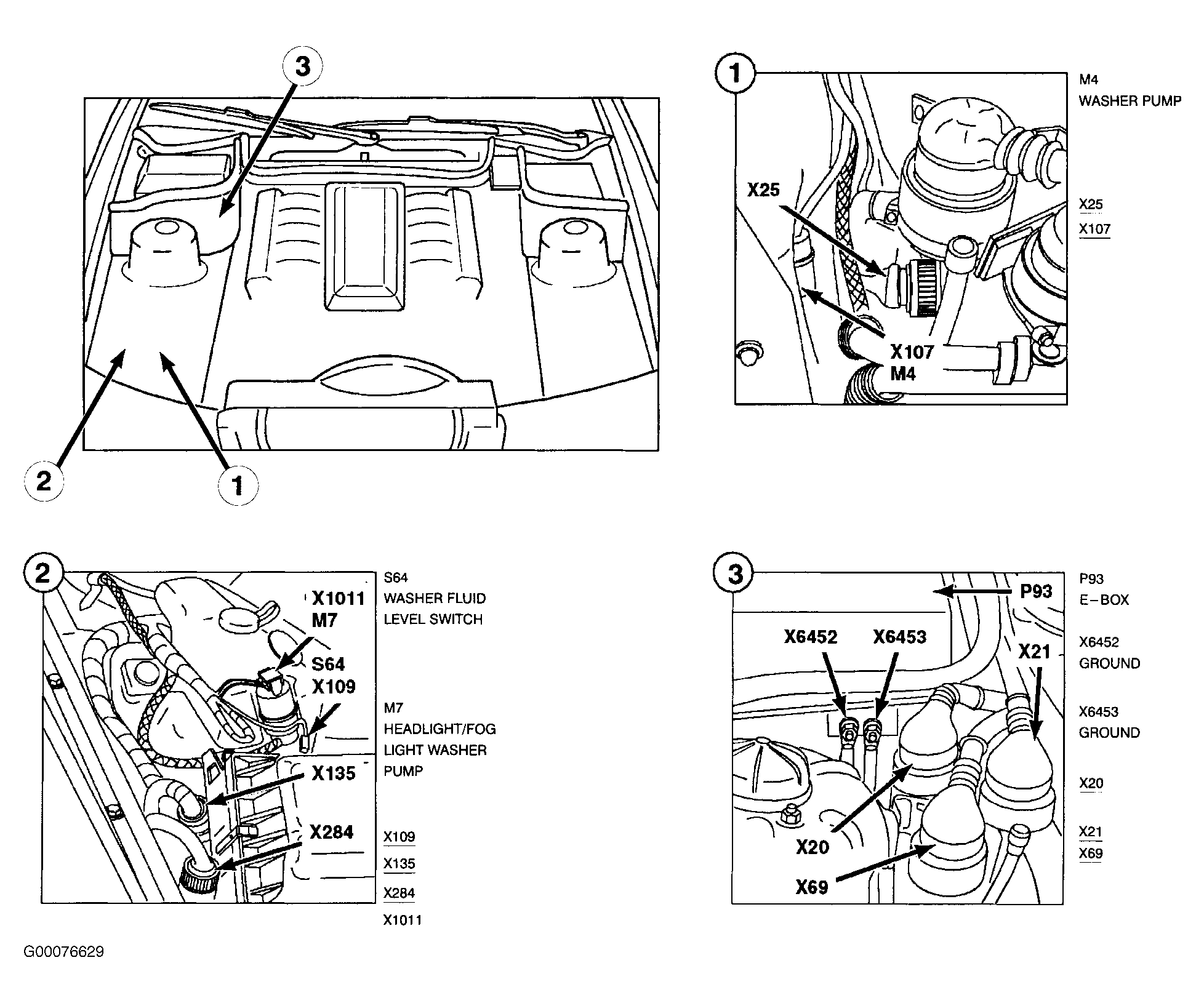

| E-Box (P93) | Rear RH side of engine compartment. See Figure & Figure . |
| Fuse Holder In E-Box (P98) | Rear RH side of engine compartment in E-Box. |

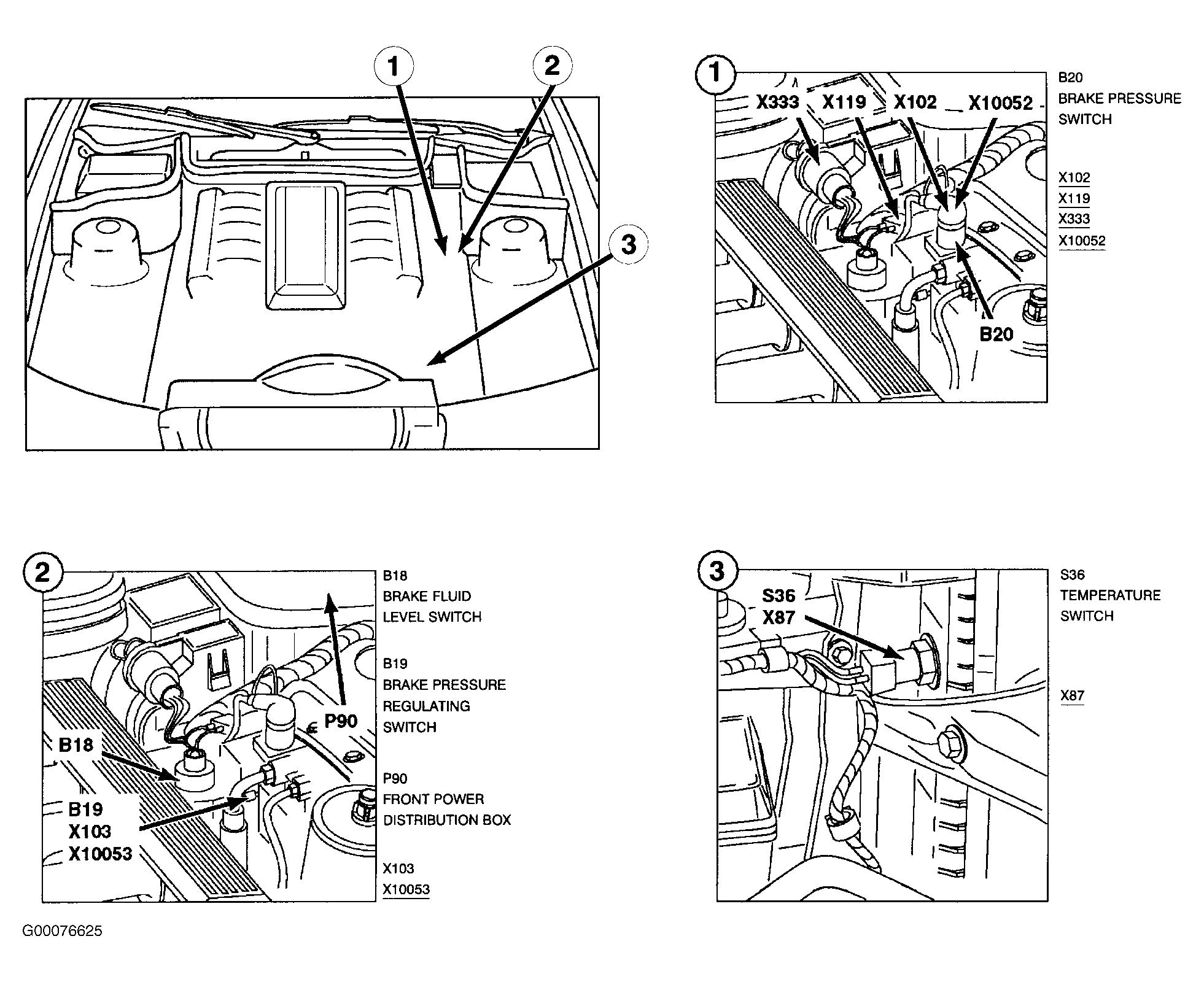

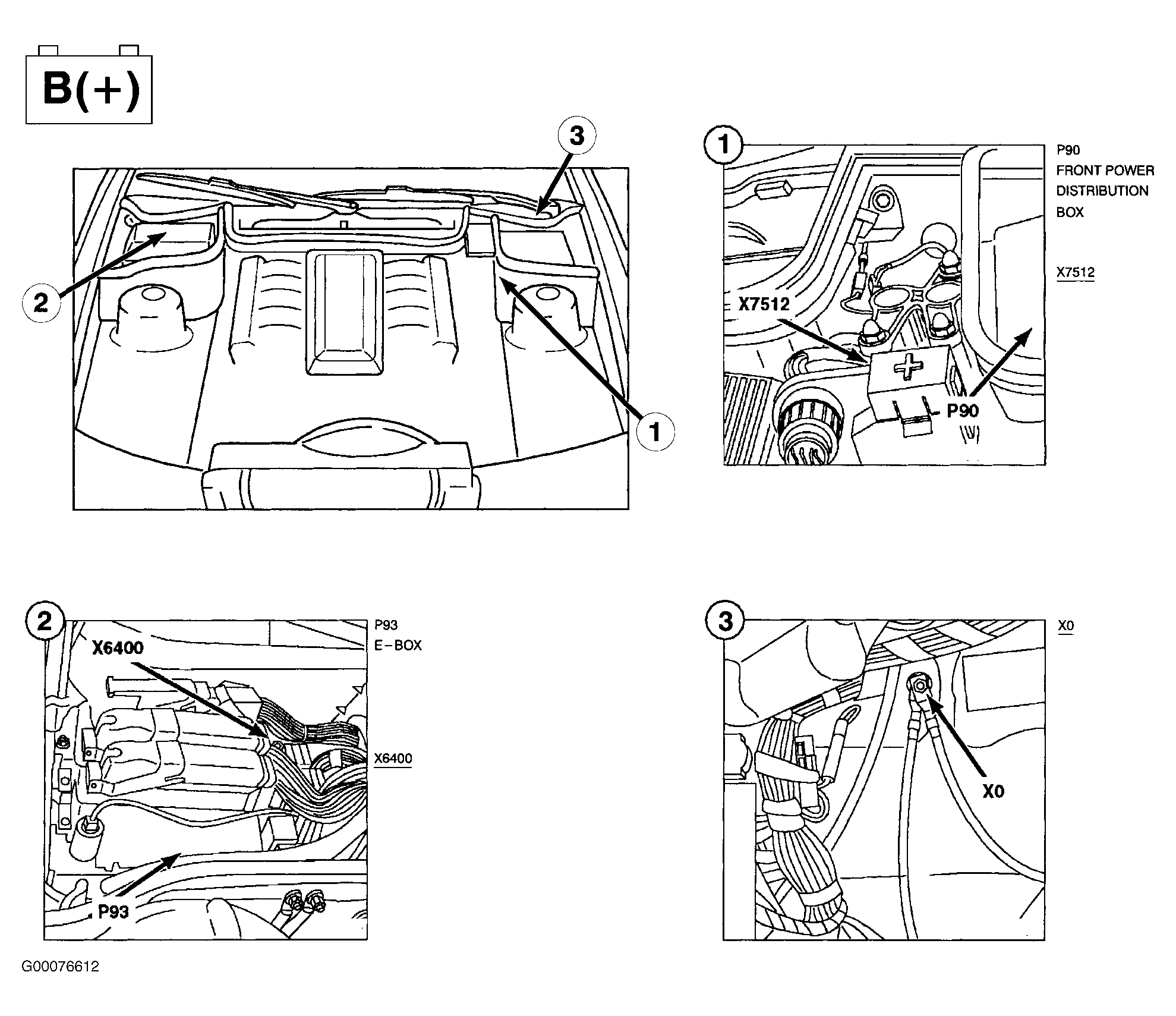

| Front Power Distribution Box (P90) | Rear LH side of engine compartment. See Figure & Figure . |

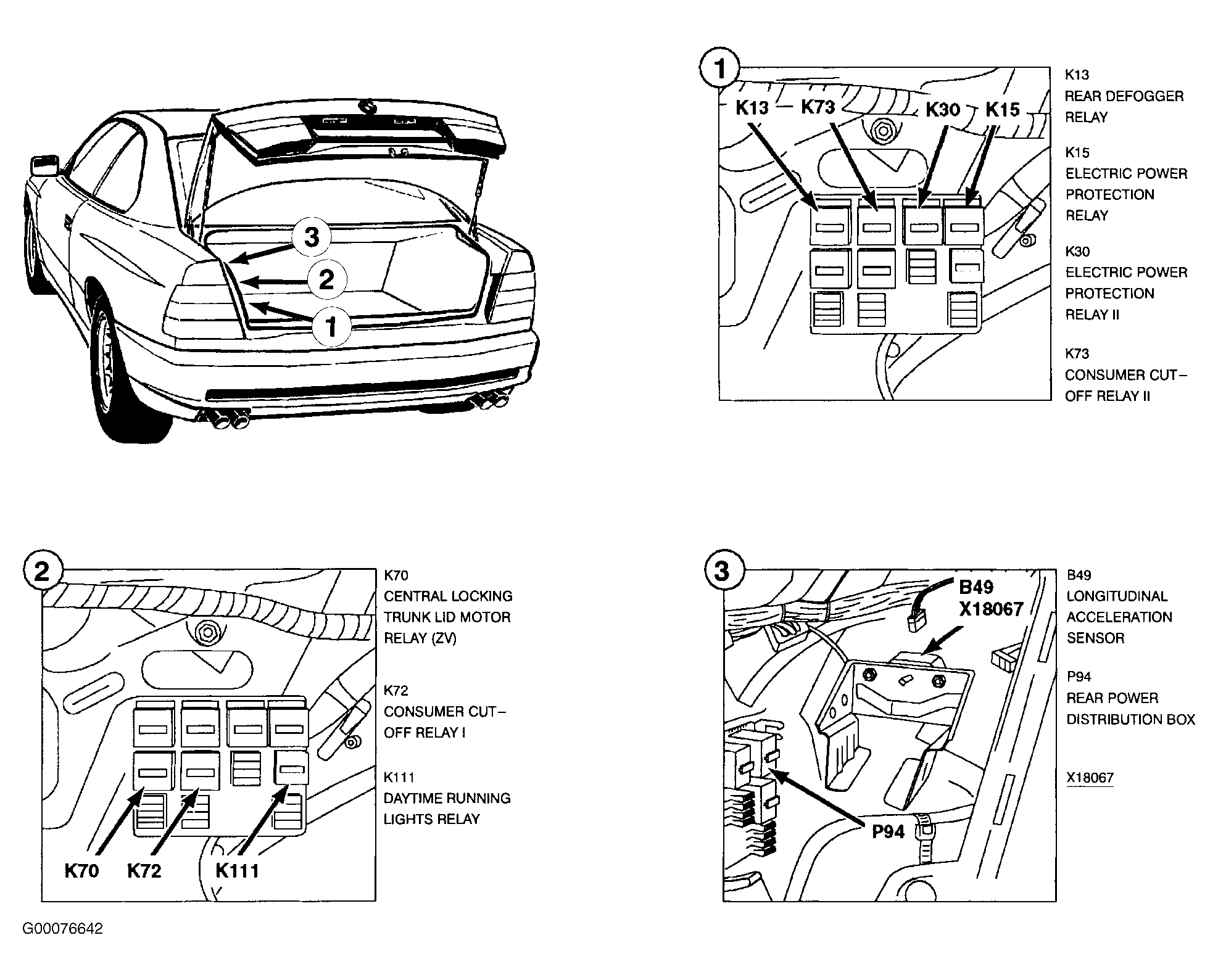

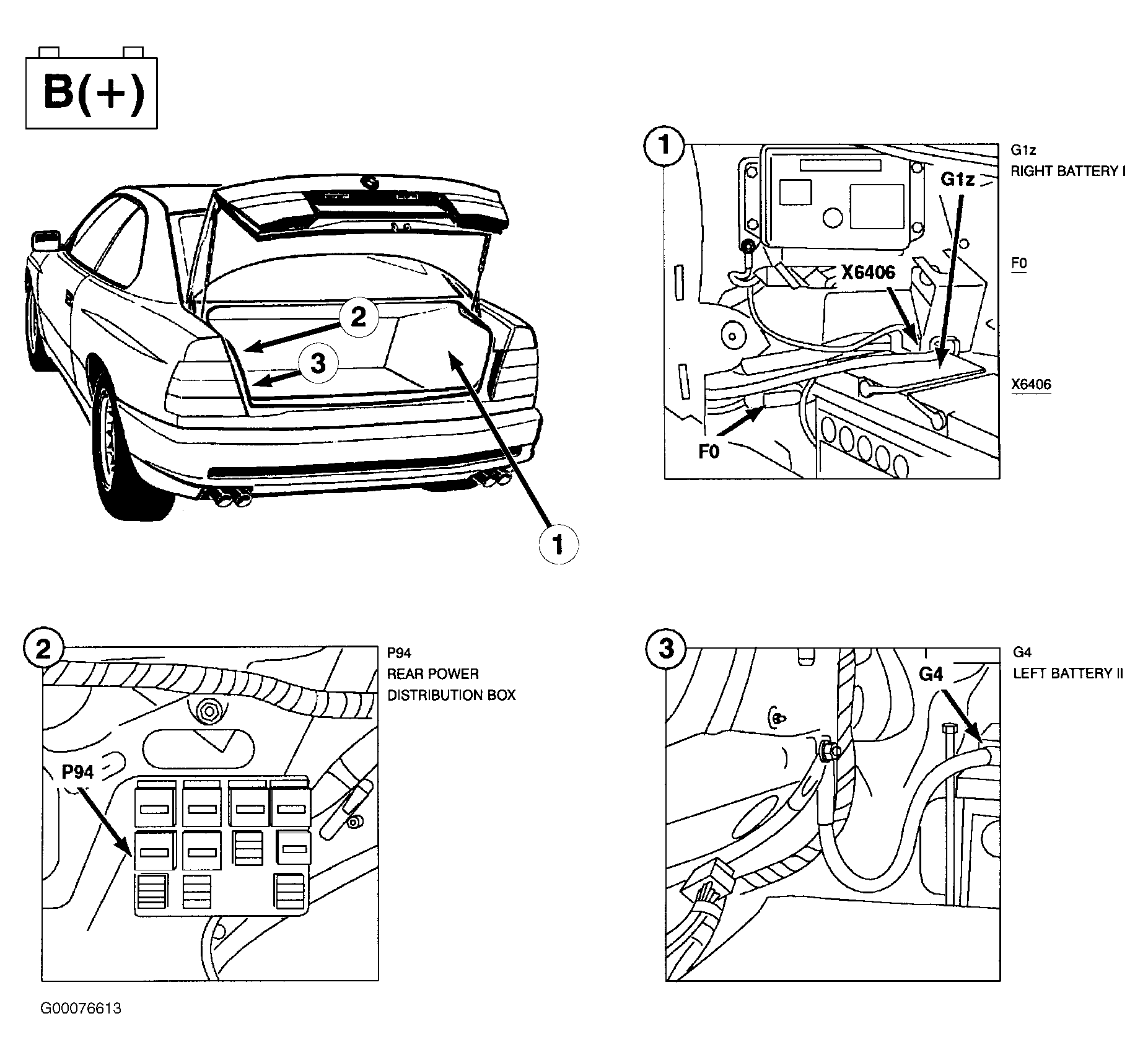

| Rear Power Distribution Box (P94) | In LH side of luggage compartment. See Figure & Figure . |
