17 00... Instructions For Working On Cooling System: Assembly

WARNING: This page is about a different car, the 2005 BMW 745i, 2004 BMW 745i, 2003 BMW 745i, and 2002 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

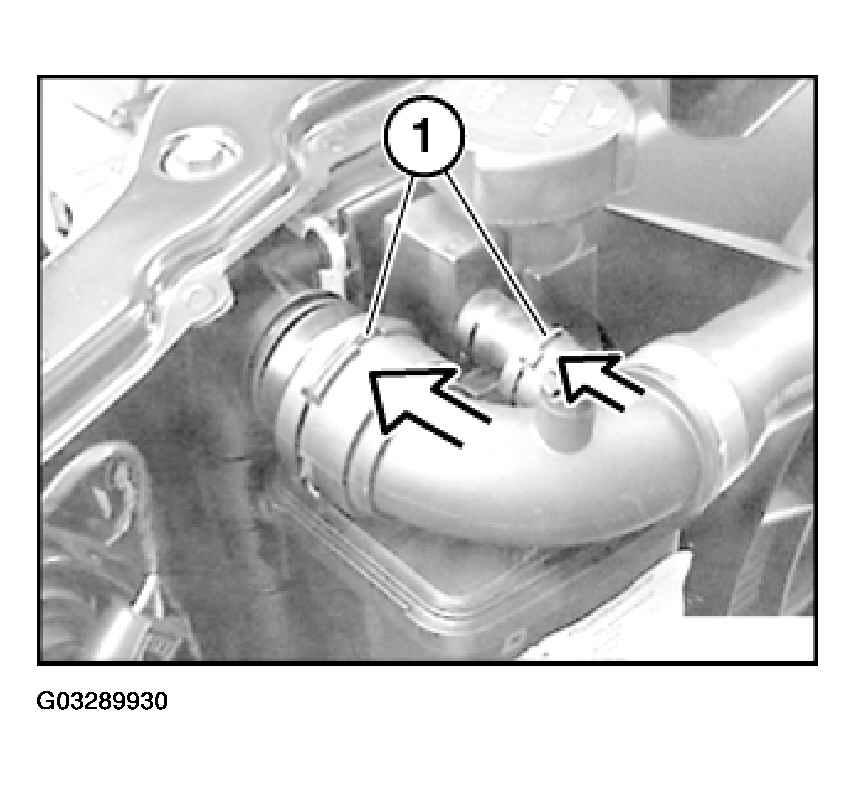

Press in lock (1) before installing fast-release coupling.

Fig 1: Assembling Fast-Release Coupling

Courtesy of BMW OF NORTH AMERICA, INC.

Push on hose.

Fast-release coupling must audibly snap into place.
