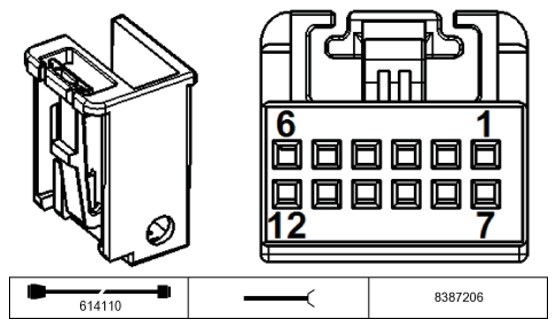

CCC/M-ASK X13814 Connector End View
Pin Assignments At Plug Connector X13814
| Pin | Type | Description /Signal type | Connection /Measuring notes |
|---|---|---|---|
| 1 | -- | Not occupied | |
| 2 | M | Ground | Video module |
| 3 | -- | Not occupied | |
| 4 | E | Video signal | Video module |
| 5 | -- | Not occupied | |
| 6 | -- | Not occupied | |
| 7 | -- | Not occupied | |
| 8 | -- | Not occupied | |
| 9 | -- | Not occupied | |
| 10 | -- | Not occupied | |
| 11 | M | Shielding | Video module |
| 12 | -- | Not occupied |
