61 13... Crimping Micro Power Quadlock contacts (MPQ)

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required:

NOTE: For special tools, refer to GENERAL ELECTRICAL SYSTEM - SPECIAL TOOLS - 3 SERIES (E46)

61 4 320

To crimp MPQ contacts, use pliers 61 4 321 (1) in conjunction with crimping head 61 4 325 (2) from crimping set 61 4 320.

NOTE: Pliers (1) open automatically as far as they will go when handles are pressed together.

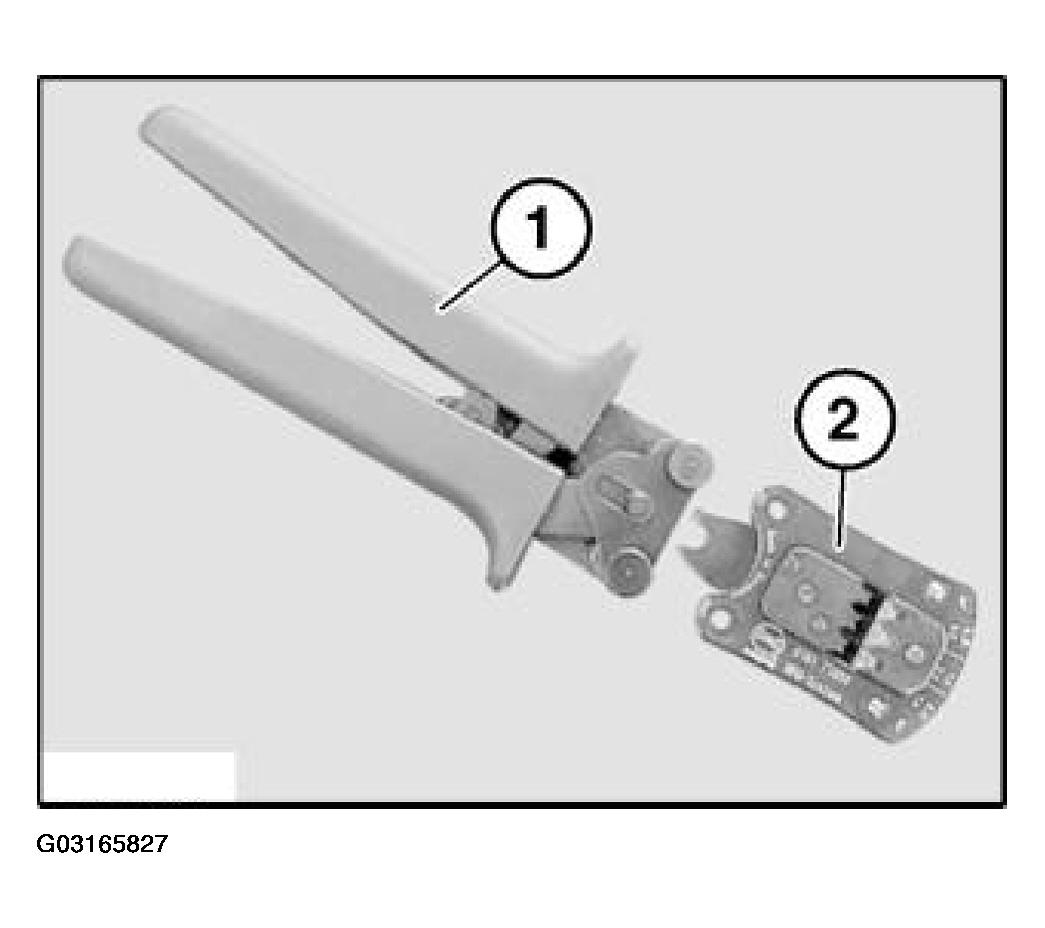

Fig 1: Identifying Special Tools Of (61 4 321 And 61 4 325)

Courtesy of BMW OF NORTH AMERICA, INC.

Open pliers (1).

NOTE: Place contact (2) with utmost care in designated nest (observe cable cross-section) in crimping head (3). Make sure it is exactly positioned.

Place MPQ contact (2) in crimping head (3).

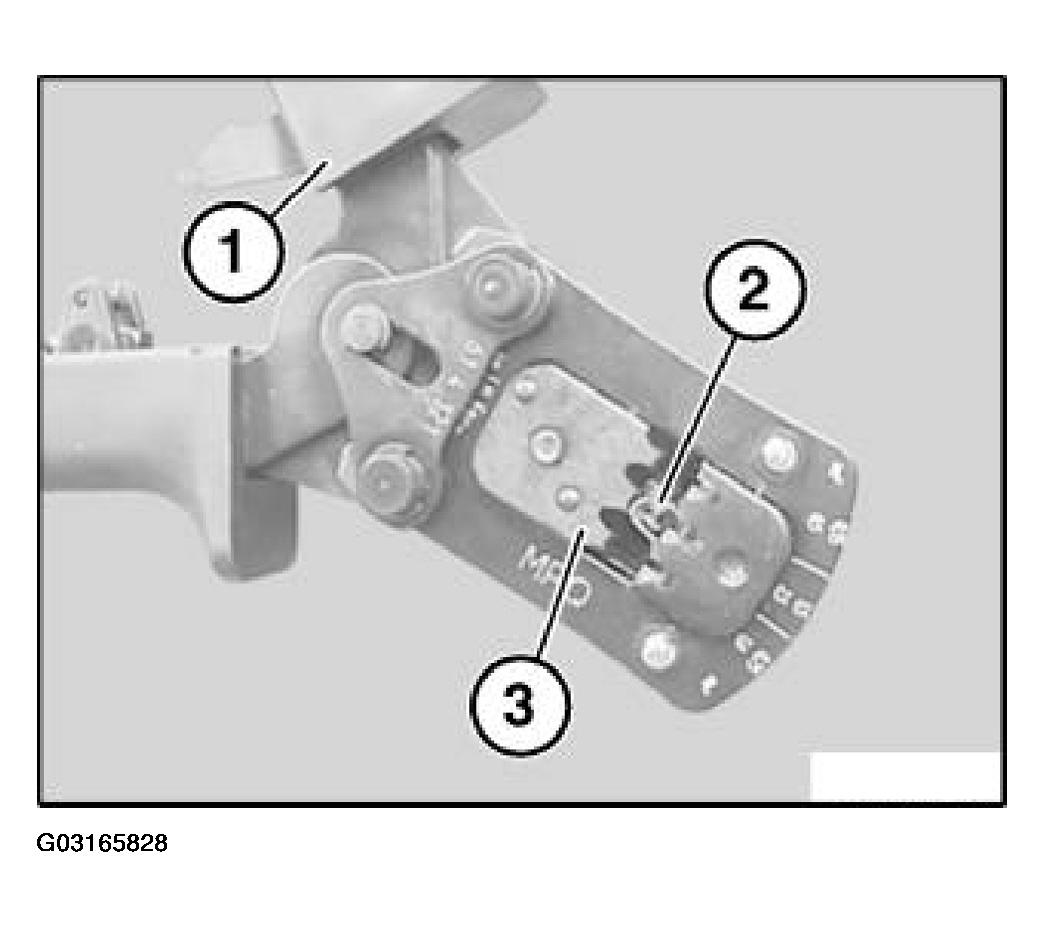

Fig 2: Placing MPQ Contact In Crimping Head

Courtesy of BMW OF NORTH AMERICA, INC.

Close pliers (1) one notch.

NOTE: Follow procedure for cutting and stripping insulation from cables, refer to 61 13... CUTTING OFF, STRIPPING INSULATION AND CUTTING OPTICAL FIBRES TO LENGTH .

Insert stripped cable (2).

Close pliers (1) fully.

Open pliers (1) and remove cable (2).

NOTE: Check contact for correct crimping.

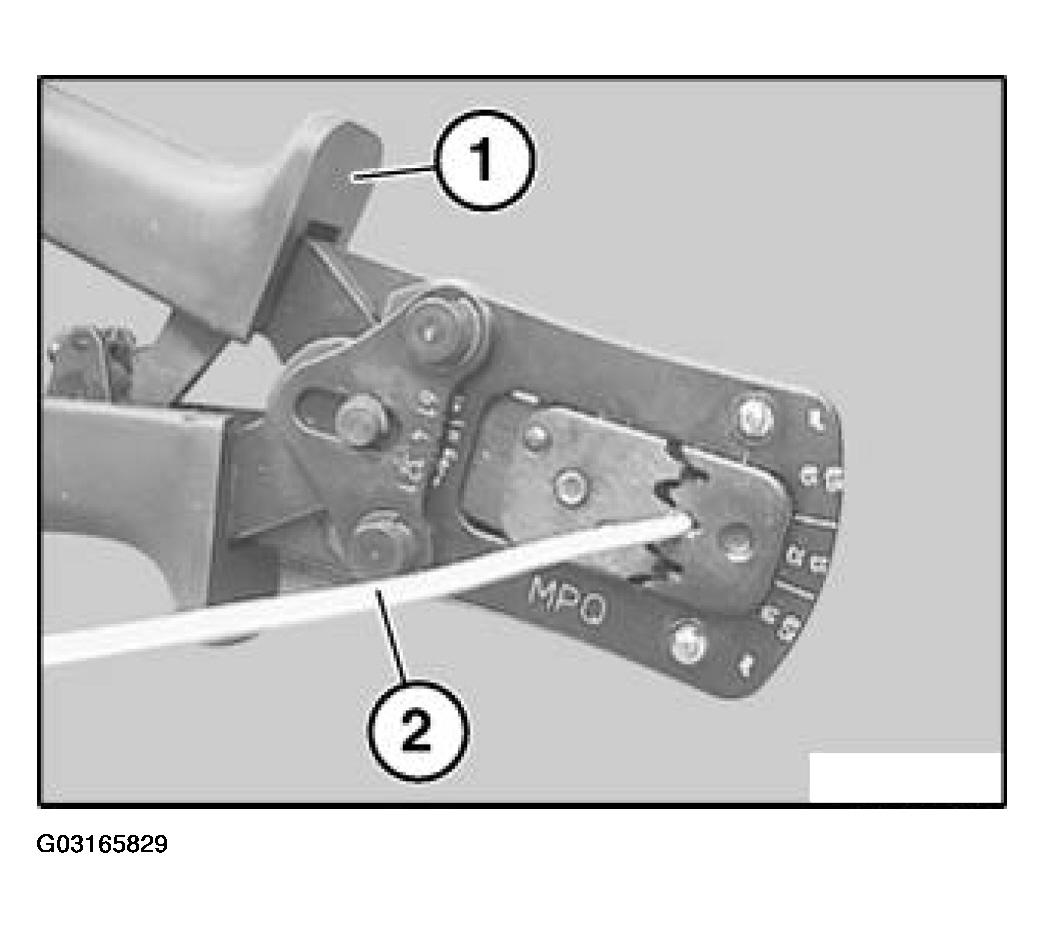

Fig 3: Inserting Stripped Cable

Courtesy of BMW OF NORTH AMERICA, INC.
