61 13... Crimping annular contacts

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

CrimpacII crimping pliers from repair kit 1 are used to crimp annular contacts.

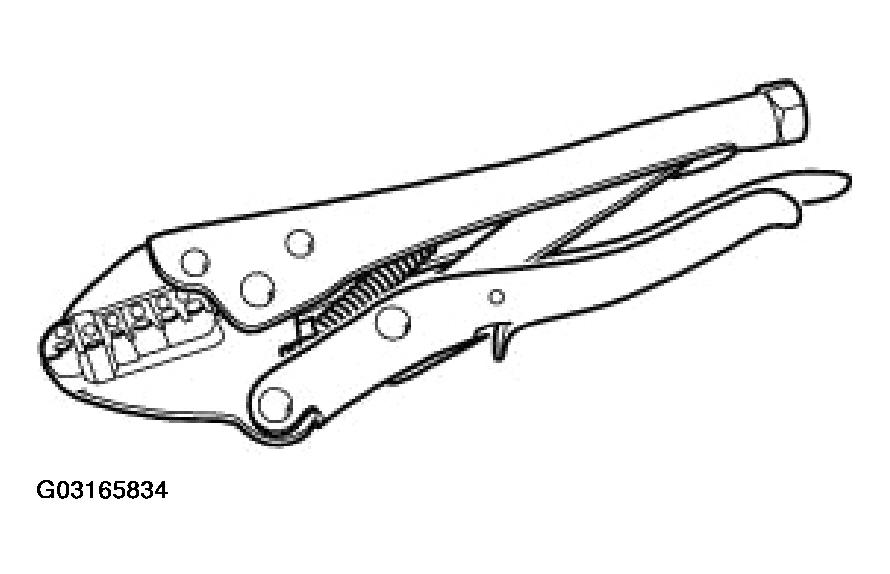

Fig 1: Identifying CrimpacII Crimping Pliers

Courtesy of BMW OF NORTH AMERICA, INC.

Open crimping pliers (1).

NOTE: Place contact (2) in designated nest (observe wire cross-section) with particular care. Make sure it is exactly positioned.

Insert annular contact (2) in crimping pliers (1).

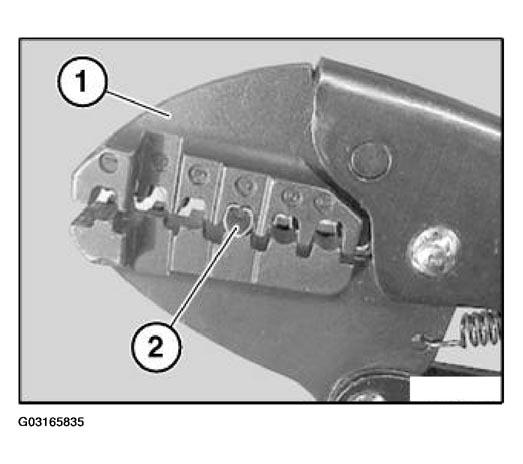

Fig 2: Inserting Annular Contact In Crimping Pliers

Courtesy of BMW OF NORTH AMERICA, INC.

Close crimping pliers (1) gently and keep closed.

Feed stripped cable (1) into annular contact (2) completely.

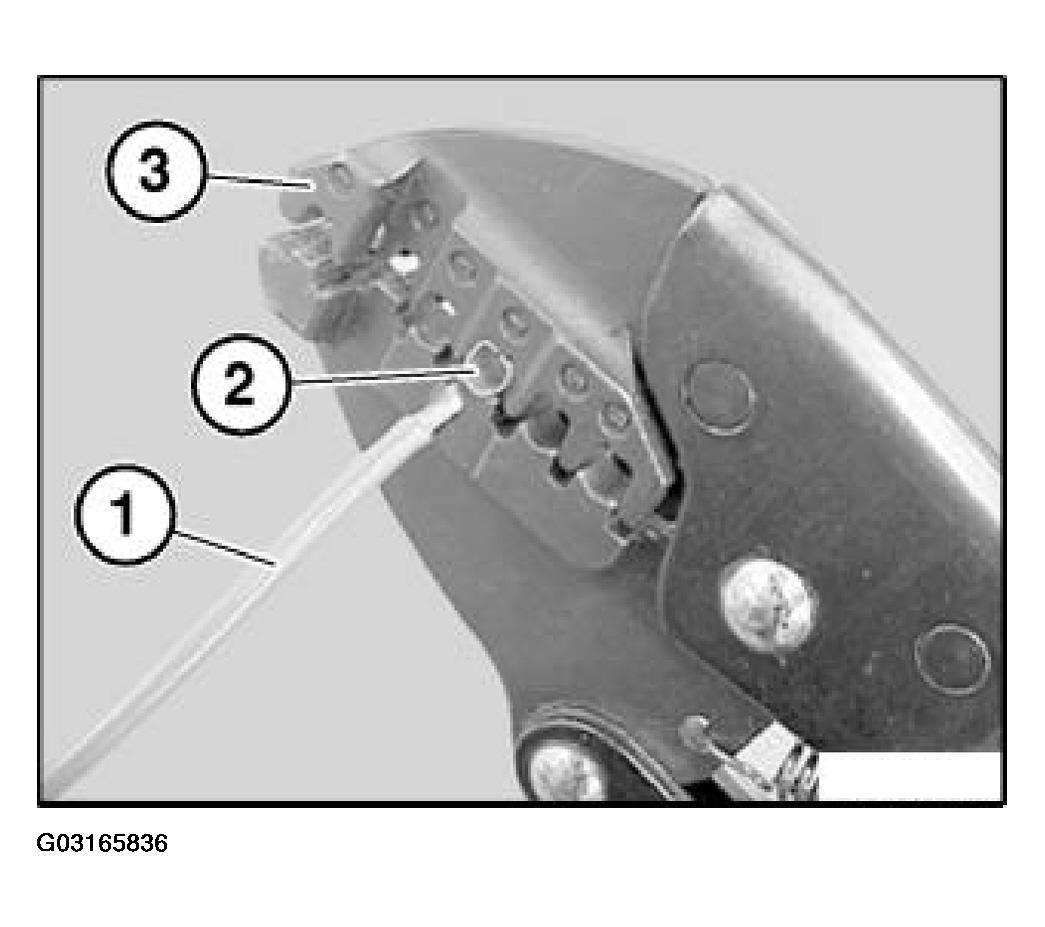

Fig 3: Feeding Stripped Cable Into Annular Contact

Courtesy of BMW OF NORTH AMERICA, INC.

Close crimping pliers (3) fully.

Open crimping pliers (3) and remove cable (2).

NOTE: Check contact for correct crimping.
