61 13... Unlocking and disconnecting different plug connections

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Examples of unlocking and disconnecting different plug connections.

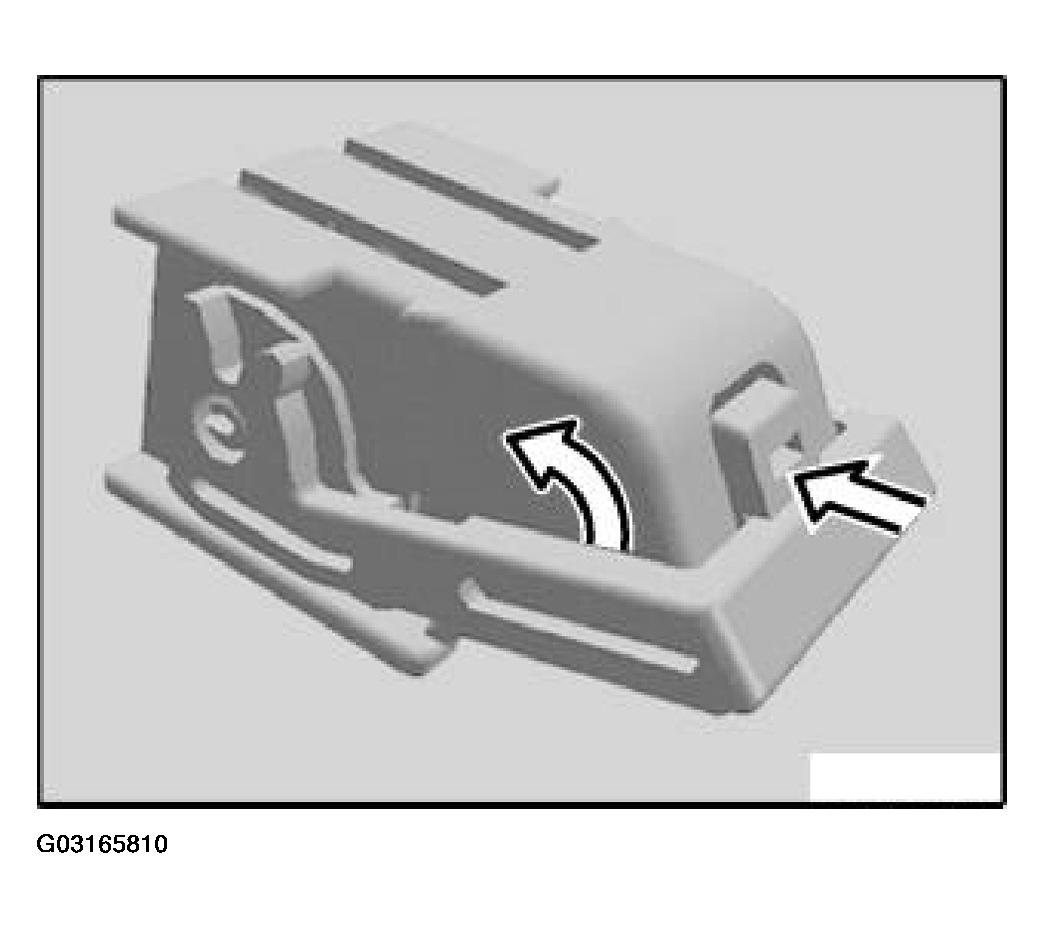

Press lock and open clip in direction of arrow.

Disconnect plug connection.

Fig 1: Pressing Lock And Open Clip

G03165810

Courtesy of BMW OF NORTH AMERICA, INC.

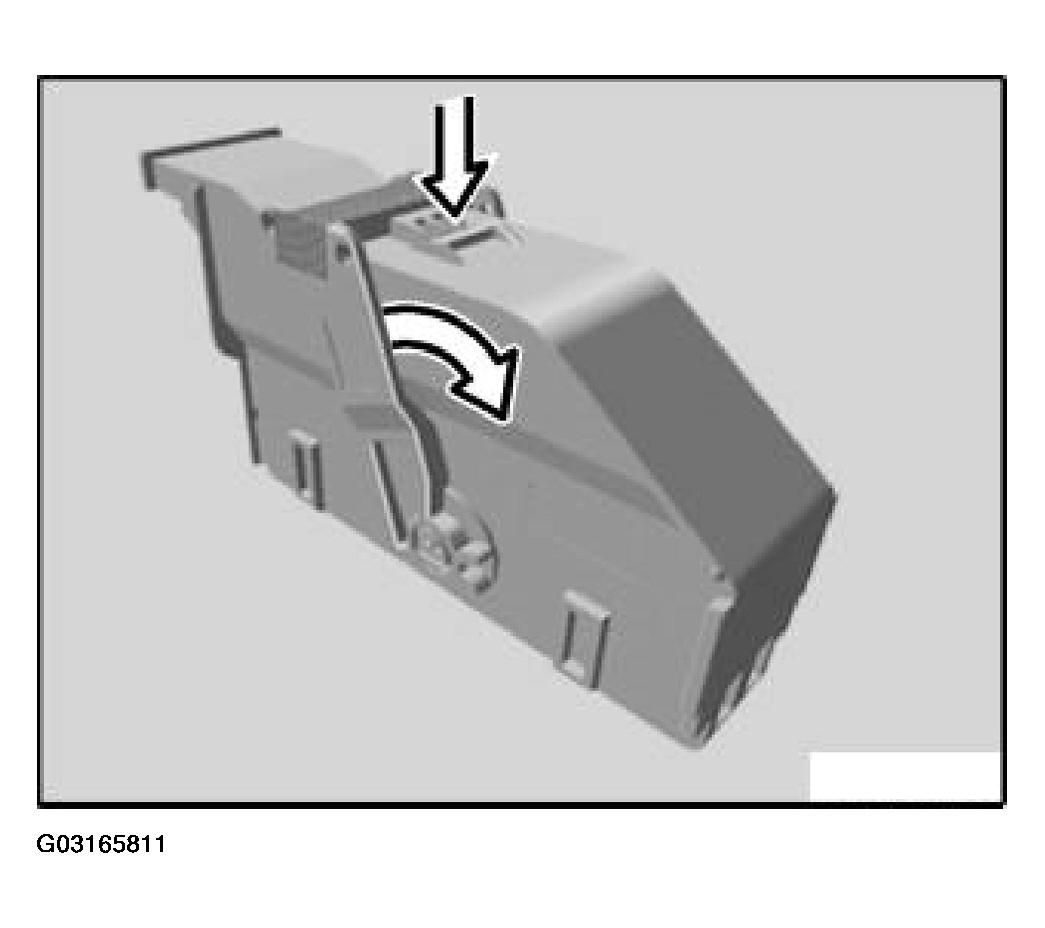

Press lock and open clip in direction of arrow.

Disconnect plug connection.

Fig 2: Pressing Lock And Open Clip In Direction Of Arrow

G03165811

Courtesy of BMW OF NORTH AMERICA, INC.

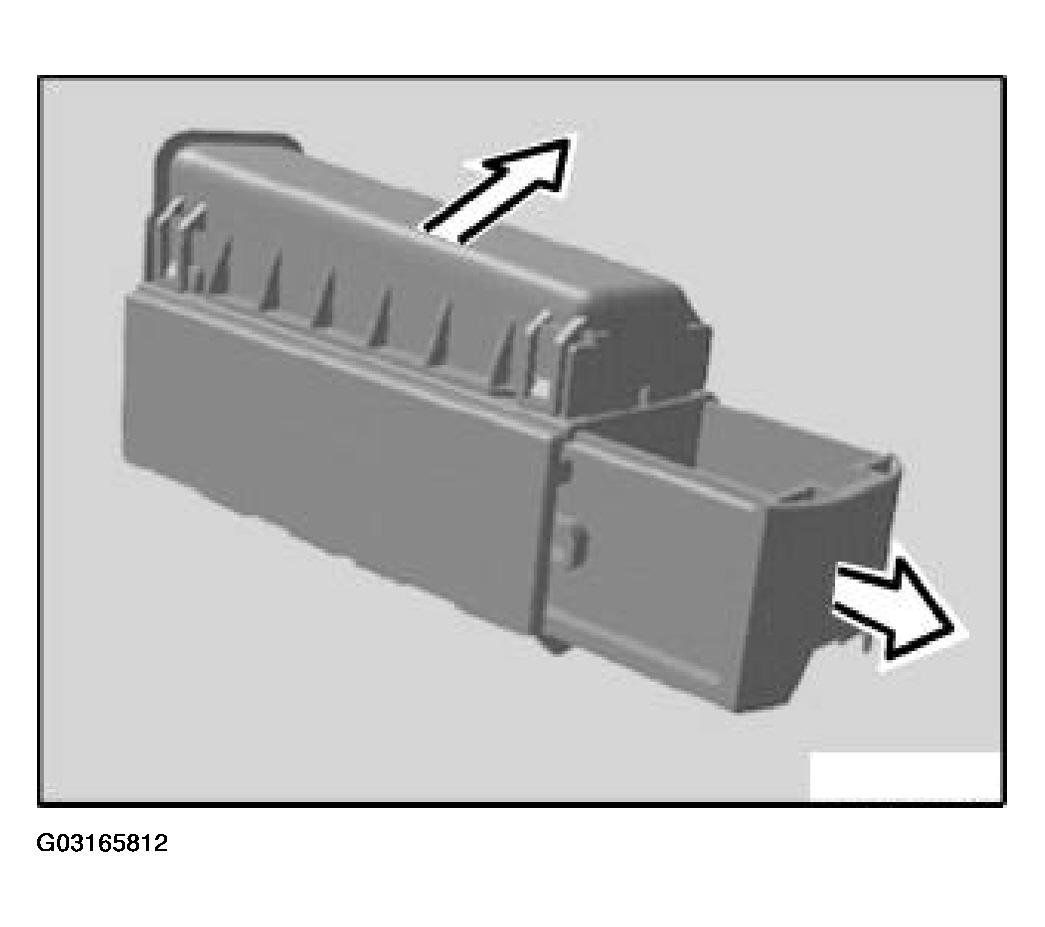

Open clip in direction of arrow and disconnect plug connection in direction of arrow.

Fig 3: Disconnecting Plug Connection In Direction Of Arrow

G03165812

Courtesy of BMW OF NORTH AMERICA, INC.

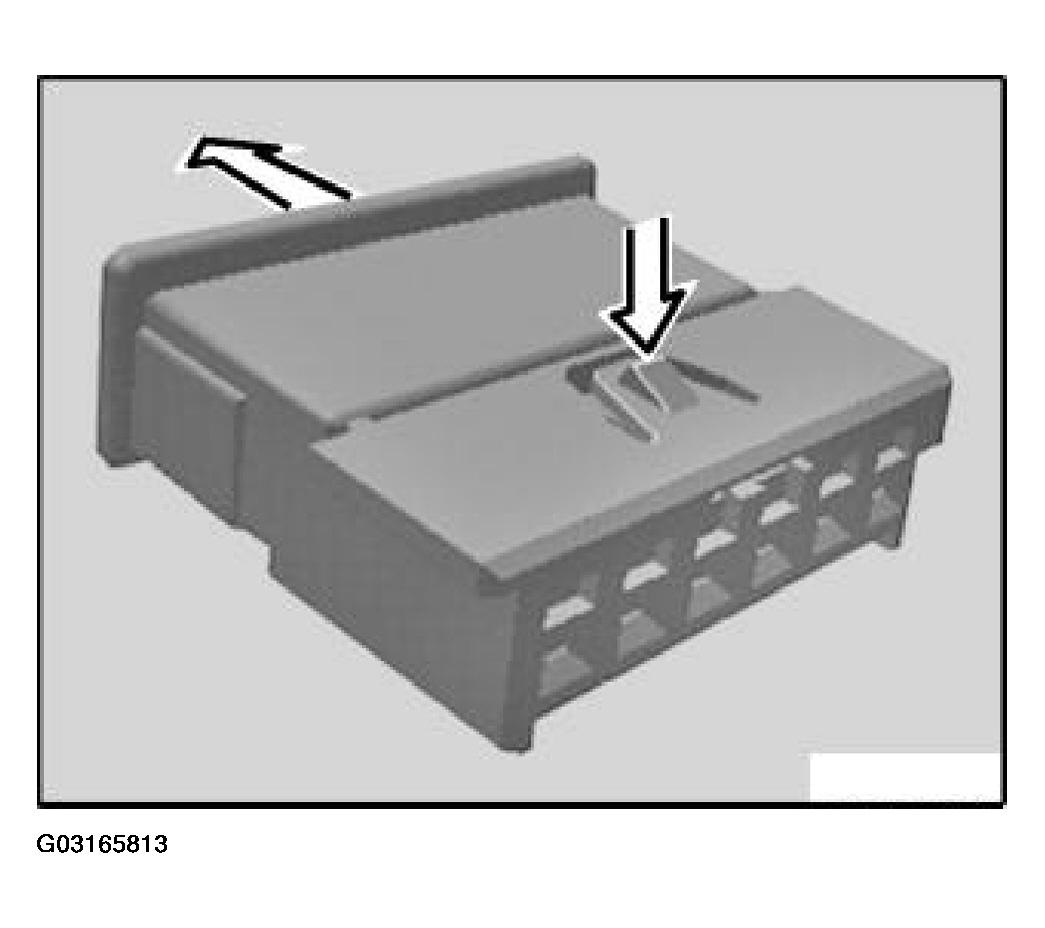

Press lock and disconnect plug connection in direction of arrow.

Fig 4: Pressing Lock And Disconnect Plug Connection In Direction Of Arrow

G03165813

Courtesy of BMW OF NORTH AMERICA, INC.

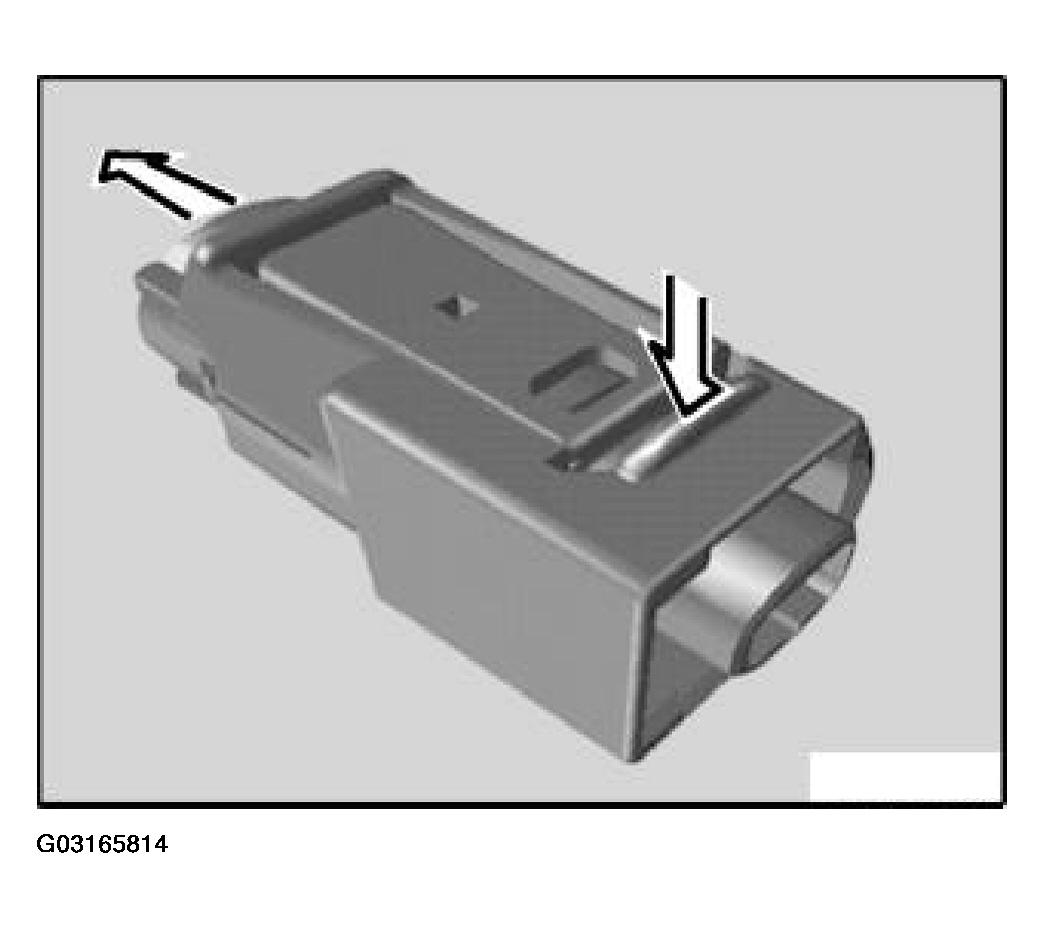

Press lock and disconnect plug connection in direction of arrow.

Fig 5: Pressing Lock And Disconnect Plug Connection In Direction Of Arrow

G03165814

Courtesy of BMW OF NORTH AMERICA, INC.

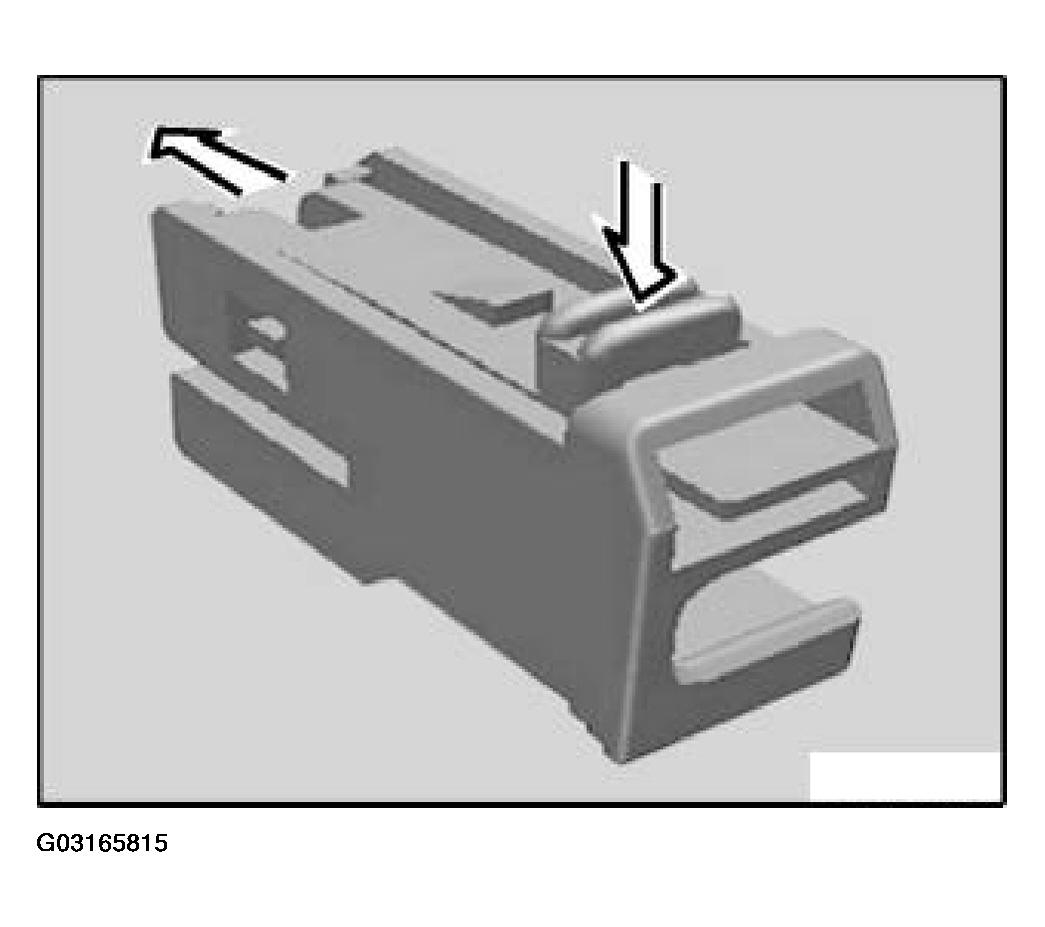

Press lock and disconnect plug connection in direction of arrow.

Fig 6: Pressing Lock And Disconnect Plug Connection In Direction Of Arrow

G03165815

Courtesy of BMW OF NORTH AMERICA, INC.

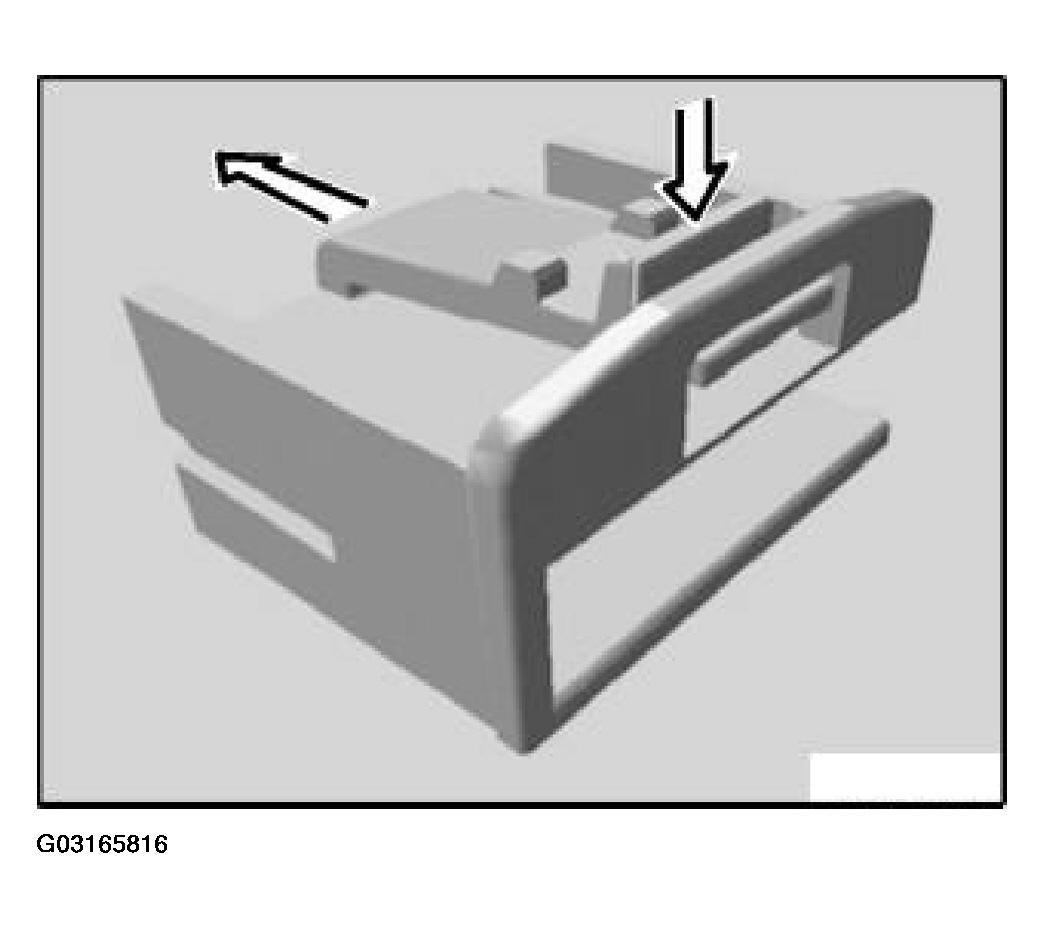

Press lock and disconnect plug connection in direction of arrow.

Fig 7: Pressing Lock And Disconnect Plug Connection In Direction Of Arrow

G03165816

Courtesy of BMW OF NORTH AMERICA, INC.

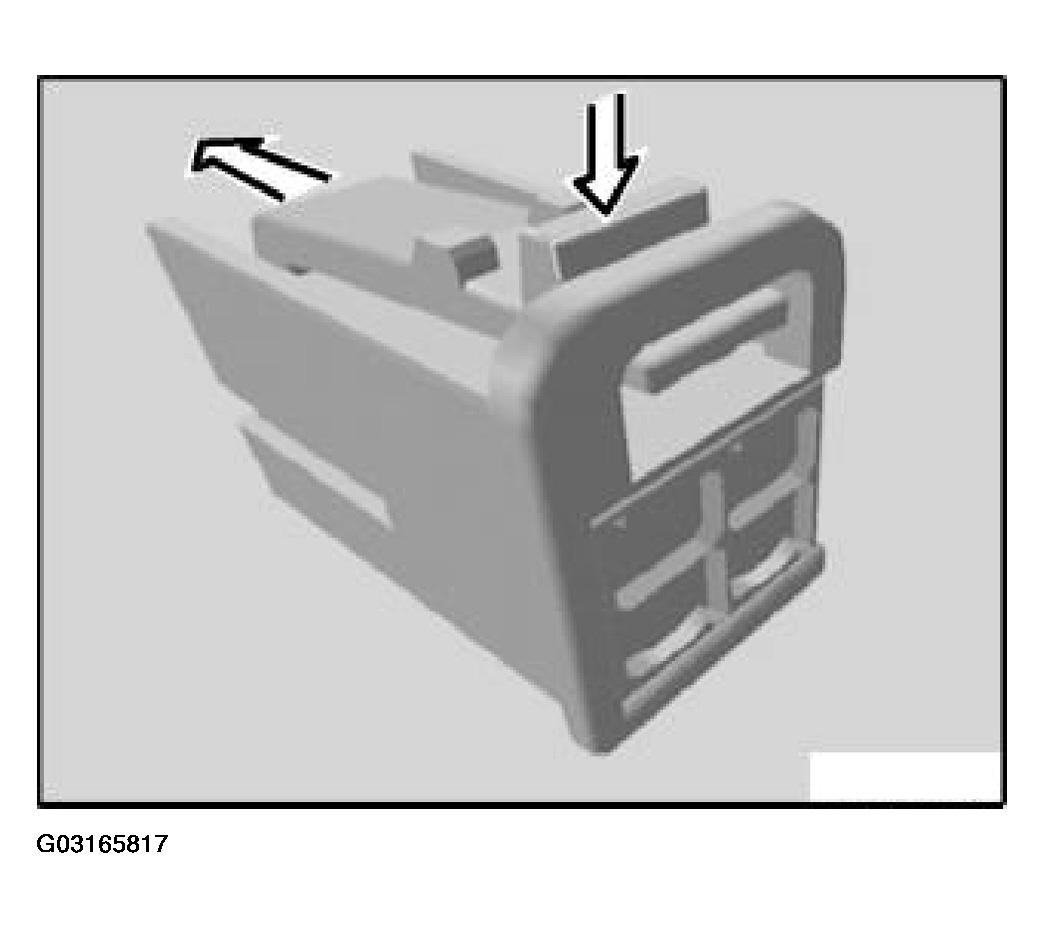

Press lock and disconnect plug connection in direction of arrow.

Fig 8: Pressing Lock And Disconnect Plug Connection In Direction Of Arrow

G03165817

Courtesy of BMW OF NORTH AMERICA, INC.

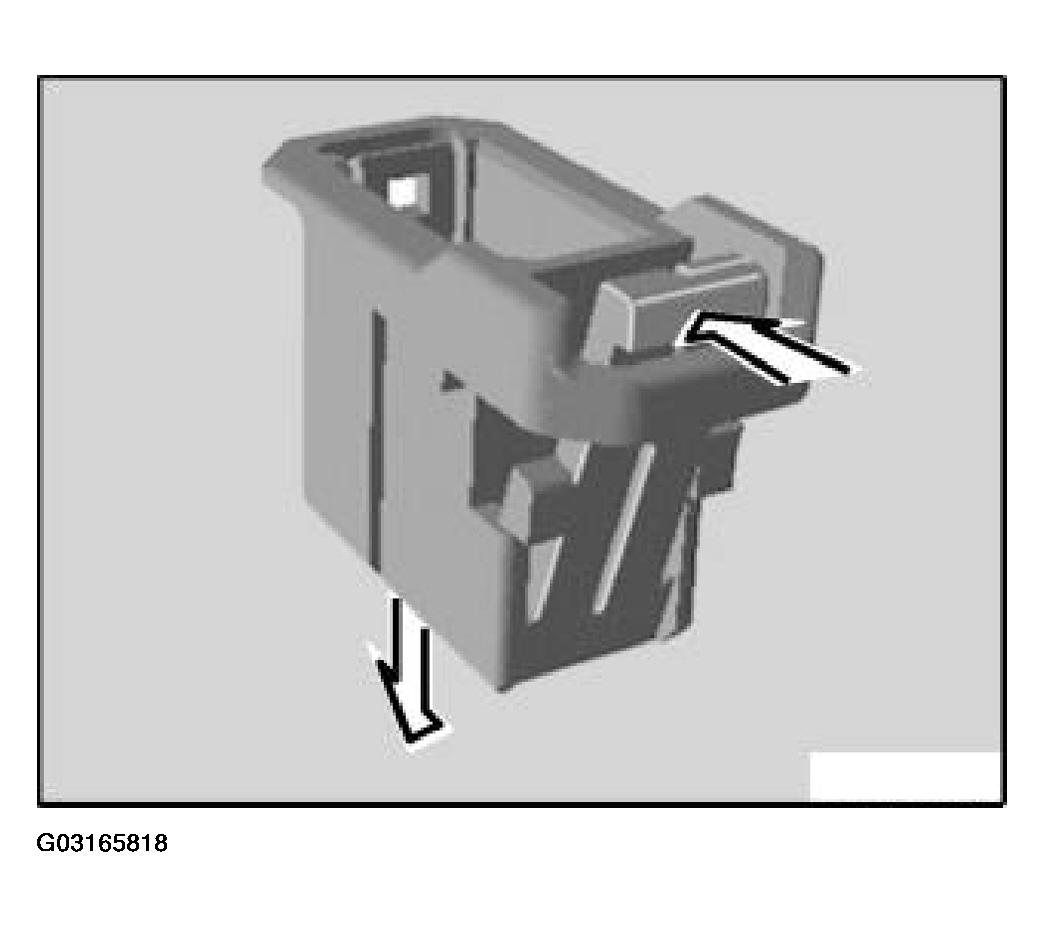

Press lock and disconnect plug connection in direction of arrow.

Fig 9: Pressing Lock And Disconnect Plug Connection In Direction Of Arrow

G03165818

Courtesy of BMW OF NORTH AMERICA, INC.
