Toe-In Adjustment: Front

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

If necessary, remove steering gear cover. Slacken clamping nut (2) while gripping tie rod end (1). See Fig 1 .
Remove tie rod clamp (4). Turn tie rod (3) to adjust toe-in to specification. See WHEEL ALIGNMENT SPECIFICATIONS .
Install tie rod clamp (4). Tighten tie rod clamping nut to specification while gripping tie rod end (1). See TORQUE SPECIFICATIONS .

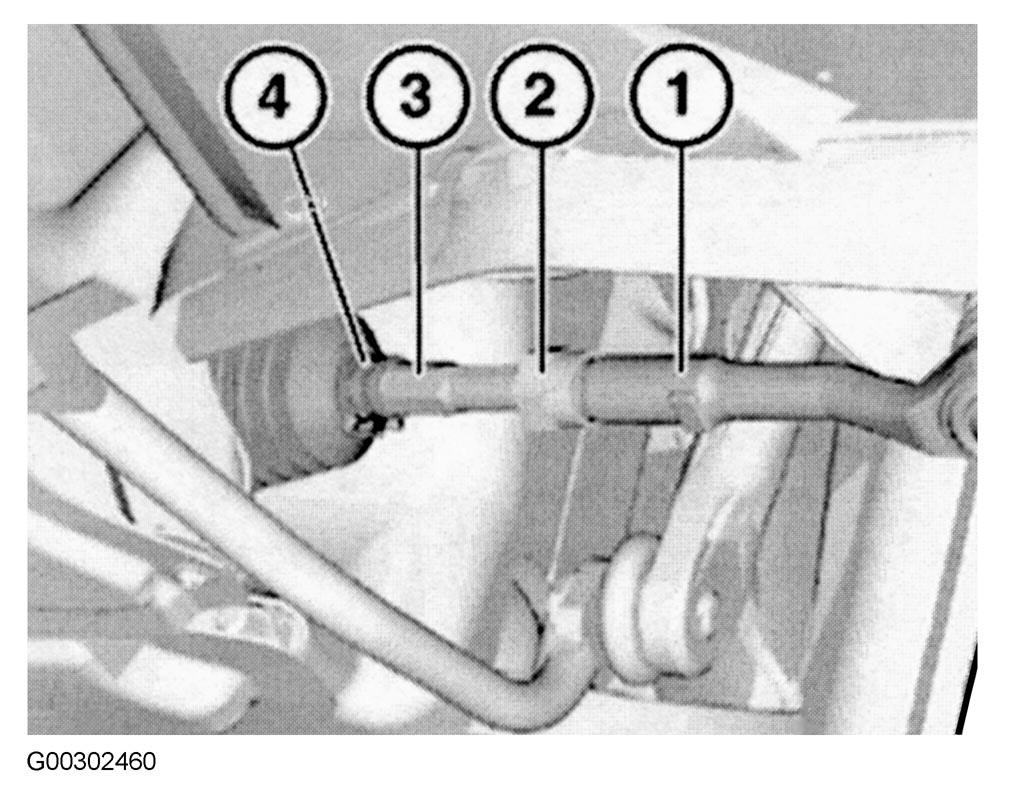

Fig 1: Adjusting Front Toe-In

Courtesy of BMW OF NORTH AMERICA, INC.
