64 11 ... Installing servodrive

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Installation:

If necessary, align shaft of flap(s) to be actuated to position of servodrive to be installed.

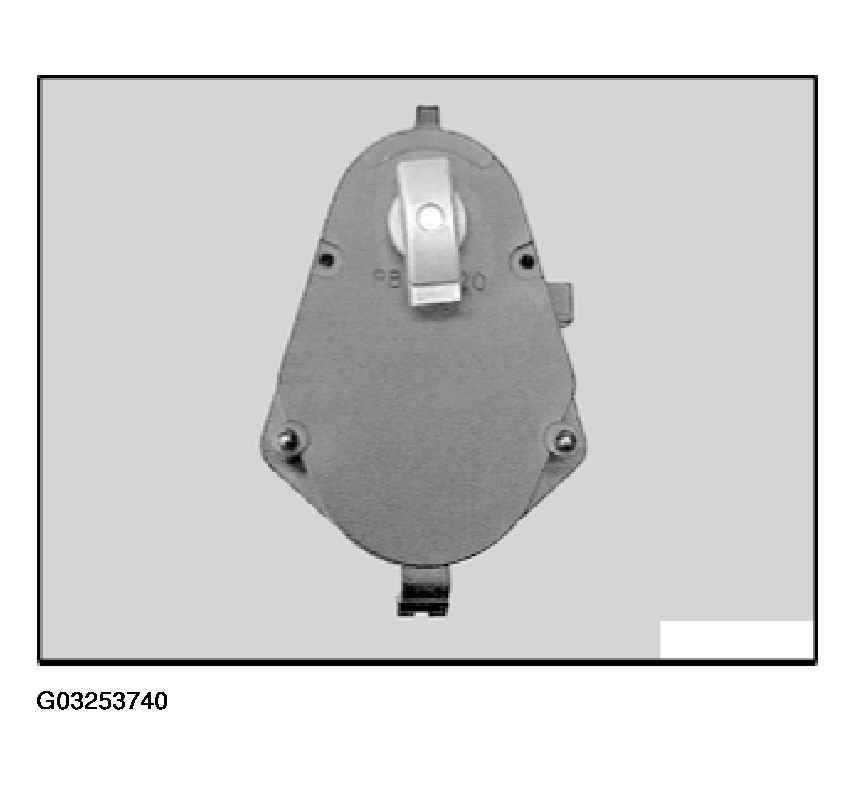

Fig 1: Aligning Shaft Of Flap
G03253740Courtesy of BMW OF NORTH AMERICA, INC.
