61 13... Unlocking and disconnecting different plug connections

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Examples of unlocking and disconnecting different plug connections.

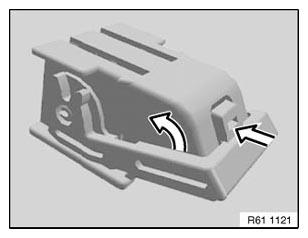

Press lock and open clip in direction of arrow.

Disconnect plug connection.

Fig 1: Disconnecting Plug Connection

G06213277

Courtesy of BMW OF NORTH AMERICA, INC.

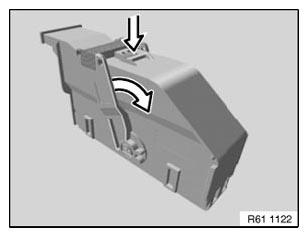

Press lock and open clip in direction of arrow.

Disconnect plug connection.

Fig 2: Pressing Lock And Open Clip

G06213278

Courtesy of BMW OF NORTH AMERICA, INC.

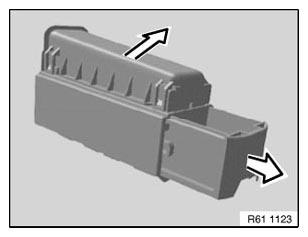

Open clip in direction of arrow and disconnect plug connection in direction of arrow.

Fig 3: Disconnecting Plug Connection

G06213279

Courtesy of BMW OF NORTH AMERICA, INC.

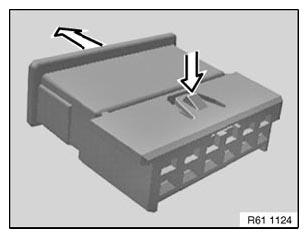

Press lock and disconnect plug connection in direction of arrow.

Fig 4: Press Lock And Disconnect Plug Connection (1 of 6)

G06213280

Courtesy of BMW OF NORTH AMERICA, INC.

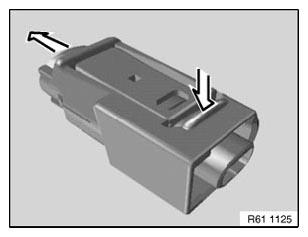

Press lock and disconnect plug connection in direction of arrow.

Fig 5: Press Lock And Disconnect Plug Connection (2 of 6)

G06213281

Courtesy of BMW OF NORTH AMERICA, INC.

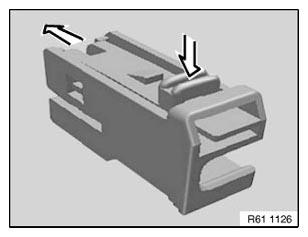

Press lock and disconnect plug connection in direction of arrow.

Fig 6: Press Lock And Disconnect Plug Connection (3 of 6)

G06213282

Courtesy of BMW OF NORTH AMERICA, INC.

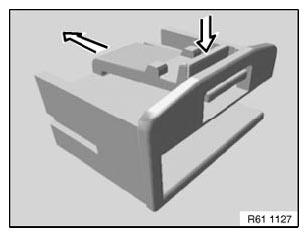

Press lock and disconnect plug connection in direction of arrow.

Fig 7: Press Lock And Disconnect Plug Connection (4 of 6)

G06213283

Courtesy of BMW OF NORTH AMERICA, INC.

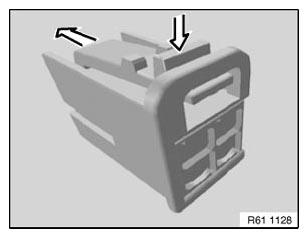

Press lock and disconnect plug connection in direction of arrow.

Fig 8: Press Lock And Disconnect Plug Connection (5 of 6)

G06213284

Courtesy of BMW OF NORTH AMERICA, INC.

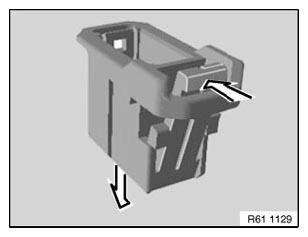

Press lock and disconnect plug connection in direction of arrow.

Fig 9: Press Lock And Disconnect Plug Connection (6 of 6)

G06213285

Courtesy of BMW OF NORTH AMERICA, INC.
