61 13... Base of tab connector housings

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

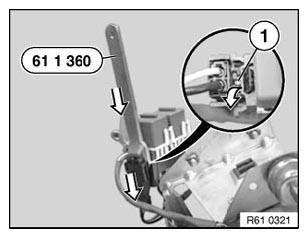

Unlock hook (1) with special tool 61 1 360 and slide plug housing downwards out of base.

Fig 1: Sliding Plug Housing
G06213309Courtesy of BMW OF NORTH AMERICA, INC.
