61 13... Unlocking and disconnecting different plug connections

Press lock and open clamp in direction of arrow.

Disconnect plug connection.

Fig 1: Opening Plug Connection Clamp

Courtesy of BMW OF NORTH AMERICA, INC.

Press lock and open clamp in direction of arrow.

Disconnect plug connection.

Fig 2: Opening Plug Connection Clamp

Courtesy of BMW OF NORTH AMERICA, INC.

Open clip in direction of arrow and disconnect plug connection in direction of arrow.

Fig 3: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Press lock and disconnect plug connection in direction of arrow.

Fig 4: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Press lock and disconnect plug connection in direction of arrow.

Fig 5: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Press lock and disconnect plug connection in direction of arrow.

Fig 6: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Press lock and disconnect plug connection in direction of arrow.

Fig 7: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Press lock and disconnect plug connection in direction of arrow.

Fig 8: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Press lock and disconnect plug connection in direction of arrow.

Fig 9: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Press the lock and detach plug connection.

Fig 10: Pressing Plug Connection Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Press the lock and detach plug connection.

Fig 11: Pressing Plug Connection Lock

Courtesy of BMW OF NORTH AMERICA, INC.

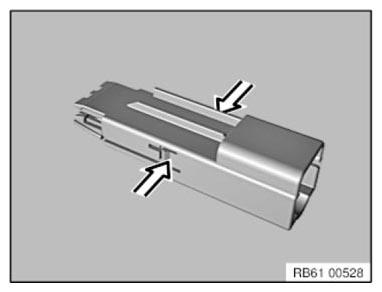

Press the lock on both sides and detach plug connection.

Fig 12: Pressing Plug Connection Locks

Courtesy of BMW OF NORTH AMERICA, INC.

Press the lock and detach plug connection.

Fig 13: Pressing Plug Connection Lock

Courtesy of BMW OF NORTH AMERICA, INC.
