Lower tailgate section

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Area specification applies to paint stage 1.

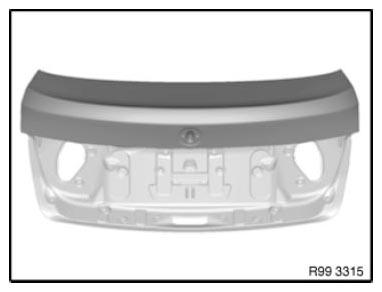

Fig 1: Identifying Paint Applying Areas On Lower Tailgate Section (Paint Stage 1)

Courtesy of BMW OF NORTH AMERICA, INC.

Area specification applies to paint stages 2 and 3.

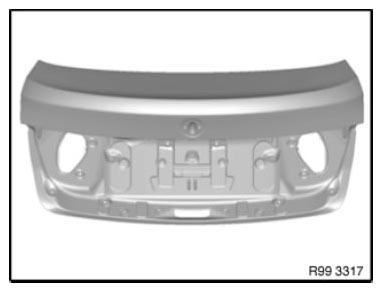

Fig 1: Identifying Paint Applying Areas On Lower Tailgate Section (Paint Stage 2 And 3)

Courtesy of BMW OF NORTH AMERICA, INC.

Additional area specification inner plate for paint stages 2 and 3.

Fig 1: Identifying Paint Applying Areas On Inner Lower Tailgate Section (Paint Stage 2 And 3)

Courtesy of BMW OF NORTH AMERICA, INC.
