00 11... Checking/topping up final drive oil
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
DANGER OF POISONING
if oil is ingested/absorbed through the skin!
RISK OF INJURY if oil comes into contact with eyes and skin!
RISK OF INJURY if oil comes into contact with eyes and skin!
IMPORTANT:
Risk of damage!
To avoid serious damage to the rear axle final drive, it is essential to use only APPROVED OIL in the rear axle final drive.
To avoid serious damage to the rear axle final drive, it is essential to use only APPROVED OIL in the rear axle final drive.

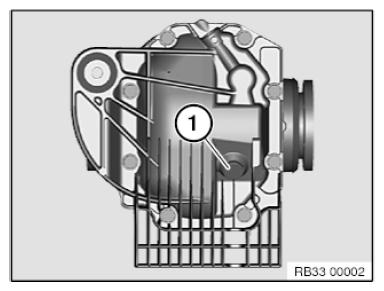

Open screw plug (1).
Tightening torque: see 2AZ in 33 11 REAR DIFFERENTIAL CASE WITH COVER
Check oil level.
If necessary, pour in final drive oil up to lower edge of opening for oil filler plug (1).
Installation note:
Replace screw plug (1) with O-ring.
