12 90... Removing and installing/replacing electronics box add-on

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION) .

NOTE: Follow instructions for REMOVING AND INSTALLING CONTROL UNITS

Necessary preliminary tasks:

Read fault memory.
Disconnect NEGATIVE BATTERY CABLE .

Release expanding rivet (1) and remove cover (2).

Installation note:

Replace damaged expanding rivet.

Holder of cover (2) must snap into place in suspension cross-brace during installation.

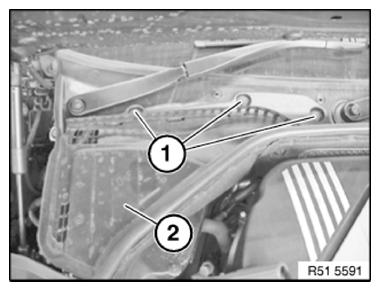

Fig 1: Identifying Cover And Expanding Rivet

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 12 90 4AZ .

Release clamp (2).

Remove cover (3) from supplementary electronics box.

Fig 2: Identifying Clamp, Screws And Lid

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip grommet hold-down device (1).

Detach rubber grommets (2) from electronics box add-on.

Installation note:

Make sure grommets are correctly seated (watertightness).

Release carrier plate (3) from lower section of supplementary electronics box (5) and set aside.

Release screw (4).

Tightening torque 12 90 2AZ .

Remove the lower section of the supplementary electronics box (5).

Fig 3: Identifying Grommet Hold-Down Device, Electronics Box Rubber Grommets, Carrier Plate And Supplementary Electronics Box

Courtesy of BMW OF NORTH AMERICA, INC.
