61 13 ... DME master relay connector

WARNING: This page is about a different car, the 2002 BMW Z3 and 2001 BMW Z3. However, it is still accessible from the selected car via links, so may be relevant.

Unlock locking flap (1) of corresponding cable.

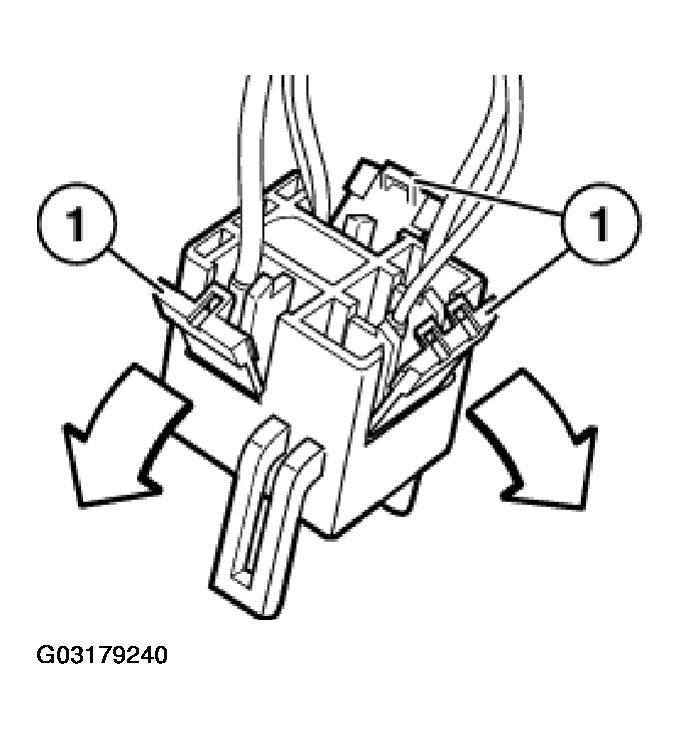

Fig 1: Unlocking Locking Flap Of Corresponding Cable

Courtesy of BMW OF NORTH AMERICA, INC.

With special tool 61 1 136 or 61 1 137 (ejector), press back arrester hook (2) of appropriate contact and pull out cable.

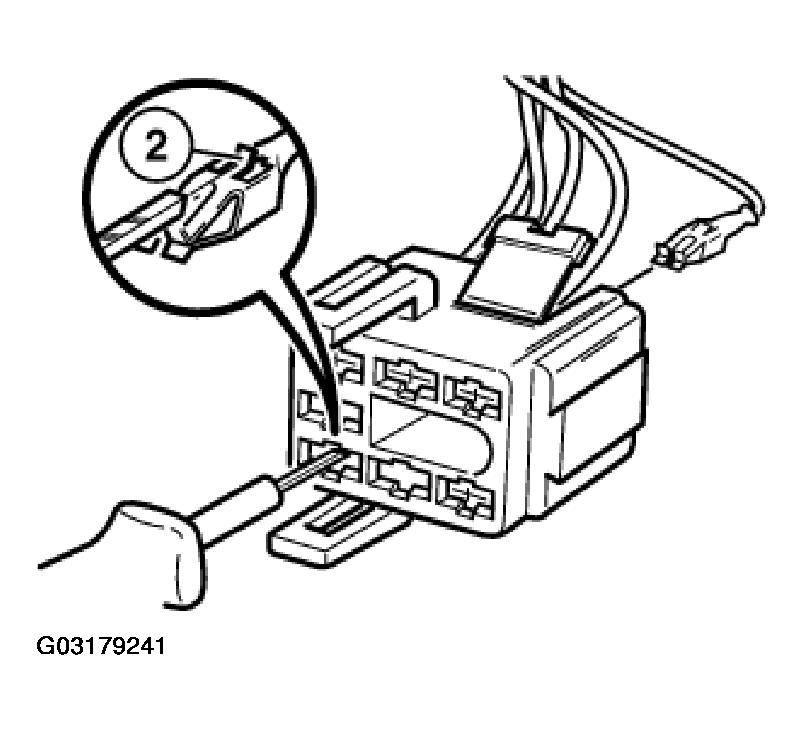

Fig 2: Pressing Back Arrester Hook Of Appropriate Contact Using Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.
