Minimum Set: Mechanical Tools
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2005 BMW 545i, 2005 BMW 530i, 2005 BMW 525i, 2004 BMW 545i, and 2004 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.
In conjunction with: 11 2 016 (M60, M62)
Note: For guide bearing in crankshaft, stem diameter 15 mm
Engine: M41, M42, M43, M43TU, M44, M47, M47TU, M50, M51, M52, M52TU, M54, M56, M57, M57TU, M60, M62, M70, M73, N40, N42, N45, N46, S50B30, S50B32, S54, S62, S85
Storage location: C26
SI number: 1 05 90(207)
Order number: 11 2 340

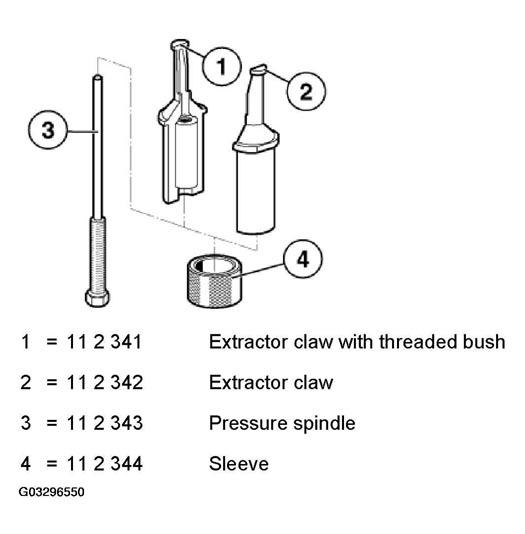

Extractor
Consisting of:
1 = 11 2 341 Extractor claw with threaded bush
2 = 11 2 342 Extractor claw
3 = 11 2 343 Pressure spindle
4 = 11 2 344 Sleeve
