41 00... Frame alignment control dimensions, body

Dimensions in mm.

Measurement tolerances:

• ≤ 1000 mm ± 1.5 mm
• ≥ 1000 mm ± 2.5 mm

The control points shown serve to check the body and the straightening attachment.

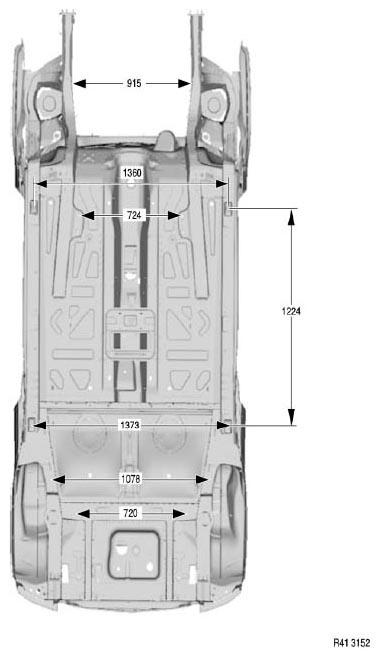

Underbody view 1

Fig 1: Identifying Body Frame Alignment Control Dimensions (Underbody View 1)

Courtesy of BMW OF NORTH AMERICA, INC.

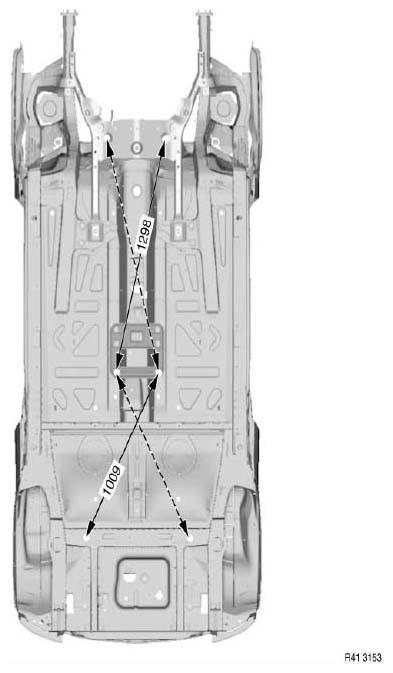

Underbody view 2

Fig 2: Identifying Body Frame Alignment Control Dimensions (Underbody View 2)

Courtesy of BMW OF NORTH AMERICA, INC.

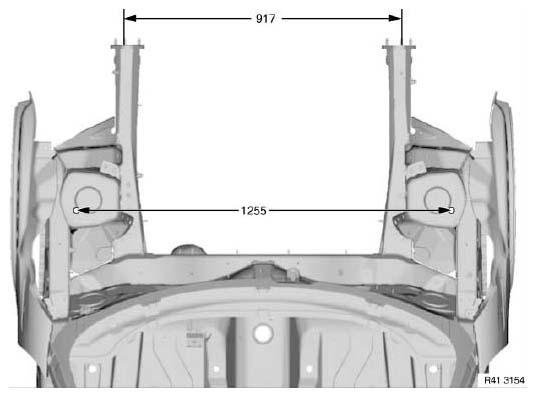

Top view, front end

Fig 3: Identifying Body Frame Alignment Control Dimensions (Top View, Front End)

Courtesy of BMW OF NORTH AMERICA, INC.
