61 13... Unlocking and disconnecting different plug connections

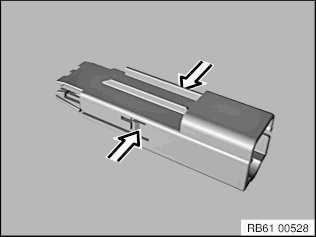

Press lock and open clip in direction of arrow.

Disconnect plug connection.

Fig 1: Pressing Lock And Open Clip

Courtesy of BMW OF NORTH AMERICA, INC.

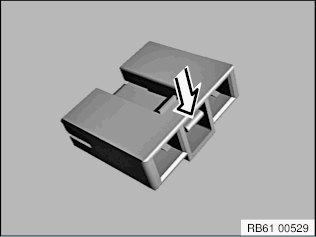

Press lock and open clip in direction of arrow.

Disconnect plug connection.

Fig 2: Pressing Lock And Open Clip

Courtesy of BMW OF NORTH AMERICA, INC.

Open clip in direction of arrow and disconnect plug connection in direction of arrow.

Fig 3: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Press lock and disconnect plug connection in direction of arrow.

Fig 4: Pressing Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Press lock and disconnect plug connection in direction of arrow.

Fig 5: Pressing Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Press lock and disconnect plug connection in direction of arrow.

Fig 6: Pressing Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Press lock and disconnect plug connection in direction of arrow.

Fig 7: Pressing Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Press lock and disconnect plug connection in direction of arrow.

Fig 8: Pressing Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Press lock and disconnect plug connection in direction of arrow.

Fig 9: Pressing Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Press the lock and detach plug connection.

Fig 10: Pressing Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Press the lock and detach plug connection.

Fig 11: Pressing Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Press the lock on both sides and detach plug connection.

Fig 12: Pressing Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Press the lock and detach plug connection.

Fig 13: Pressing Lock

Courtesy of BMW OF NORTH AMERICA, INC.
