31.... Front Axle Overview

WARNING: This page is about a different car, the 2010 BMW 135i, 2009 BMW 135i, and 2008 BMW 135i. However, it is still accessible from the selected car via links, so may be relevant.

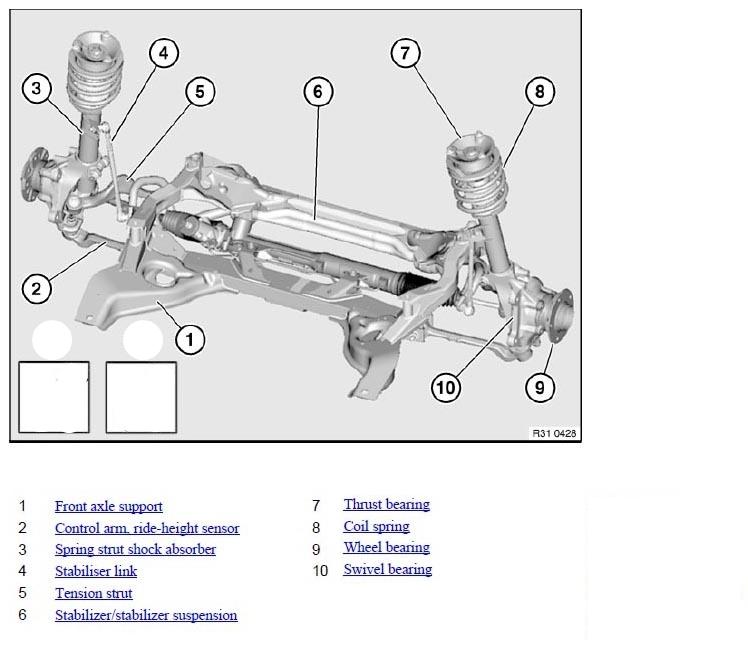

Fig 1: Identifying Front Axle Components

Courtesy of BMW OF NORTH AMERICA, INC.

See 00...... RAISING VEHICLE WITH TROLLEY JACK , 31 00... INSTRUCTIONS (CHASSIS COMPONENTS MADE OF ALUMINUM) or 31 00... NOTES ON REPAIRING THREADS .
