34 00... Checking brake discs

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2010 BMW 535xi, 2010 BMW 535i, 2009 BMW 535xi, 2009 BMW 535i, and 2008 BMW 535xi. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

34 1 280

Necessary preliminary tasks:

Remove wheels.

Checking thickness difference: Measure thickness difference within brake surfaces at 8 point (spread over the circumference) with a micrometer gauge. Compare measurement result with setpoint value. See BRAKES - TECHNICAL DATA .

Fig 1: Checking Rotor Thickness Difference

Courtesy of BMW OF NORTH AMERICA, INC.

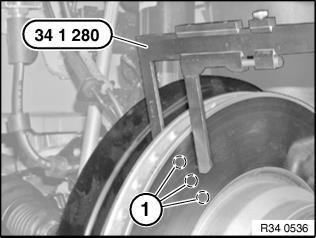

Check minimum brake disc thickness: Position special tool 34 1 280 at three measuring points in area (1) and measure. Compare measurement result and lowest value with setpoint value. See BRAKES - TECHNICAL DATA .

Fig 2: Checking Minimum Rotor Thickness

Courtesy of BMW OF NORTH AMERICA, INC.
