Oscilloscope Patterns and Waveforms

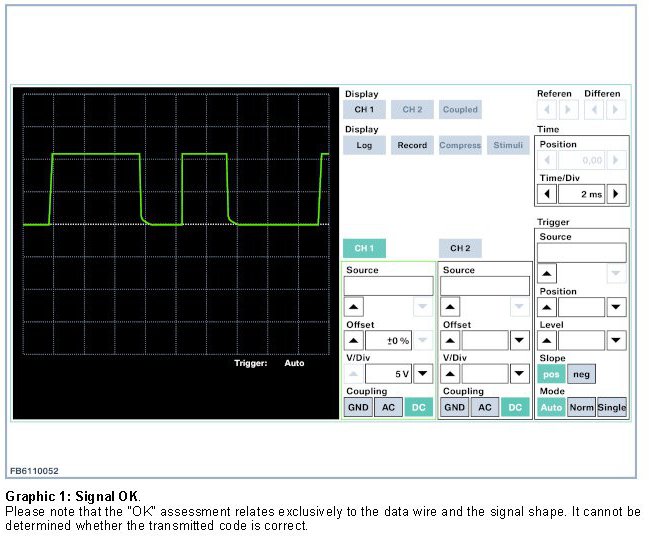

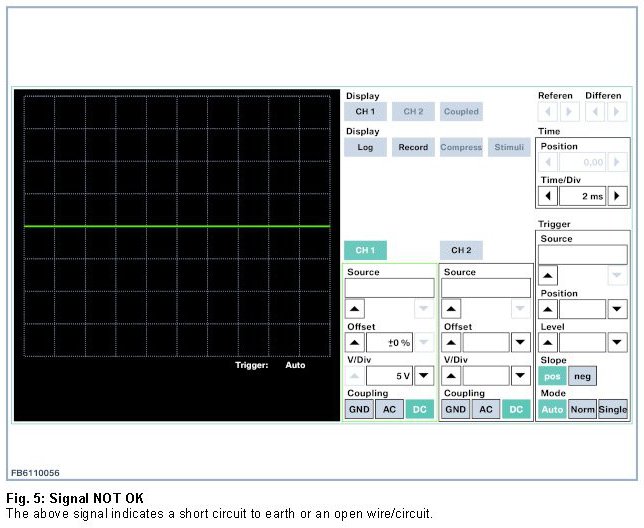

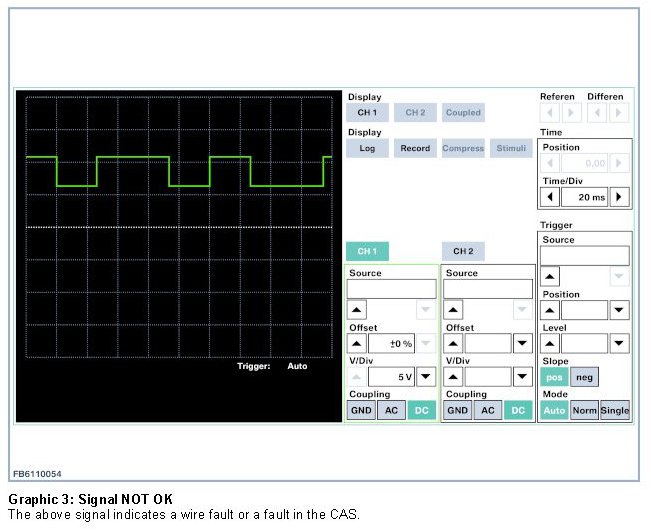

Comparison Images EWS Oscilloscope Measurement

IMPORTANT: The DME/DDE must remain connected for the duration of the test-measurement routine. The CAS control unit should not be enabled. It transmits a continuous EWS immobilizer signal whenever Terminal 15 is hot.
