Control Assembly: Service and Repair

64 11 367 Removing and installing (replacing) control panel for heating and air conditioning system







IMPORTANT: Read and comply with notes on protection against electrostatic discharge (ESD protection).







Necessary preliminary tasks:
- Remove centre console cover

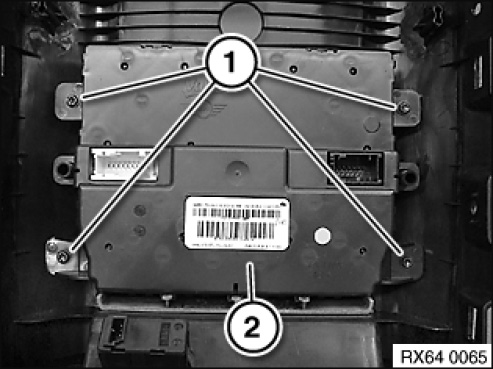

Release screws (1).
Remove control panel for heater - air conditioning system (2).







Replacement:
Carry out programming/encoding.
