Data Link Connector: Service and Repair

61 13 ... - Removing and installing/replacing OBD-II socket





Special tools required:
- 61 0 315

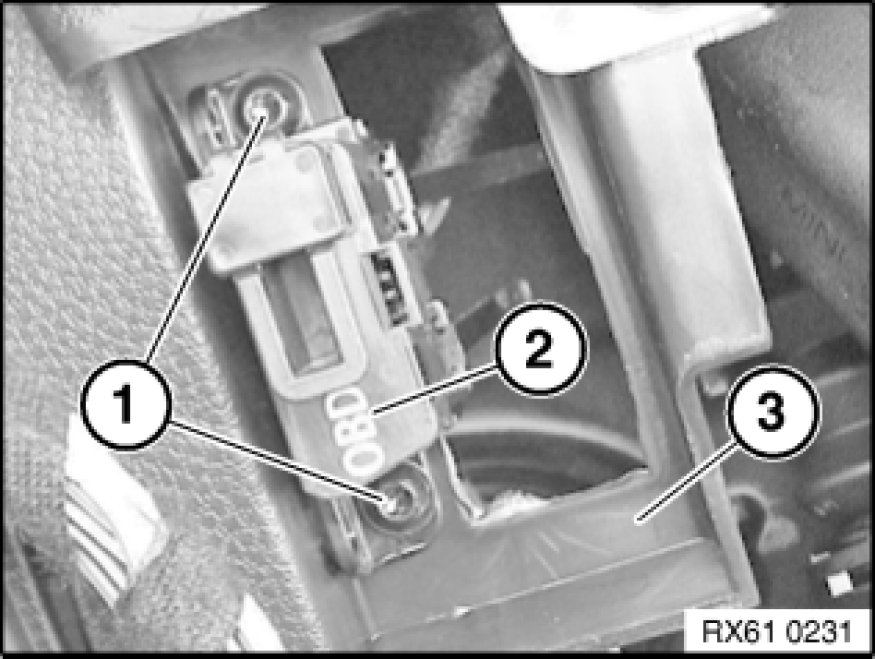

Release screws (1).

Remove OBD-II socket (2) from instrument panel lower section (3).





Remove OBD-II socket cover (2) from OBD-II socket (1).

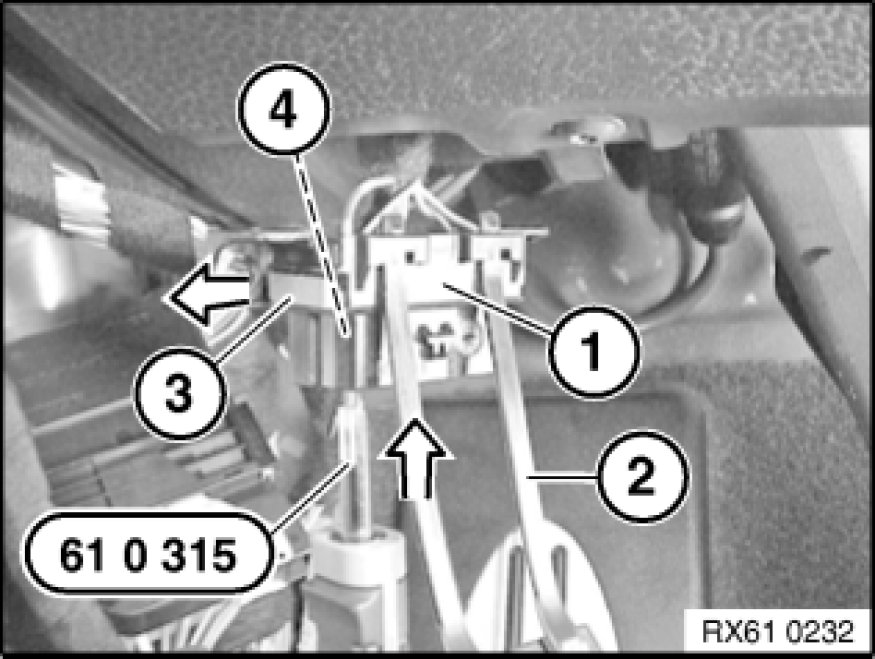

Unlock slide plate (3) with a suitable tool in direction of arrow.

Insert special tool 61 0 315 in OBD-II socket (1) in direction of arrow and press out associated flat spring contact (4). Press remaining flat spring contacts with special tool 61 0 315 out of OBD-II socket (1).

Installation:
Pay attention to pin assignment of OBD-II socket (1).

Make sure flat spring contacts and slide plate (3) are correctly engaged and seated in OBD-II socket (1).
