Variable Valve Timing Actuator Position Sensor: Service and Repair

11 37 030 Removing And Installing/Replacing Eccentric Shaft Sensor (N16)







Necessary preliminary tasks:
- Check function of Digital Engine Electronics.

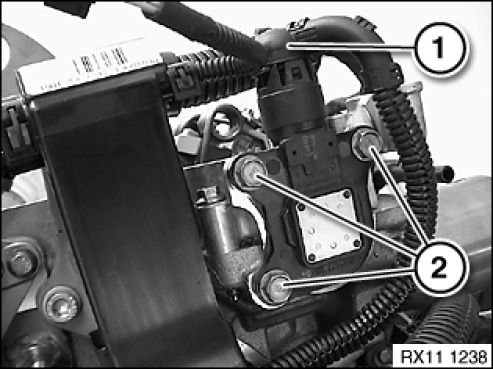

Disconnect plug connection (1).
Unfasten screws (2).
Tightening torque: 11 37 6AZ.







Assemble engine.
