Control Module: Service and Repair

24 61 500 Removing and installing or replacing transmission control unit

Clamp off battery.

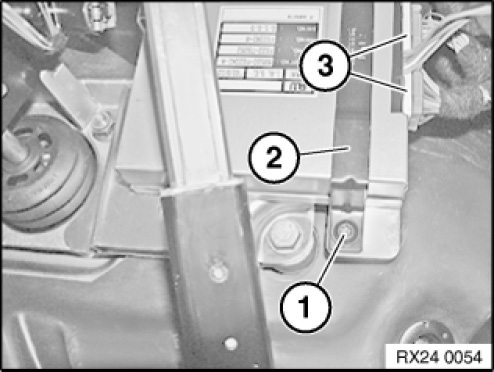

Release screw (1).
Detach retaining bracket (2) from control unit.
Tightening torque 24 61 1AZ.
Disconnect connector (3) and remove control unit from bracket.

IMPORTANT: The adaptation values must be reset after the control unit has been replaced.

NOTE: Graphic similar.
