Start / Stop Switch: Service and Repair

61 31 014 Removing And Installing/Replacing Start/Stop Switch







IMPORTANT:
Incorrectly installed start/stop switch may cause the start/stop switch or MSA button to jam.
In the case of a fault message "Jammed start/stop switch or MSA button" check before replacing whether the start/stop switch has been correctly installed in the cover and is de-energized.
If necessary install the existing start/stop switch again and perform a functional check.







Necessary preliminary tasks:
- Remove decorative strip on dashboard in middle

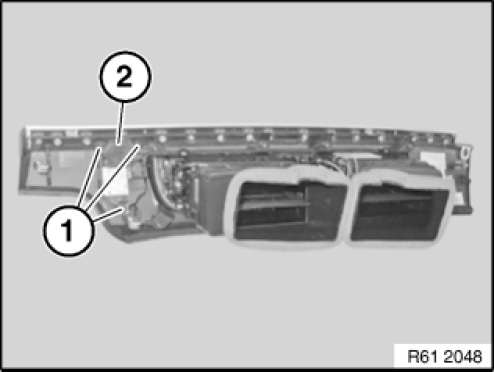

Release screws (1) and remove Start/Stop switch (2).







Installation note:
Only F10/F11/F12/F13/F18:

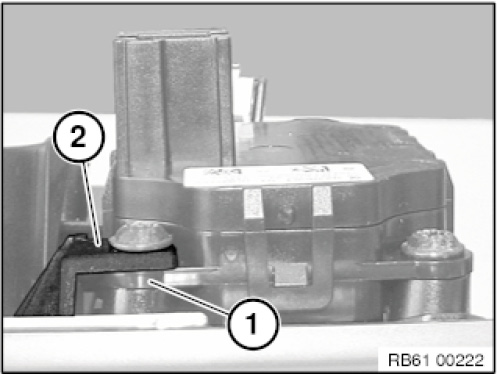

The tab of the start/stop switch (1) be installed below the tab (2).
