Intake Manifold: Notes

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, and 2005 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.

The intake system is a complete component constructed of magnesium in a shell type design and has separate manifold chambers for each cylinder bank.

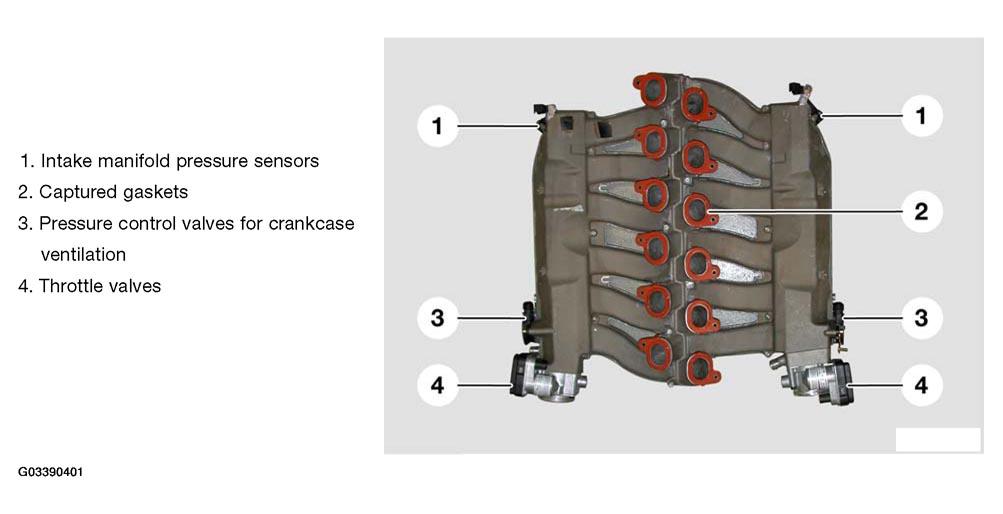

Fig 1: Identifying Intake Manifold

Courtesy of BMW OF NORTH AMERICA, INC.

The individual parts of the intake system are bonded and bolted to each other, providing considerable weight reduction (separating the shell halves is not permitted).

The entire intake system is protected against corrosion by a dip coating procedure. The fastening bolts of the add on parts are also coated and must be replaced in the event of damage, to prevent corrosion and pitting.

All of the gaskets (2) are secured by retainers (captured) to provide ease of installation. The intake system is isolated from the engine by rubber elements on the fastening bolts.

An intake manifold pressure sensor (1) is used for each cylinder bank. Recording the manifold differential pressure is necessary for the correct throttle position (synchronization) so that a manifold differential pressure of 50 mbar can be balanced on each bank.

Both sides of the induction system are fitted with a pressure control valve (3) for crankcase ventilation which is distributed to both banks.

NOTE: When replacing the spark plugs, it is necessary to remove the entire intake system to avoid damaging the spark plugs during installation. The spark plugs must be replaced every 100,000 miles in US vehicles.
