13 62 610 Replacing Crankshaft Sensor (S85)

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2010 BMW M6, 2010 BMW M5, 2009 BMW M6, 2009 BMW M5, and 2008 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove underbody protection
Remove right heat shields.

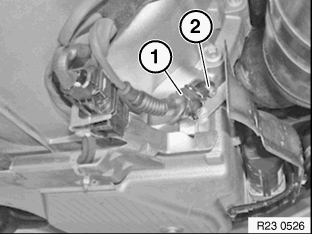

Unlock plug (1) and remove. Release screw (2). Remove crankshaft sensor.

Fig 1: Removing Crankshaft Sensor

Courtesy of BMW OF NORTH AMERICA, INC.
