31 .. .. Layout of spring strut shock absorber

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2010 BMW M6, 2010 BMW 650i, 2009 BMW M6, 2009 BMW 650i, and 2008 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.

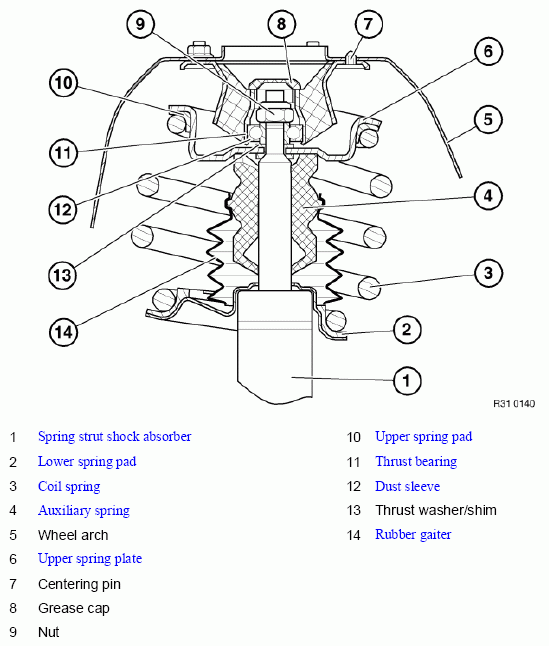

Fig 1: Identifying Spring Strut Shock Absorber Components
G04760316Courtesy of BMW OF NORTH AMERICA, INC.
