Limited Service Repairs
WARNING: This page does not describe the selected car, but rather 43 other vehicles, including the 2006 BMW M3, 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW M3, and 2005 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

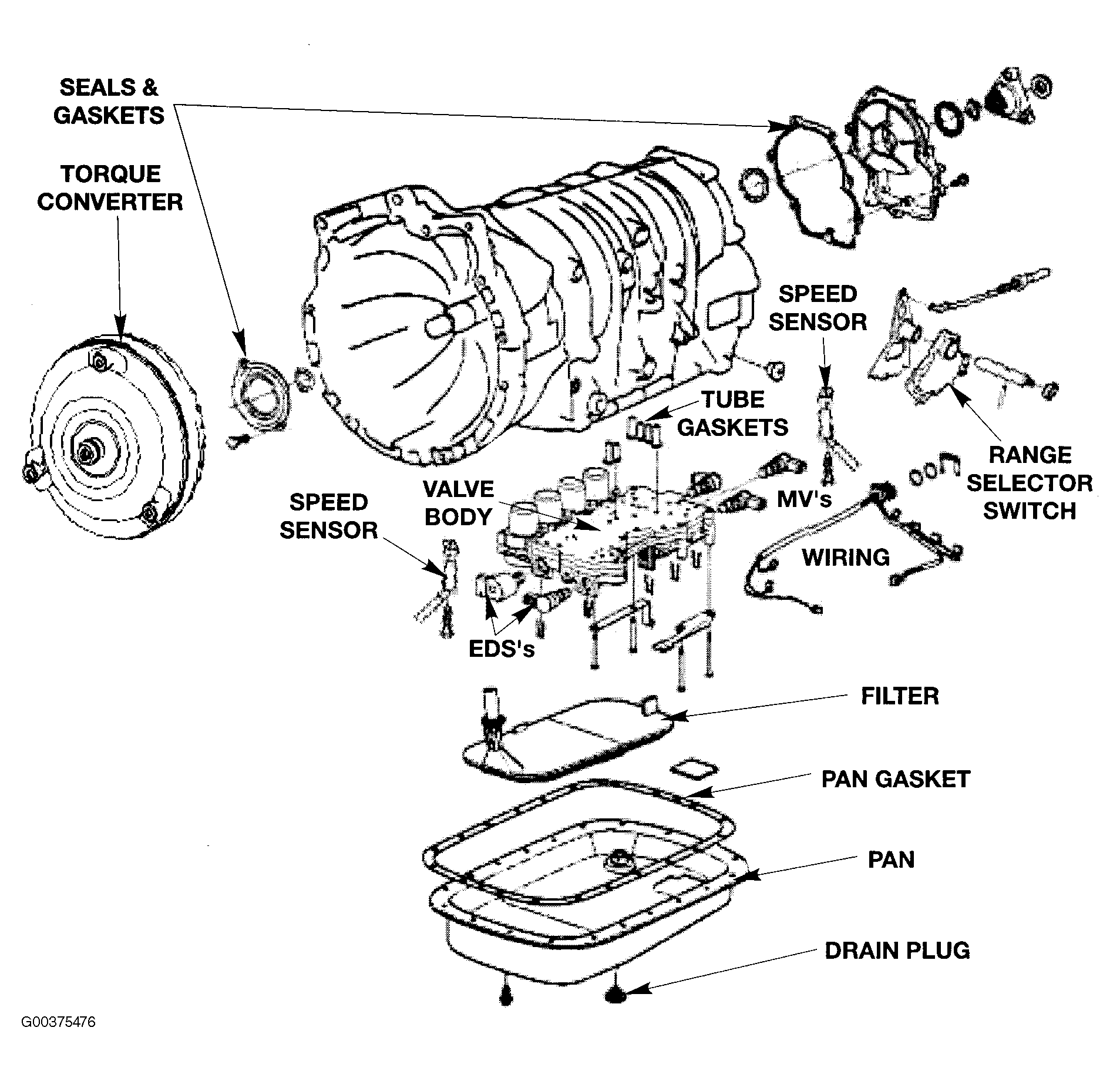

Minor electrical and mechanical repairs can be performed on the A5S 360R. See Fig 1 . The following are included in the repair scope of the A5S 360R:
- Service Parts: Oil filter unit, pan gasket, oil filler and drain plugs with seals.
- Oil Leaks: Radial seals and gaskets.
- Mechanical Faults: Torque converter core replacement, parking pawl mechanism.
- Hydraulic Control Faults - valve body replacement.
- Electrical Faults - shift solenoids, torque converter pressure regulator and main line oil pressure regulator, wiring harness (fluid temperature sensor), range selector switch, turbine and output speed sensors.
