63 11... Installing headlight repair kit
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2010 BMW 535xi, 2010 BMW 535i, 2009 BMW 535xi, 2009 BMW 535i, and 2008 BMW 535xi. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove headlight. See XENON HEADLIGHT or ADAPTIVE HEADLIGHT .
NOTE:
Damaged holder (1) can be replaced with the repair kit.
Replacement of headlight is not required !

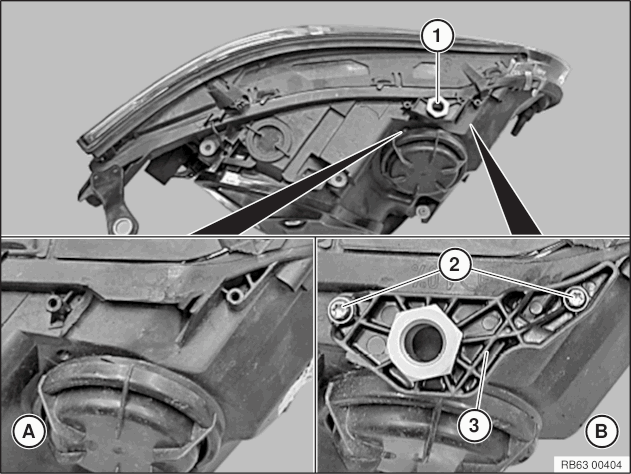

A: Remove the damaged holder (1) as shown.
B: Fit holder from repair kit (3) as illustrated and tighten screws (2).
After installation:
- Adjust HEADLIGHTS .
