Component Location Graphics

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 1998 BMW 750iL, 1998 BMW 740iL, 1998 BMW 740i, 1997 BMW 750iL, and 1997 BMW 740iL. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

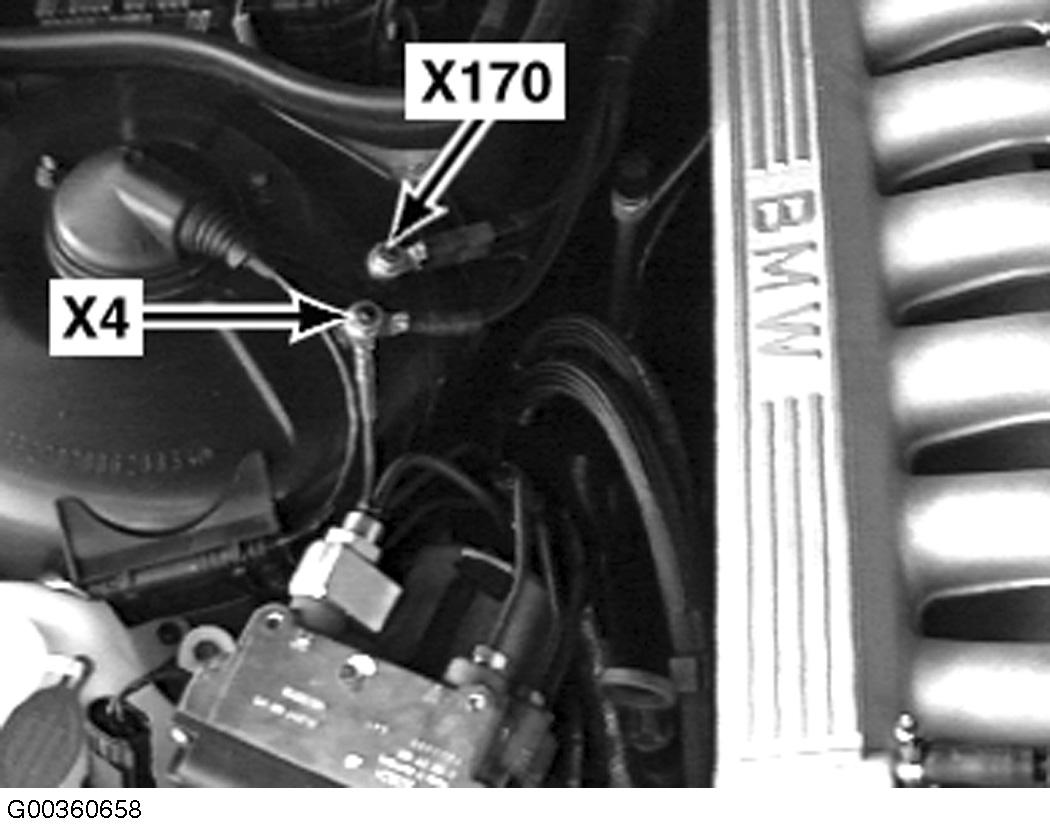

Fig 1: Right Side Of Engine Compartment

G00360658

Courtesy of BMW OF NORTH AMERICA, INC.

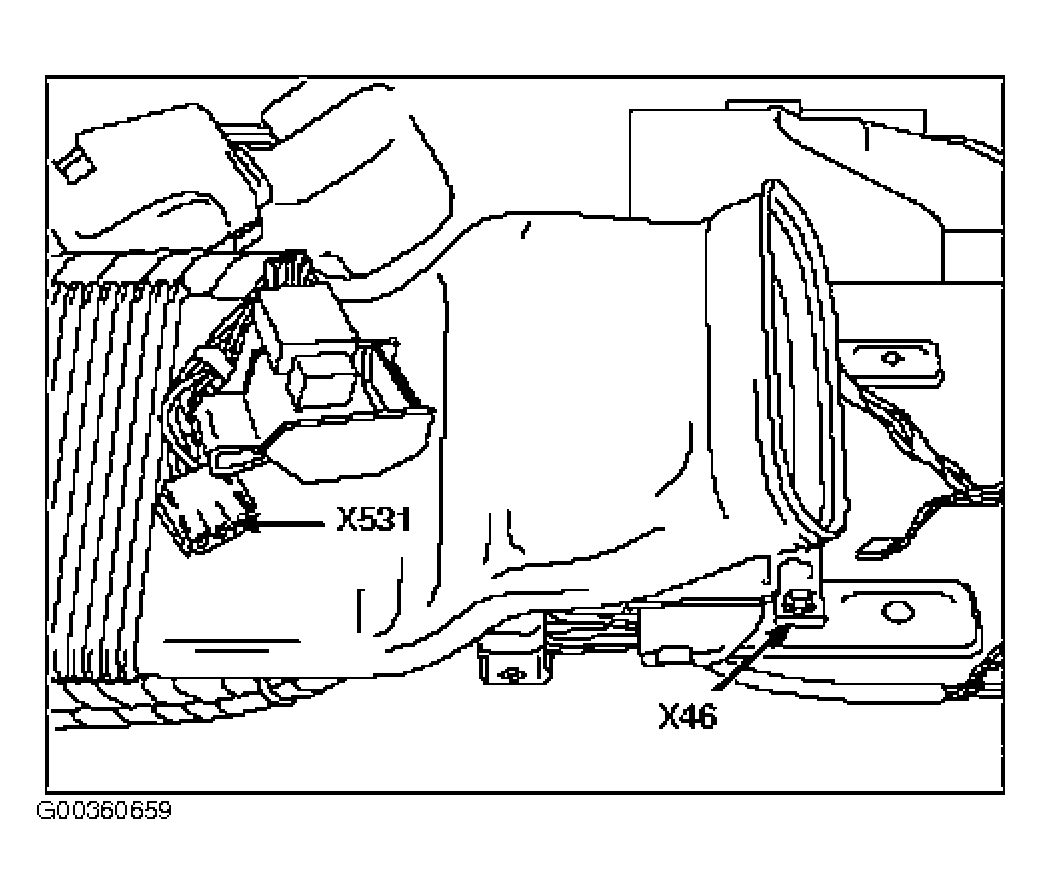

Fig 2: Rear Center Console

G00360659

Courtesy of BMW OF NORTH AMERICA, INC.

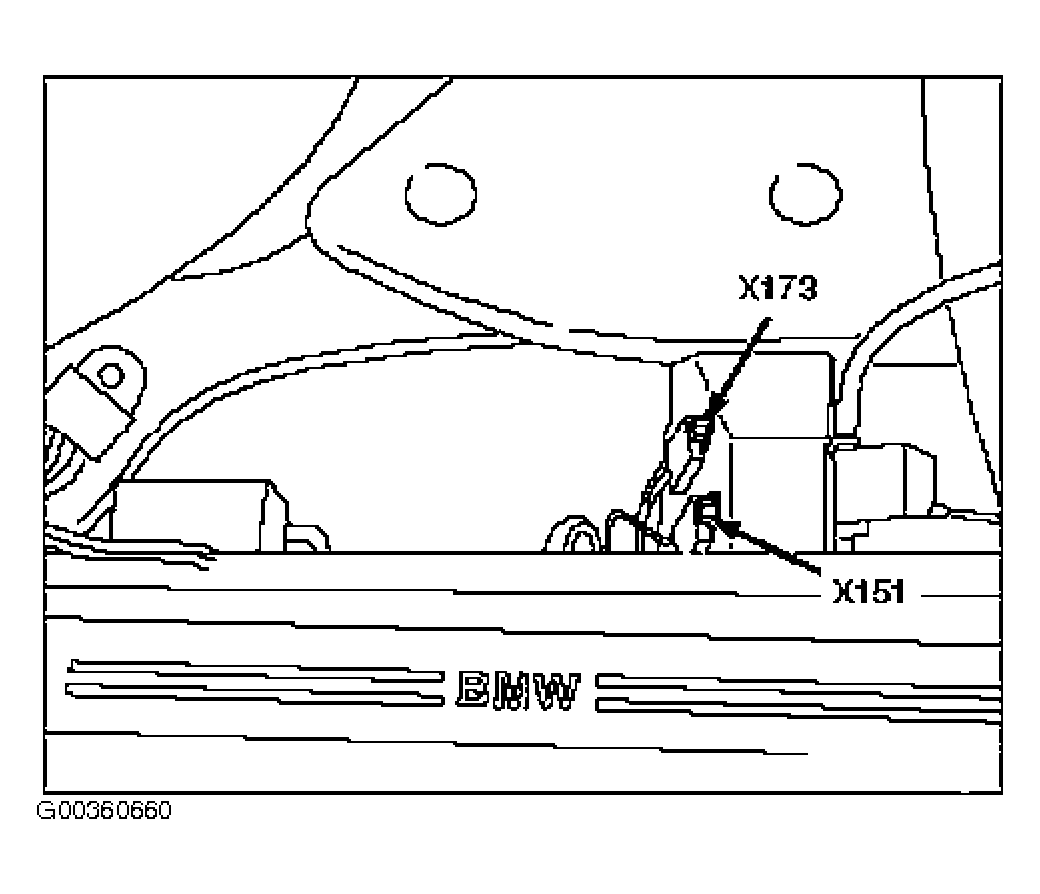

Fig 3: Left Door Sill

G00360660

Courtesy of BMW OF NORTH AMERICA, INC.

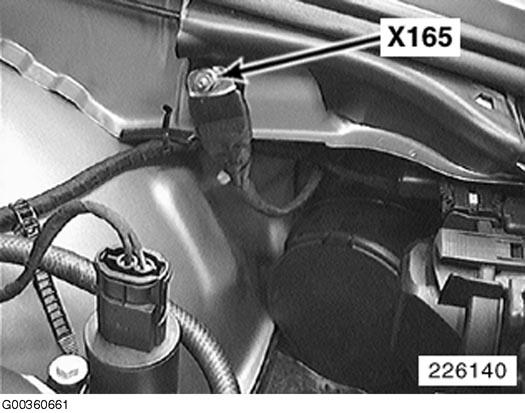

Fig 4: Left Front Of Engine Compartment

G00360661

Courtesy of BMW OF NORTH AMERICA, INC.

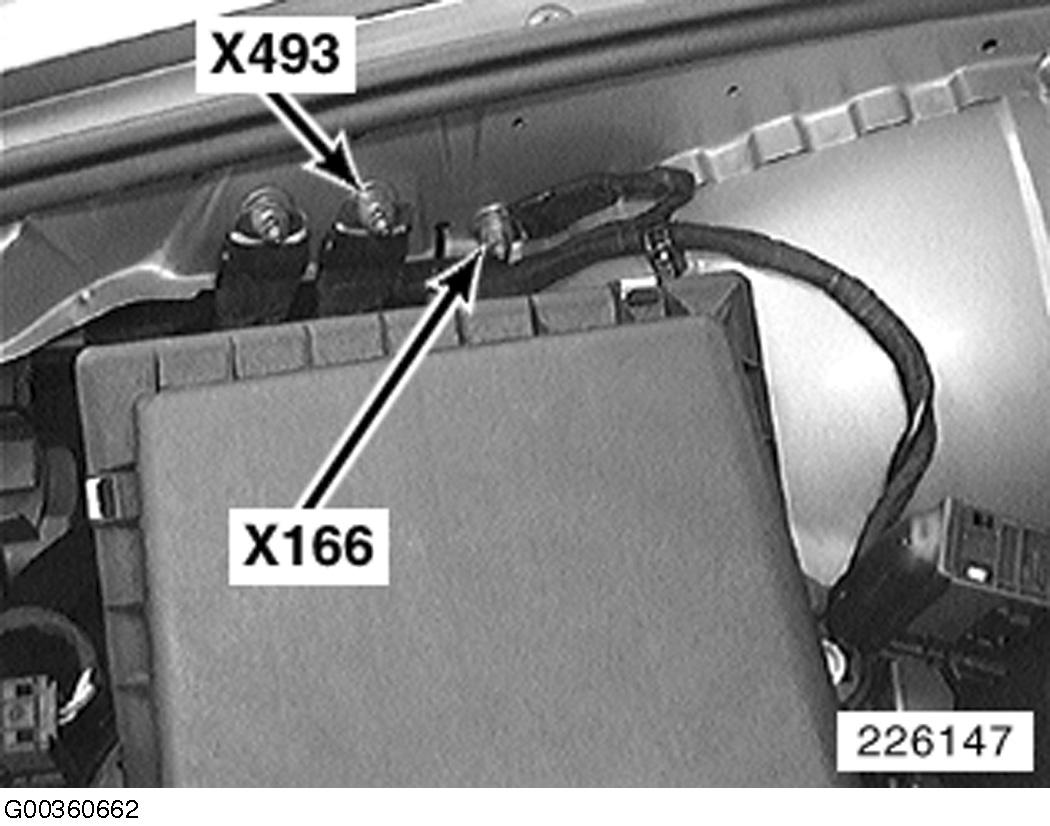

Fig 5: Right Front Of Engine Compartment

G00360662

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 6: Below Glove Box

G00360663

Courtesy of BMW OF NORTH AMERICA, INC.

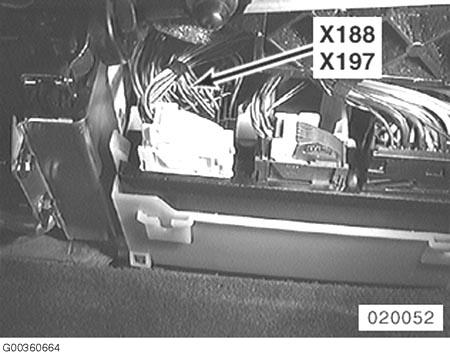

Fig 7: Below Glove Box

G00360664

Courtesy of BMW OF NORTH AMERICA, INC.

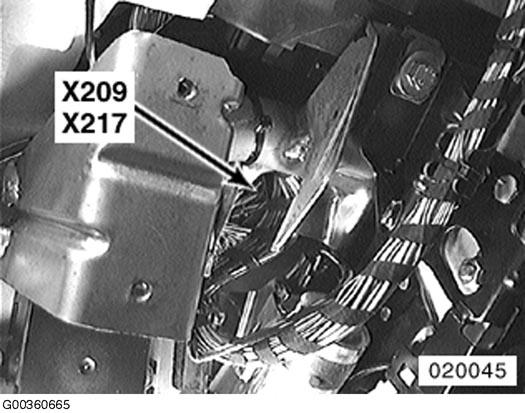

Fig 8: Below Left Side Of Dash

G00360665

Courtesy of BMW OF NORTH AMERICA, INC.

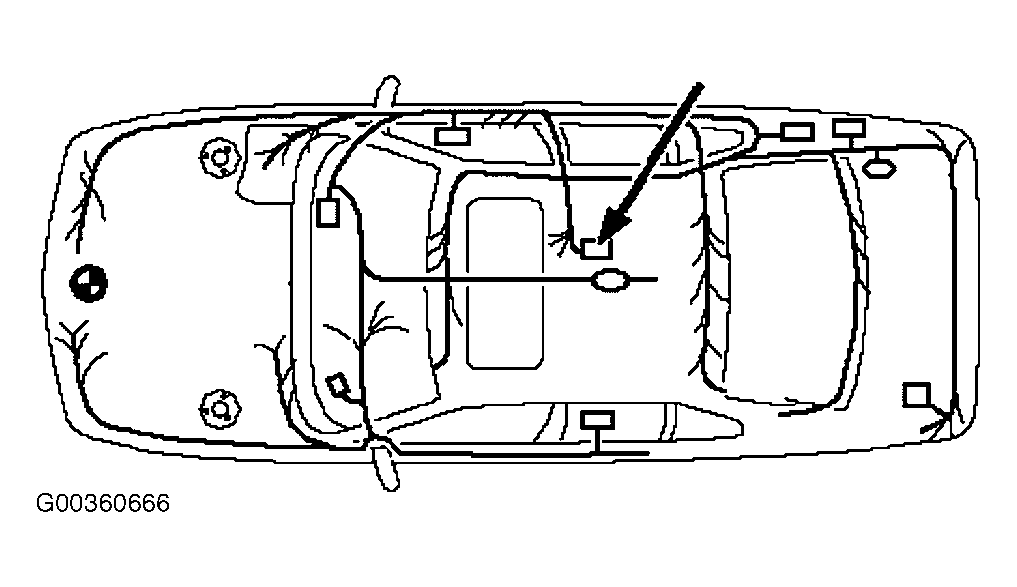

Fig 9: Rear Center Console

G00360666

Courtesy of BMW OF NORTH AMERICA, INC.

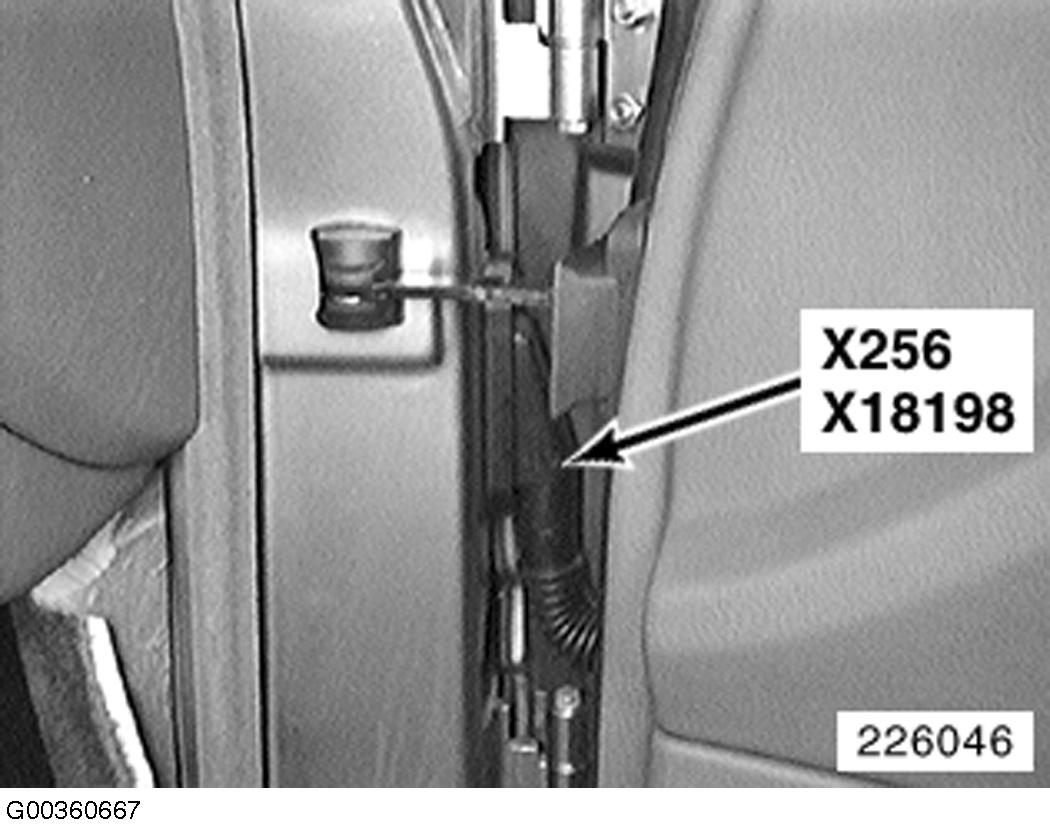

Fig 10: Lower Right "A" Pillar

G00360667

Courtesy of BMW OF NORTH AMERICA, INC.

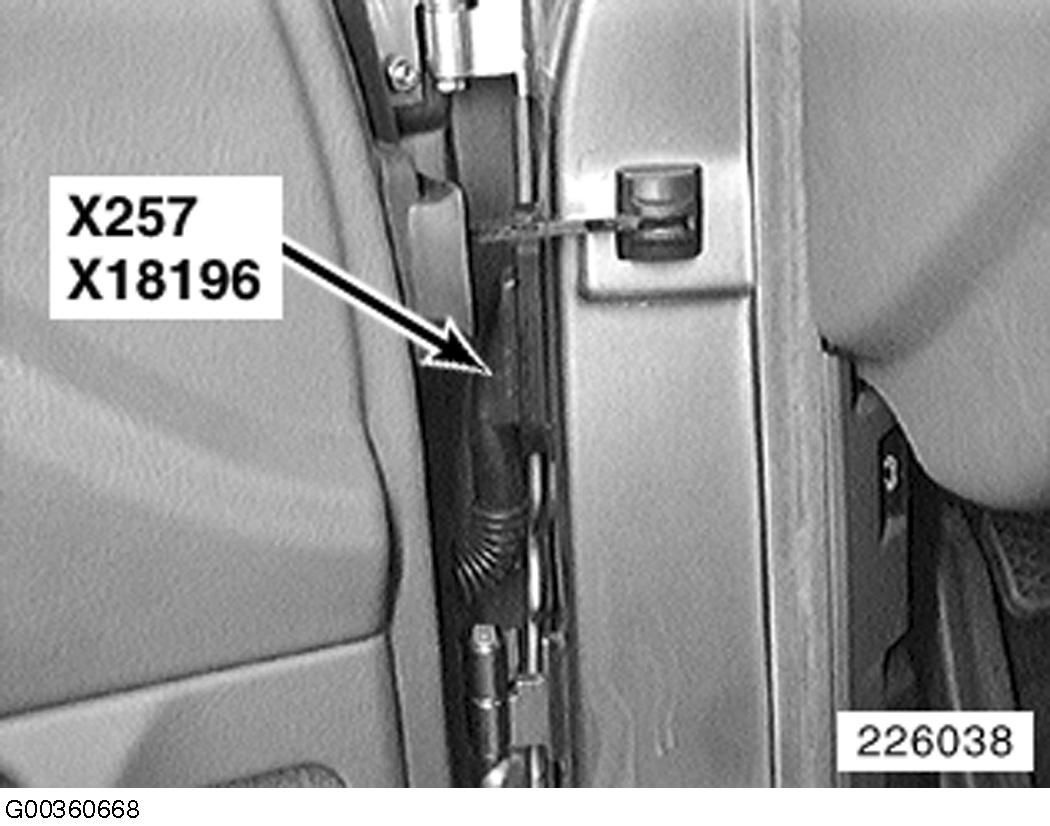

Fig 11: Lower Left "A" Pillar

G00360668

Courtesy of BMW OF NORTH AMERICA, INC.

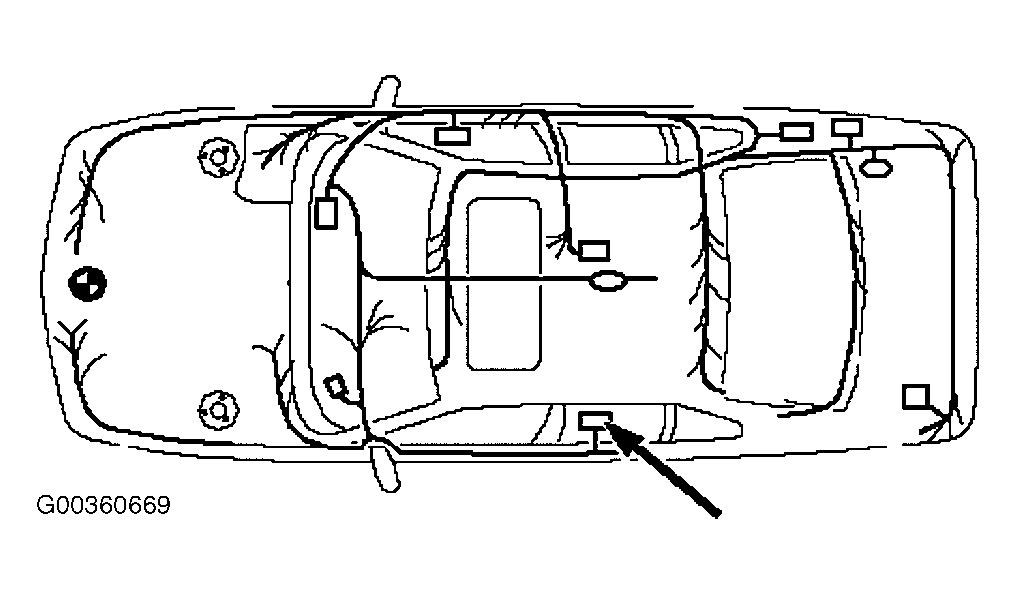

Fig 12: Left Rear Sill

G00360669

Courtesy of BMW OF NORTH AMERICA, INC.

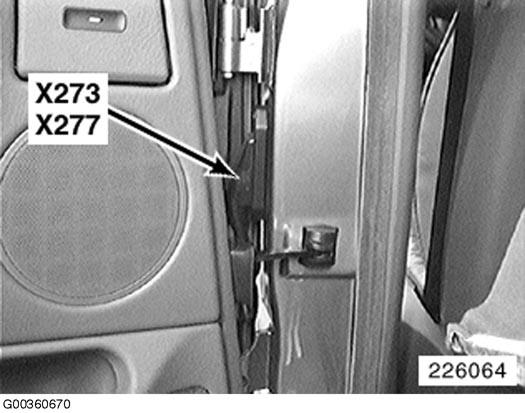

Fig 13: Lower Left "B" Pillar

G00360670

Courtesy of BMW OF NORTH AMERICA, INC.

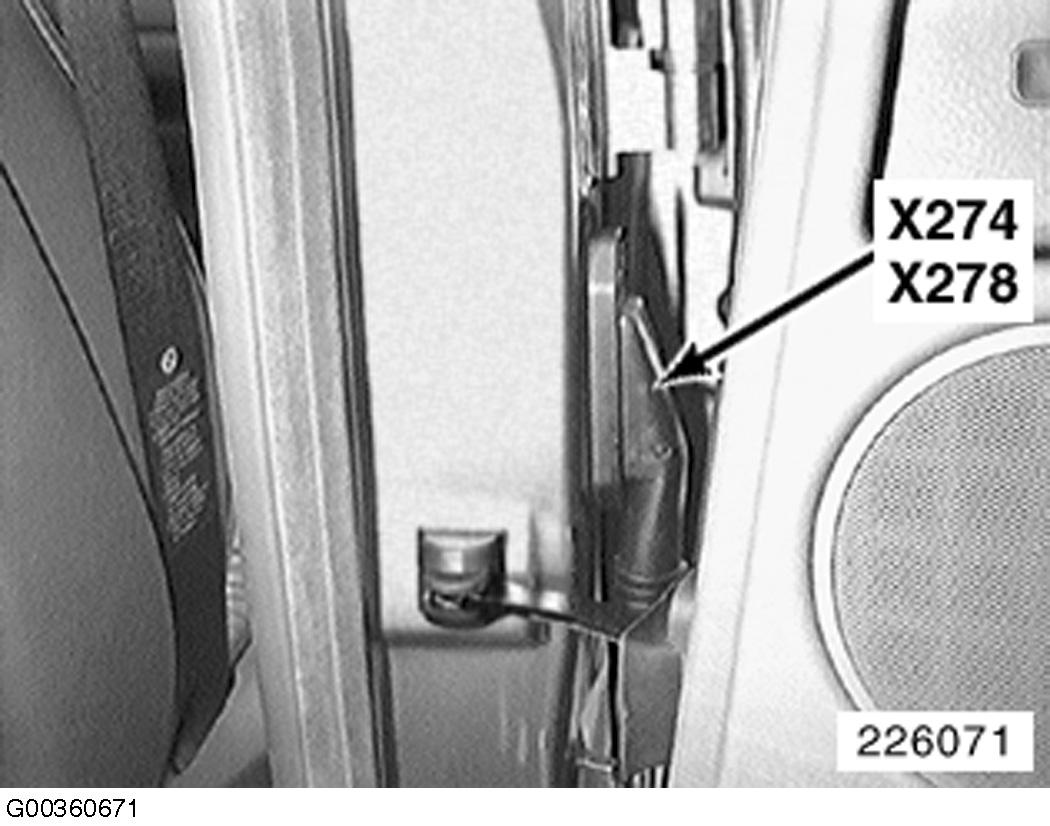

Fig 14: Lower Right "B" Pillar

G00360671

Courtesy of BMW OF NORTH AMERICA, INC.

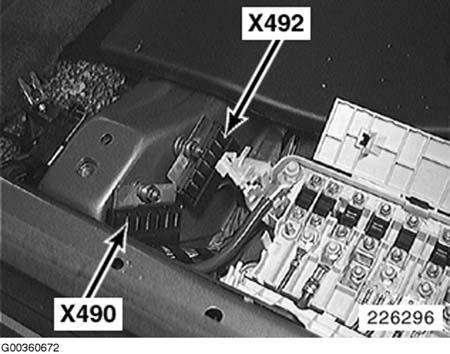

Fig 15: Right Door Sill

G00360672

Courtesy of BMW OF NORTH AMERICA, INC.

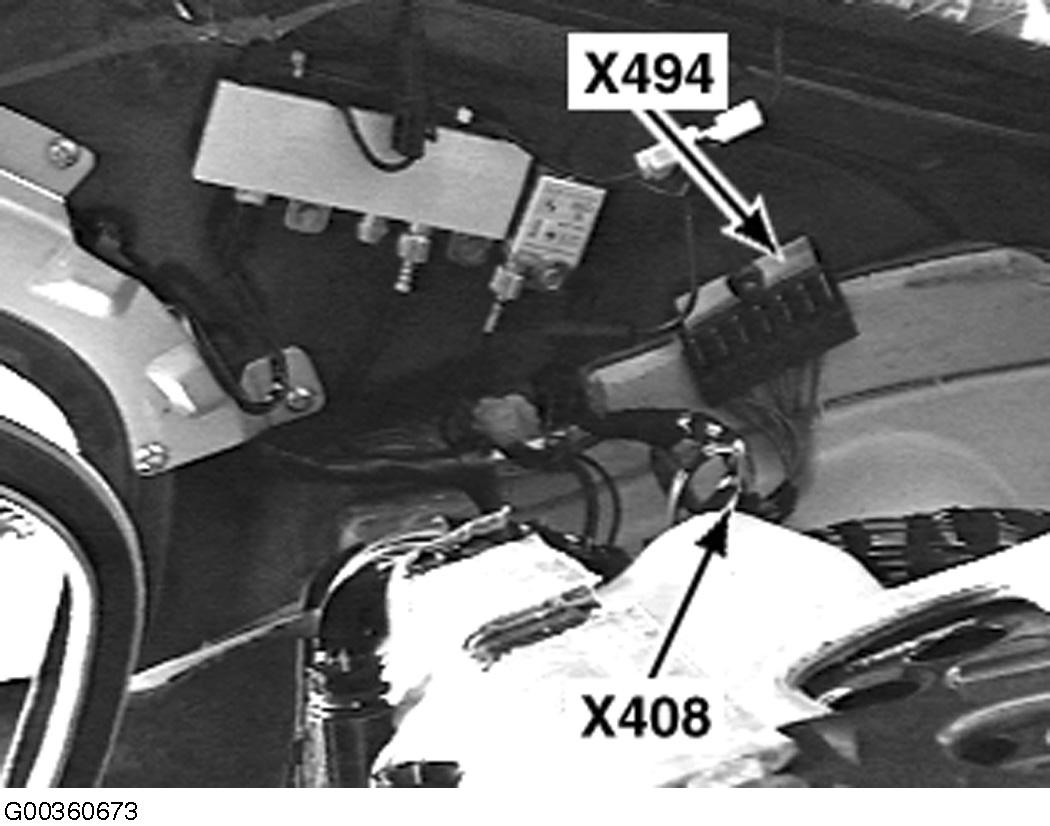

Fig 16: Right "C" Pillar

G00360673

Courtesy of BMW OF NORTH AMERICA, INC.

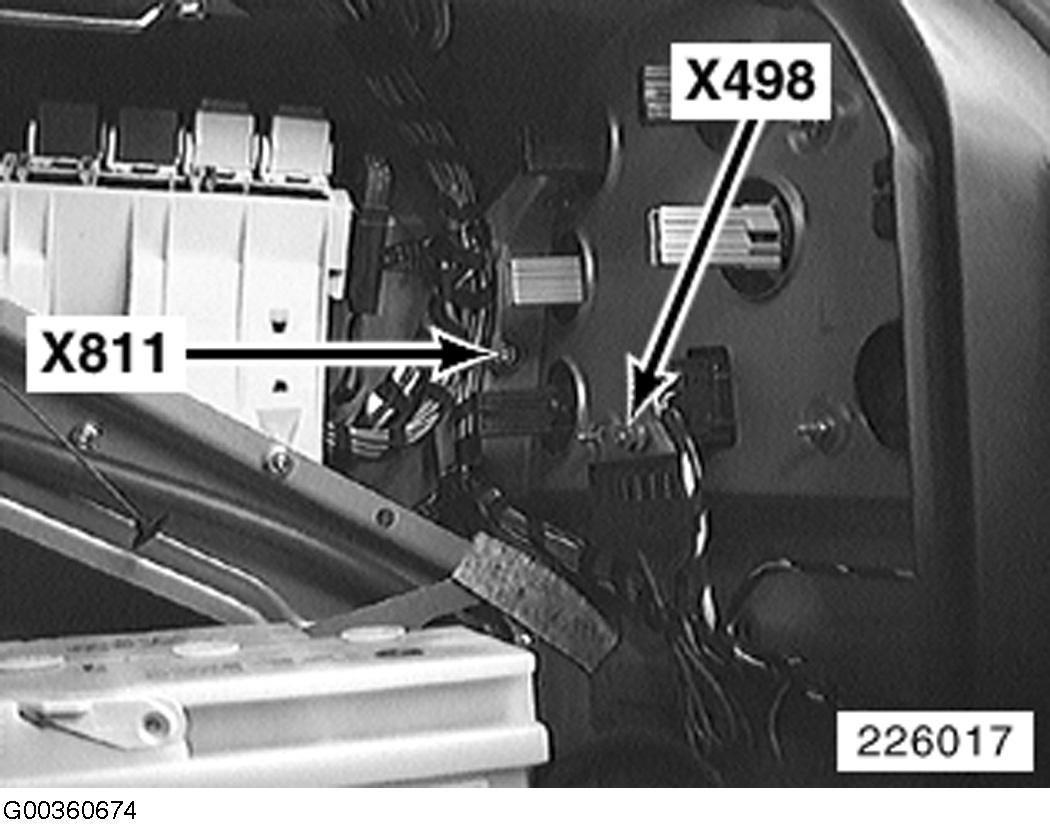

Fig 17: Right Rear Of Luggage Compartment

G00360674

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 18: Below Glove Box

G00360675

Courtesy of BMW OF NORTH AMERICA, INC.

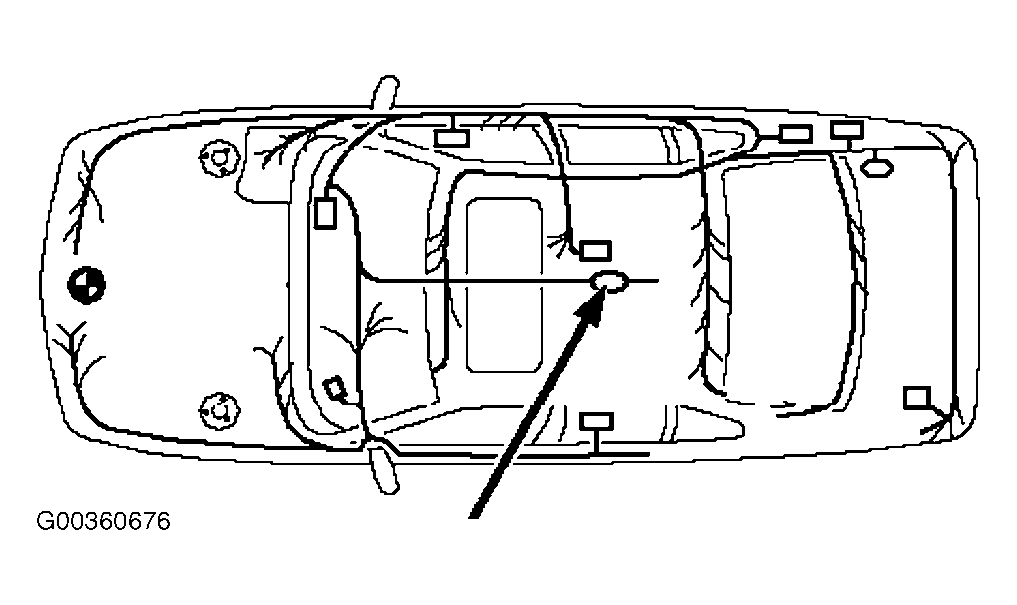

Fig 19: Rear Center Console

G00360676

Courtesy of BMW OF NORTH AMERICA, INC.

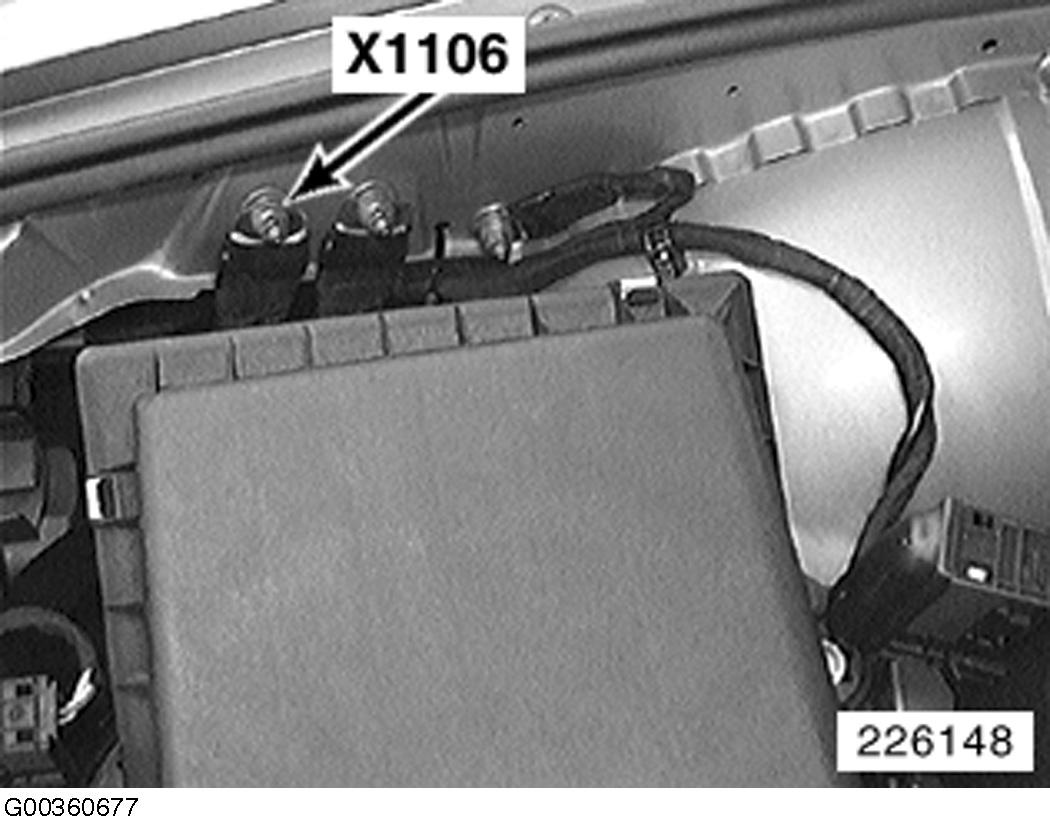

Fig 20: Right Side Of Engine Compartment

G00360677

Courtesy of BMW OF NORTH AMERICA, INC.

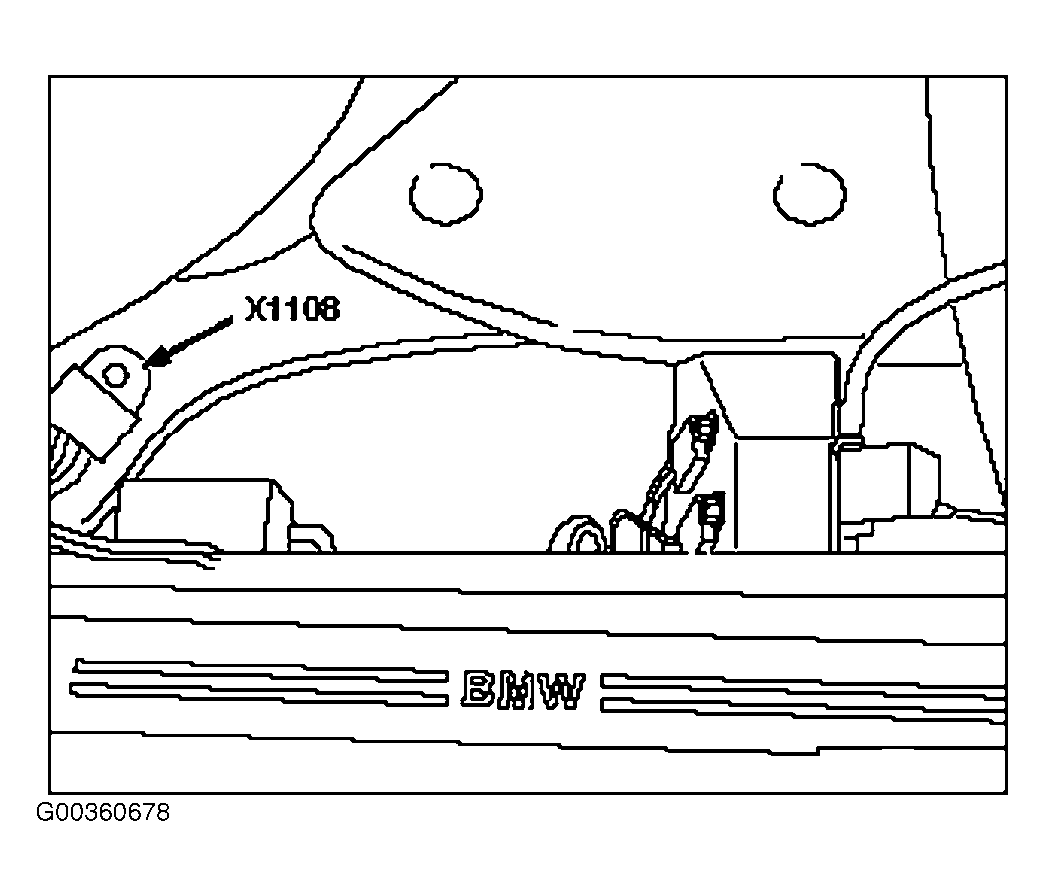

Fig 21: Left Door Sill

G00360678

Courtesy of BMW OF NORTH AMERICA, INC.

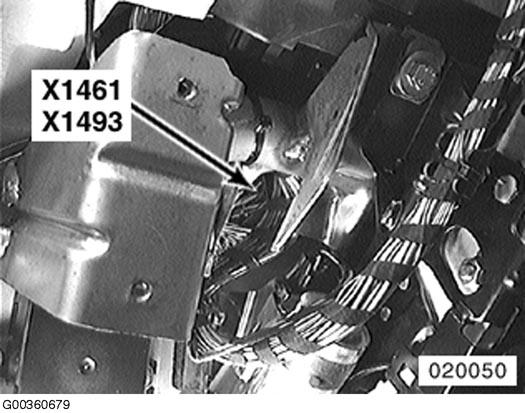

Fig 22: Left Side Of Dash

G00360679

Courtesy of BMW OF NORTH AMERICA, INC.

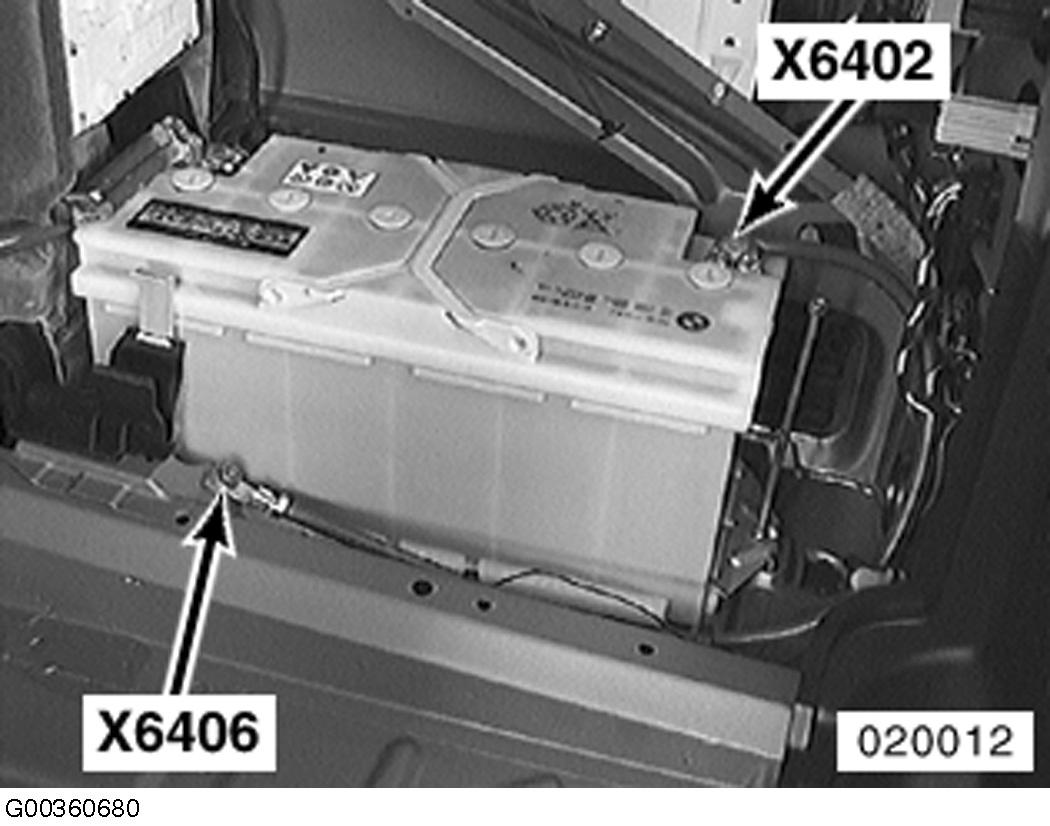

Fig 23: Right Rear Of Luggage Compartment

G00360680

Courtesy of BMW OF NORTH AMERICA, INC.

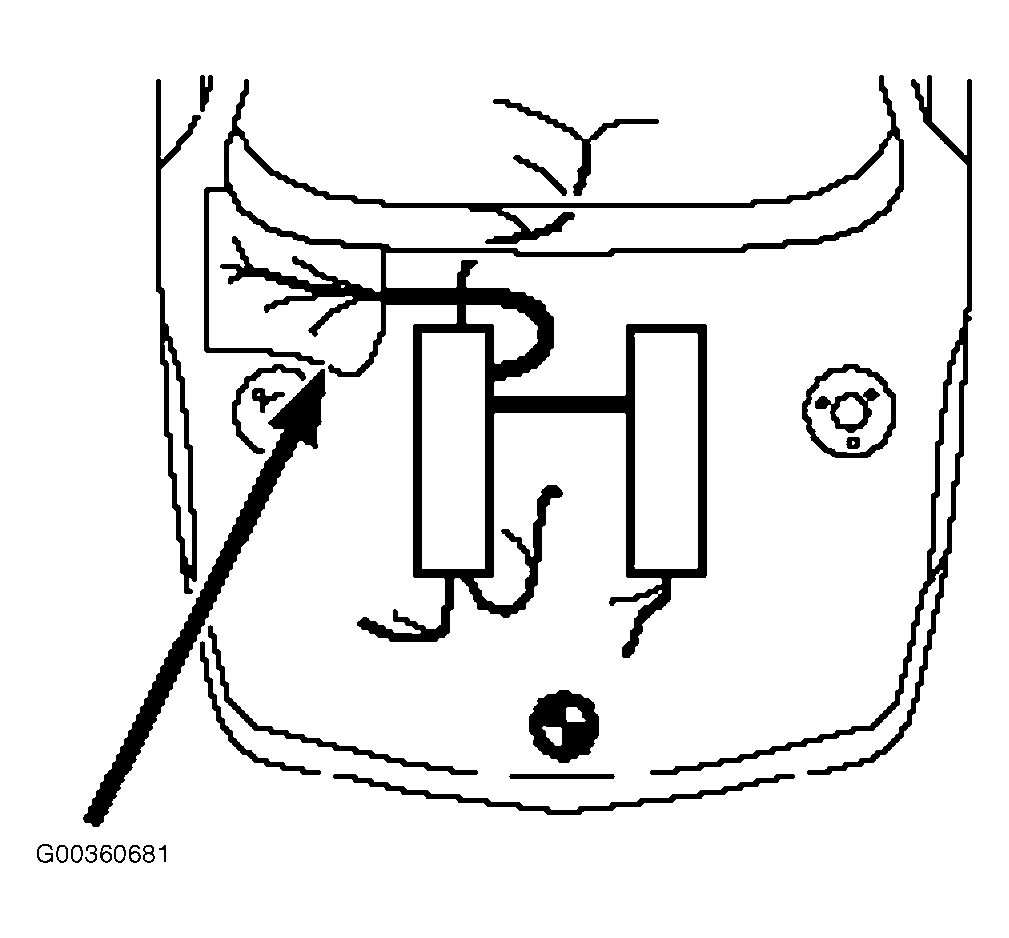

Fig 24: Right Rear Of Engine Compartment

G00360681

Courtesy of BMW OF NORTH AMERICA, INC.

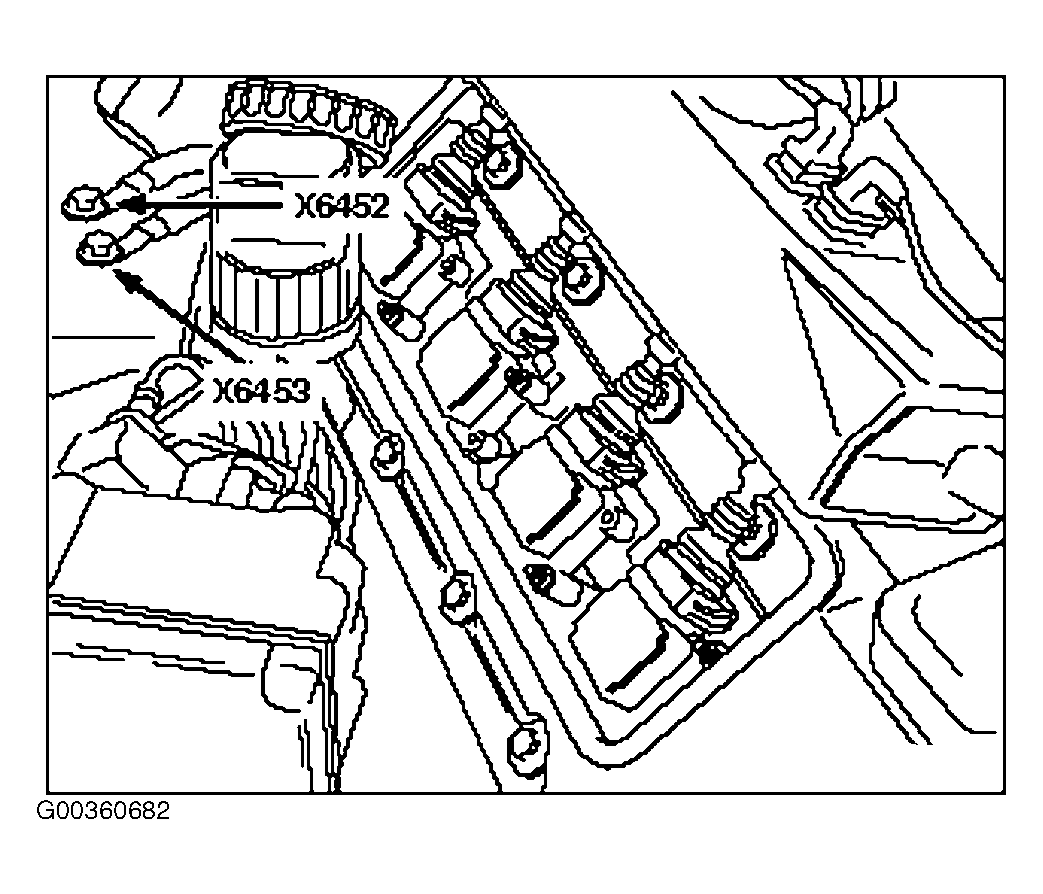

Fig 25: Right Front Shock Tower

G00360682

Courtesy of BMW OF NORTH AMERICA, INC.

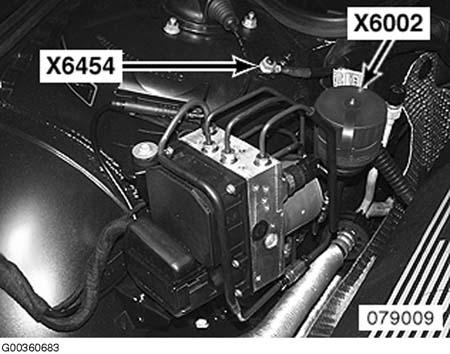

Fig 26: Right Side Of Engine Compartment

G00360683

Courtesy of BMW OF NORTH AMERICA, INC.

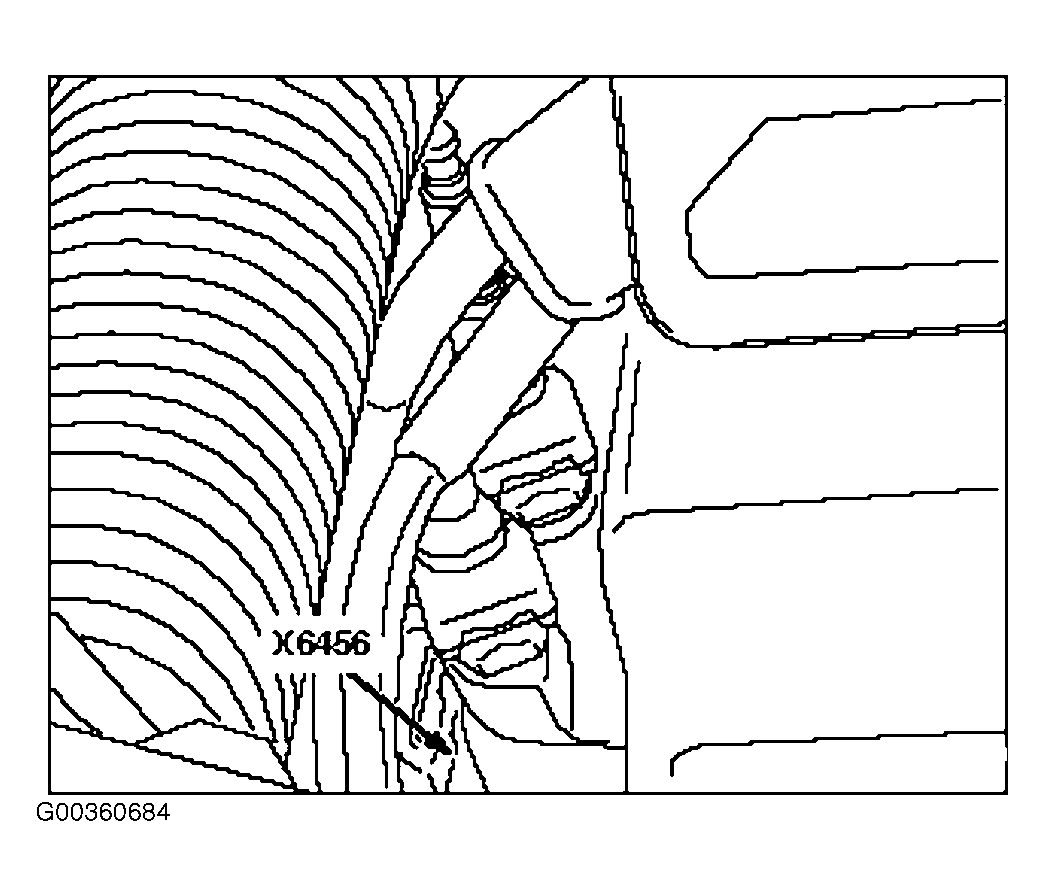

Fig 27: Right Side Of Engine Compartment

G00360684

Courtesy of BMW OF NORTH AMERICA, INC.

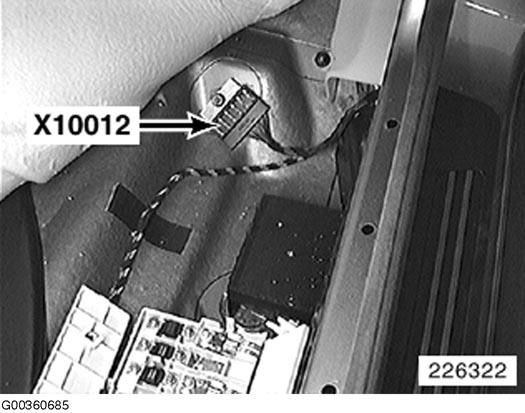

Fig 28: Right Side Of Right Footwell

G00360685

Courtesy of BMW OF NORTH AMERICA, INC.

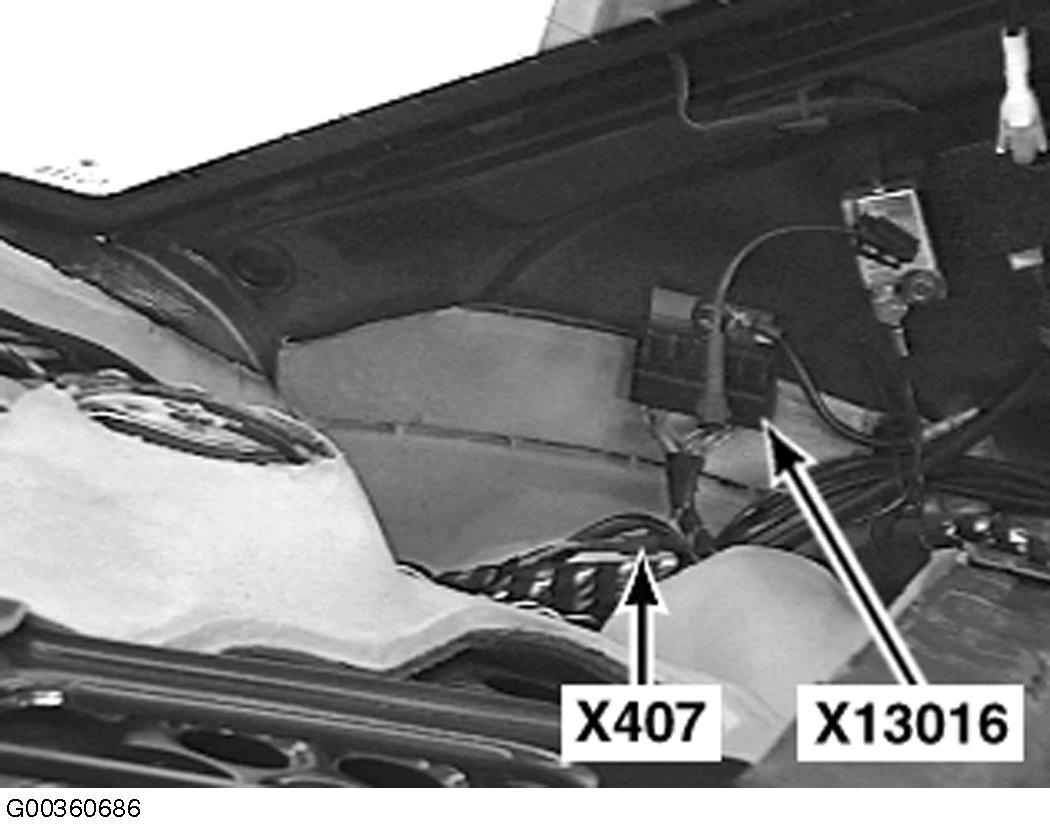

Fig 29: Left "C" Pillar

G00360686

Courtesy of BMW OF NORTH AMERICA, INC.

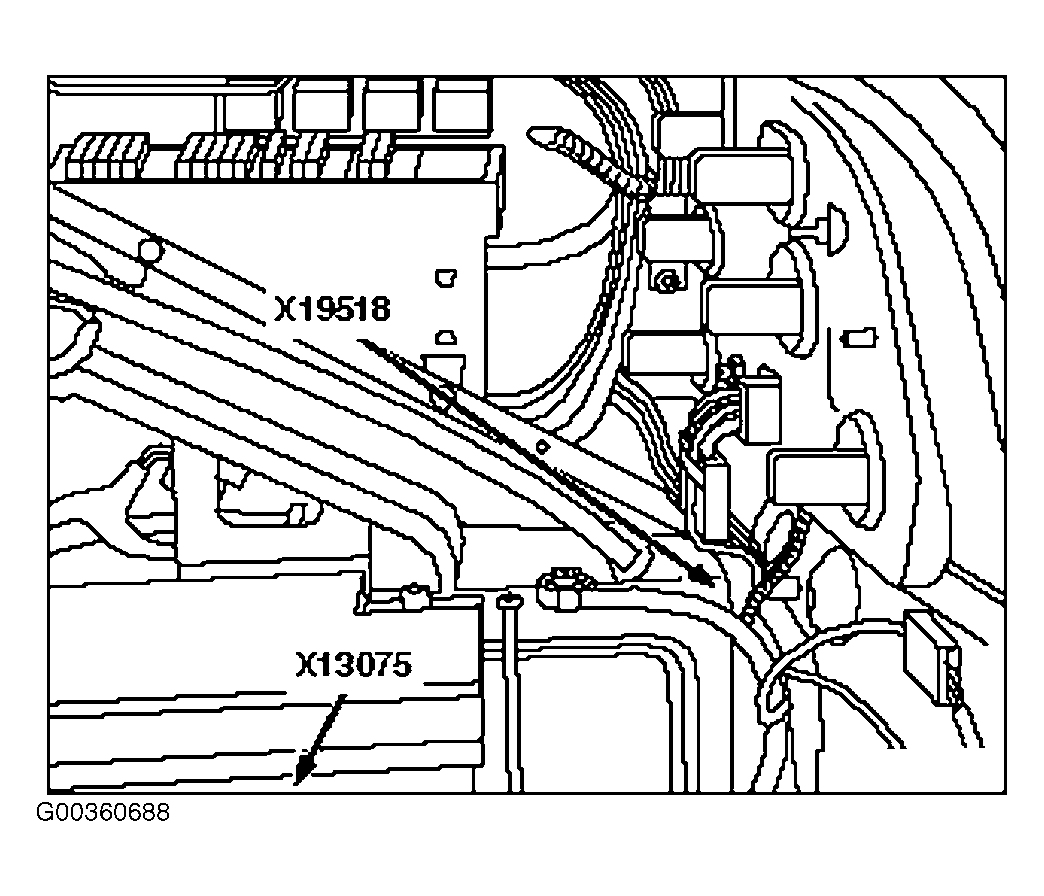

Fig 30: Right Rear Of Luggage Compartment

G00360688

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 31: Behind Glove Box

G00360689

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 32: Right Side Of Right Footwell

G00360690

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 33: Right Rear Of Engine Compartment

G00360691

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 34: Rear Center Console

G00360692

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 35: Right Side Of Luggage Compartment

G00360693

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 36: Behind Glove Box

G00360694

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 37: Behind Glove Box

G00360695

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 38: Below Right Rear Seat

G00360696

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 39: Below Rear Seat

G00360697

Courtesy of BMW OF NORTH AMERICA, INC.

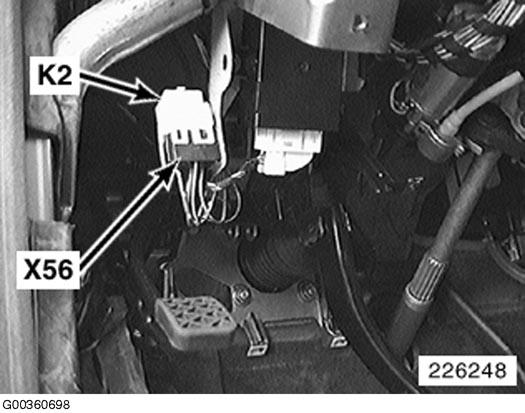

Fig 40: Left Side Of Dash

G00360698

Courtesy of BMW OF NORTH AMERICA, INC.

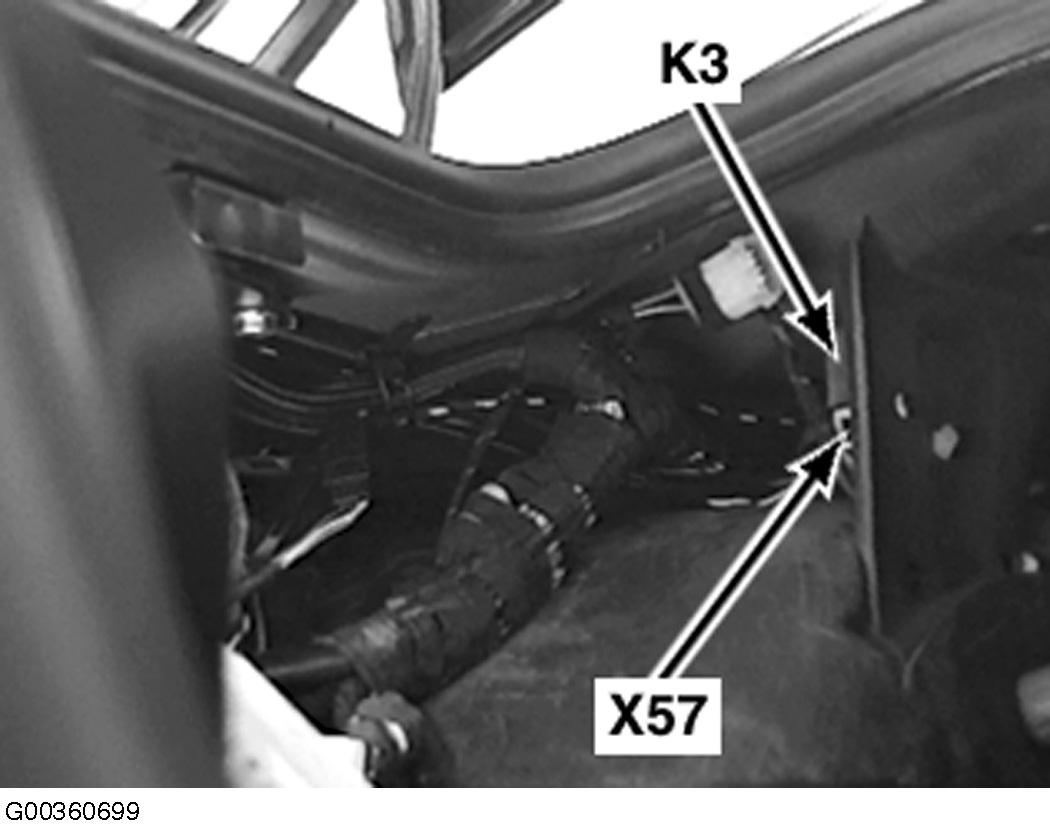

Fig 41: Left Side Of Luggage Compartment

G00360699

Courtesy of BMW OF NORTH AMERICA, INC.

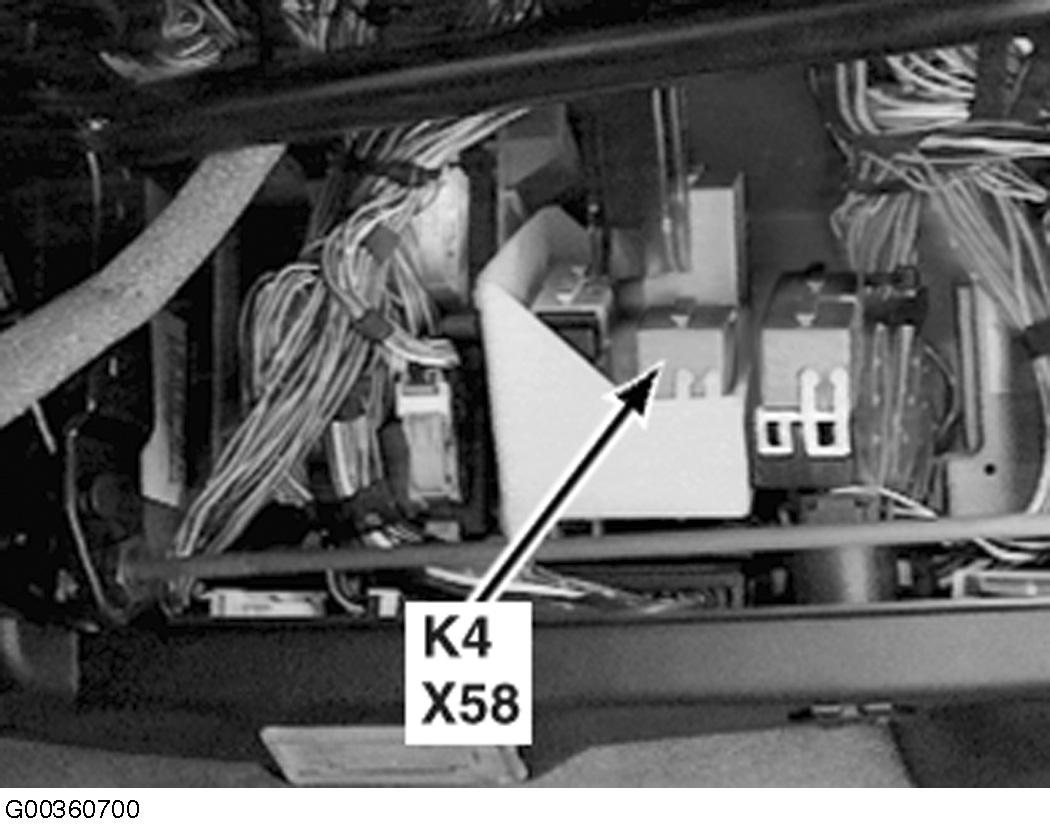

Fig 42: Behind Glove Box

G00360700

Courtesy of BMW OF NORTH AMERICA, INC.

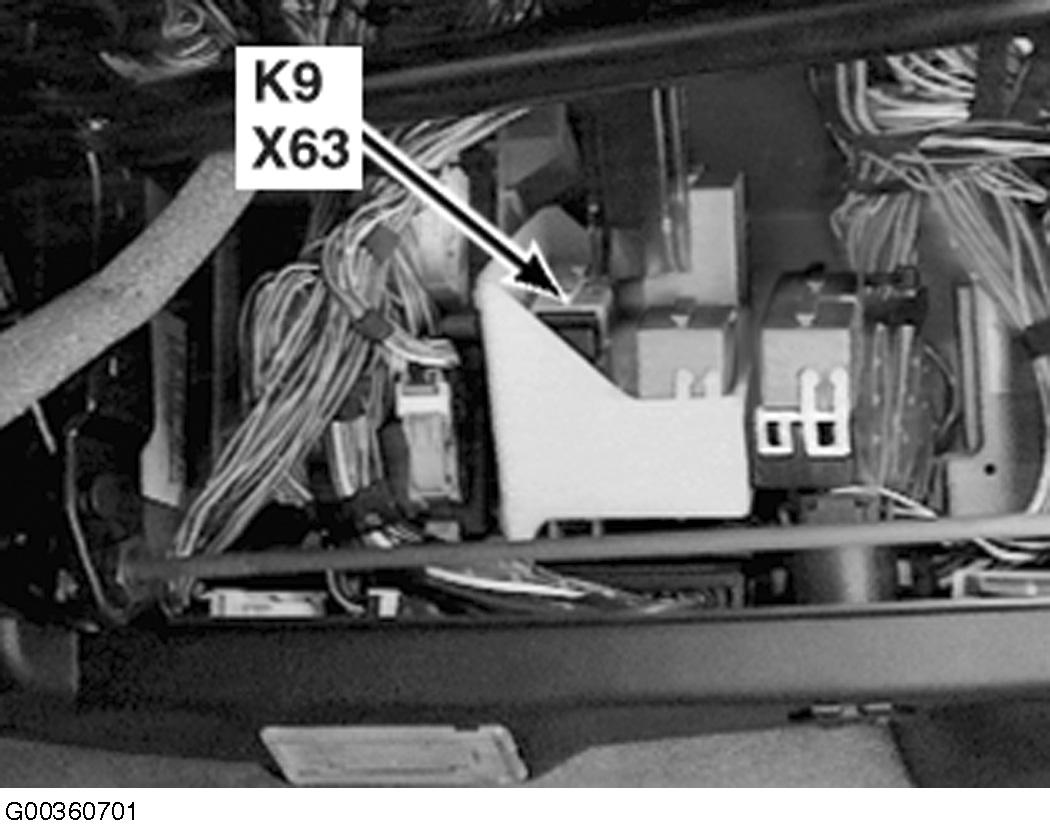

Fig 43: Behind Glove Box

G00360701

Courtesy of BMW OF NORTH AMERICA, INC.

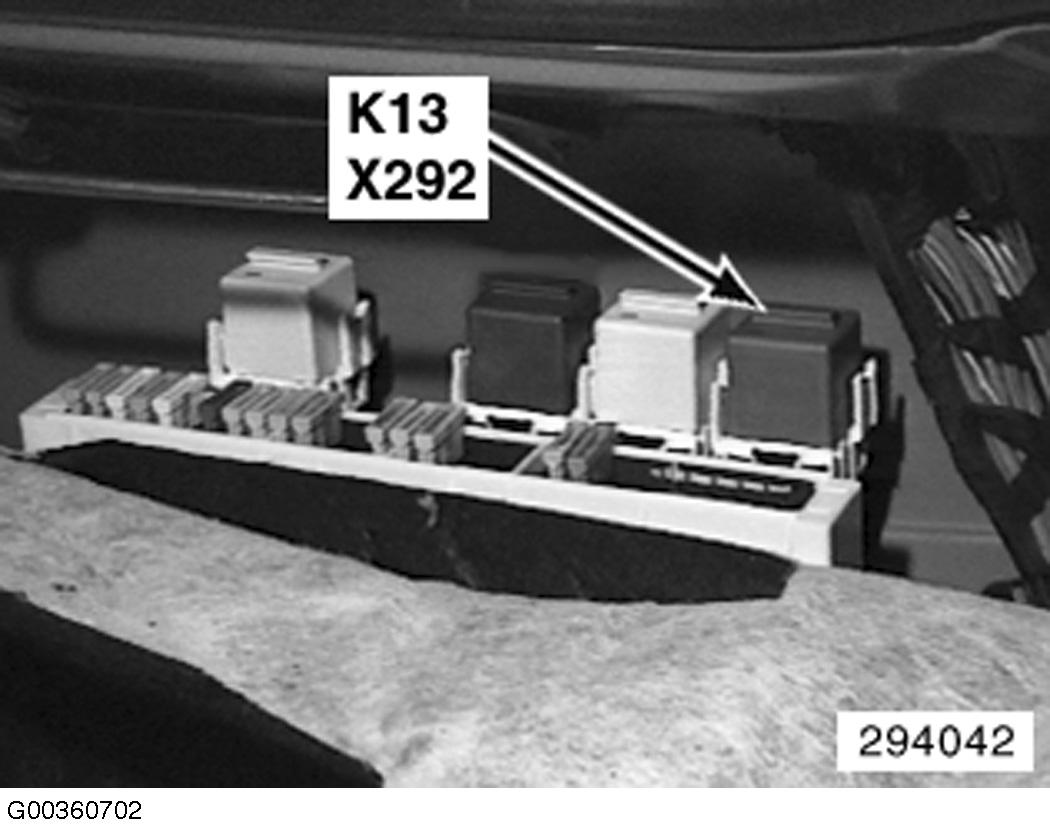

Fig 44: Right Rear Of Luggage Compartment

G00360702

Courtesy of BMW OF NORTH AMERICA, INC.

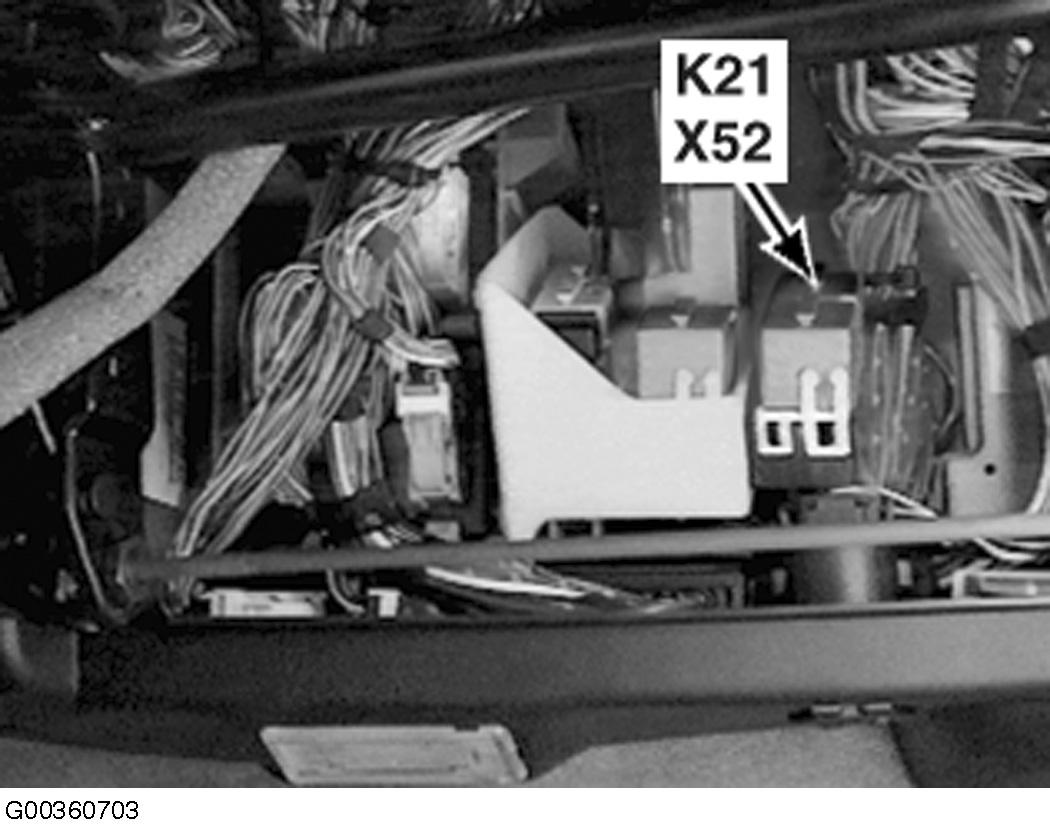

Fig 45: Behind Glove Box

G00360703

Courtesy of BMW OF NORTH AMERICA, INC.

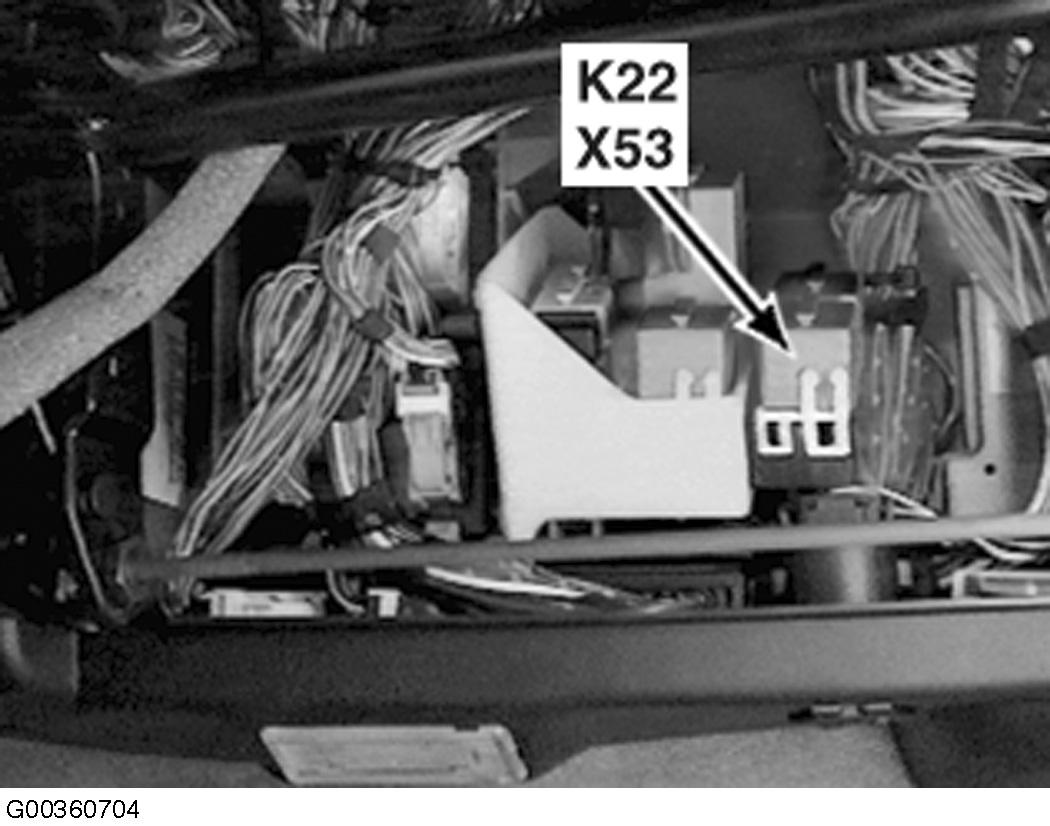

Fig 46: Behind Glove Box

G00360704

Courtesy of BMW OF NORTH AMERICA, INC.

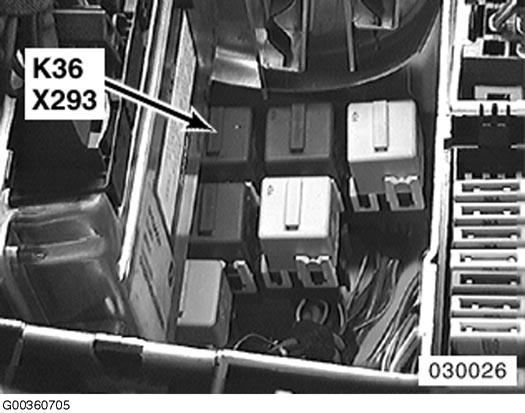

Fig 47: Right Rear Of Engine Compartment

G00360705

Courtesy of BMW OF NORTH AMERICA, INC.

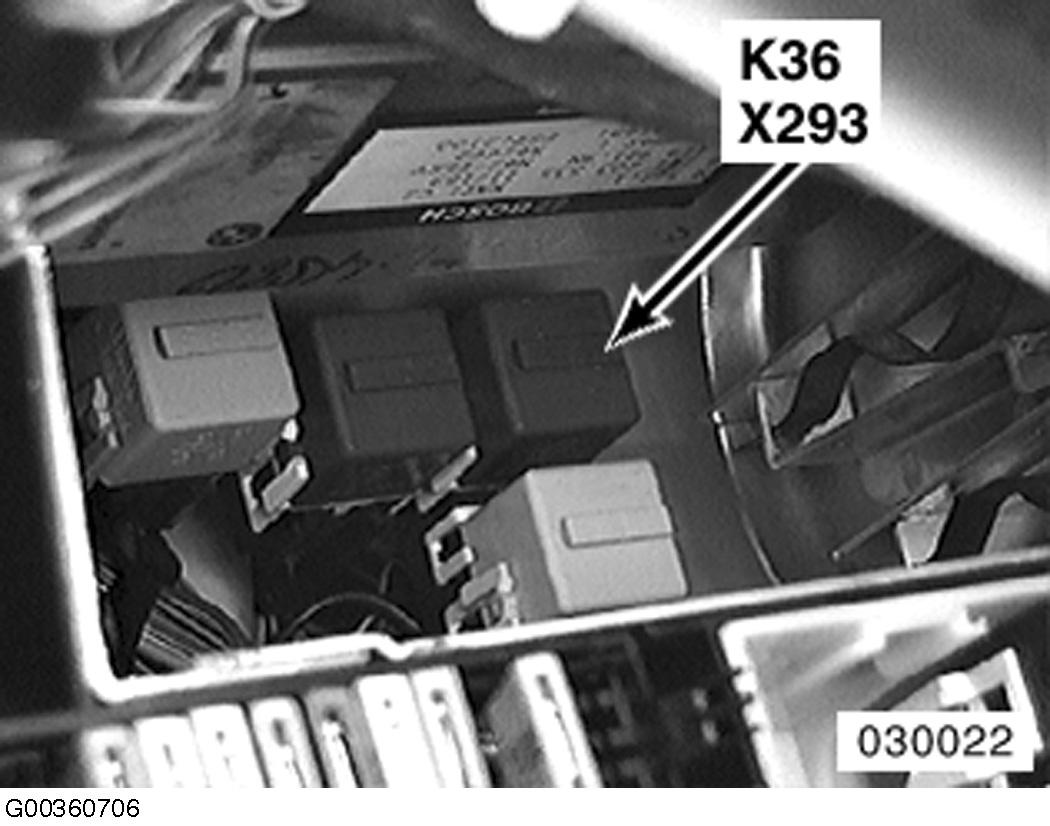

Fig 48: Right Rear Of Engine Compartment

G00360706

Courtesy of BMW OF NORTH AMERICA, INC.

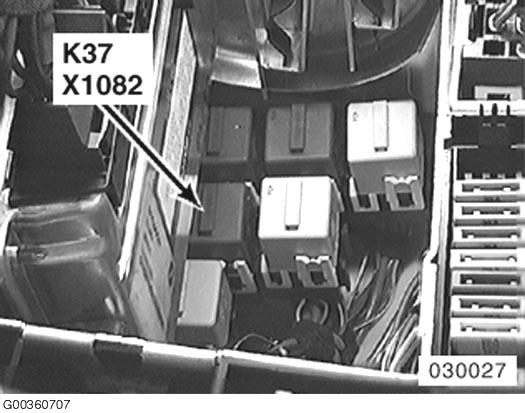

Fig 49: Right Rear Of Engine Compartment

G00360707

Courtesy of BMW OF NORTH AMERICA, INC.

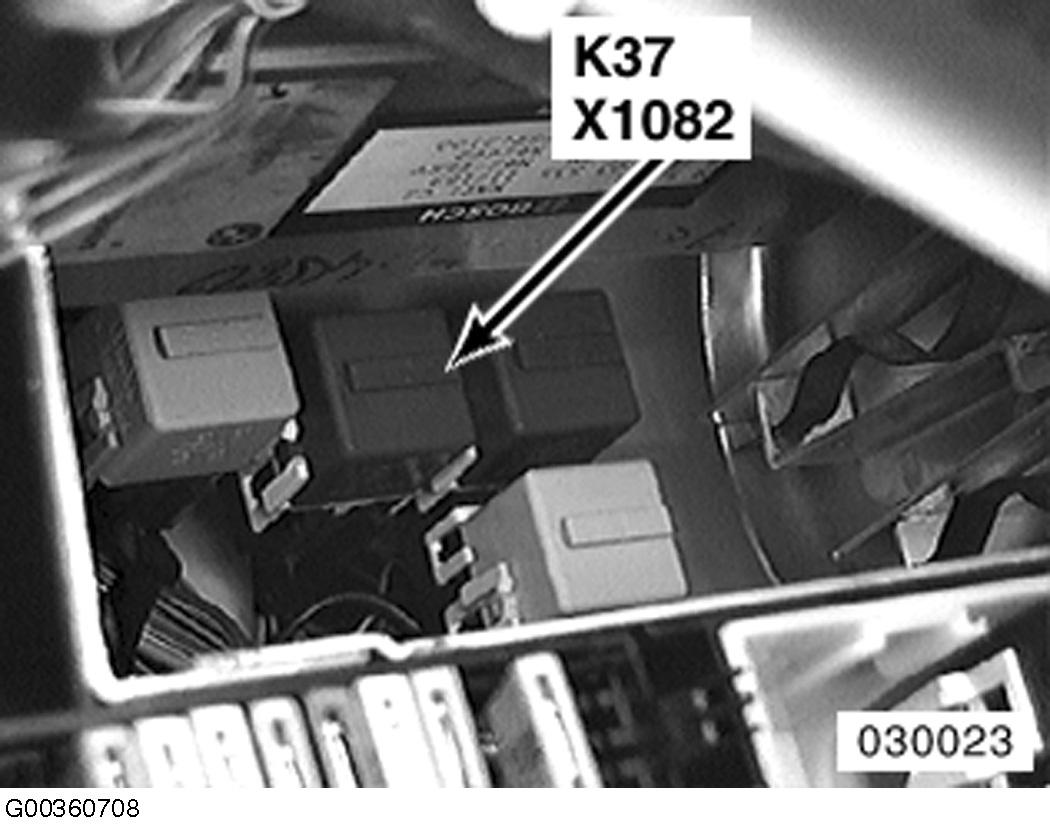

Fig 50: Right Rear Of Engine Compartment

G00360708

Courtesy of BMW OF NORTH AMERICA, INC.

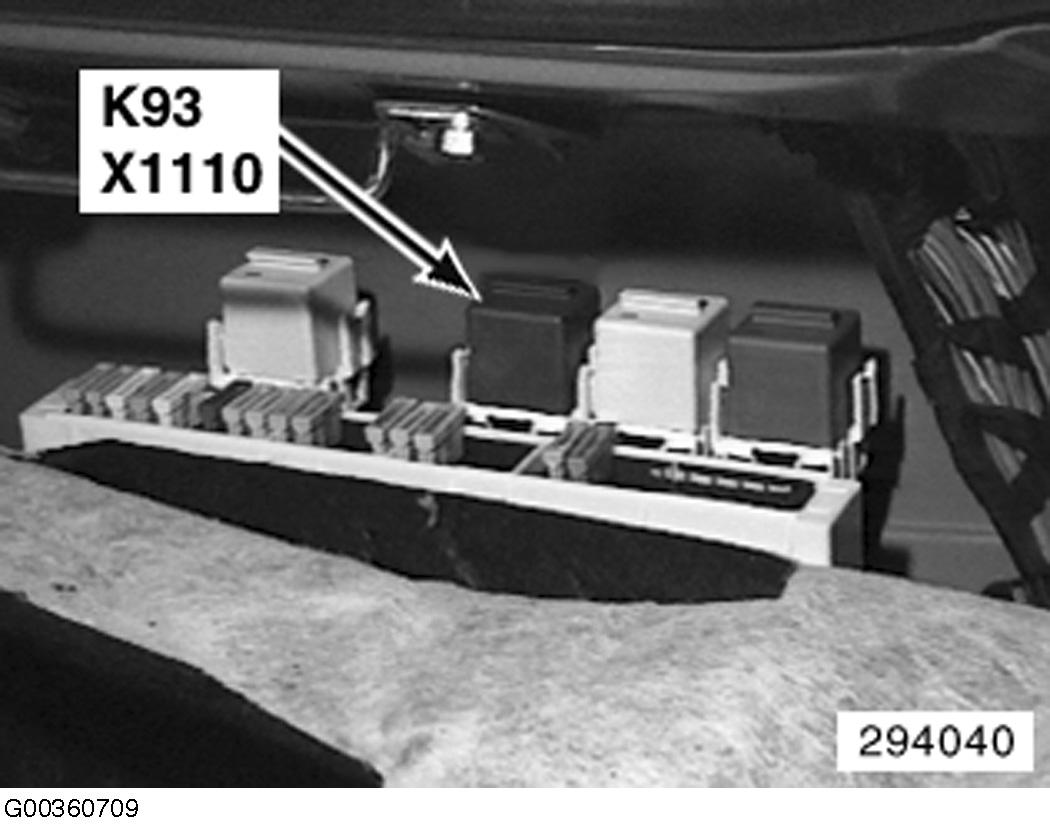

Fig 51: Right Rear Of Luggage Compartment

G00360709

Courtesy of BMW OF NORTH AMERICA, INC.

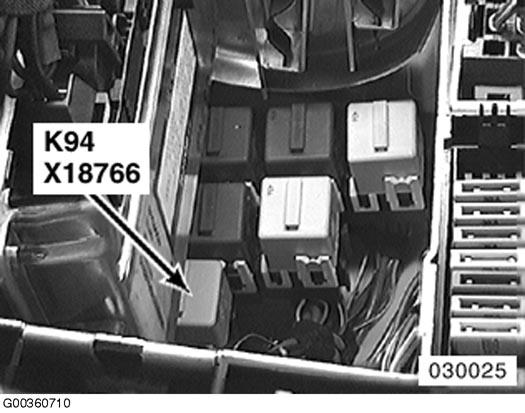

Fig 52: Right Rear Of Engine Compartment

G00360710

Courtesy of BMW OF NORTH AMERICA, INC.

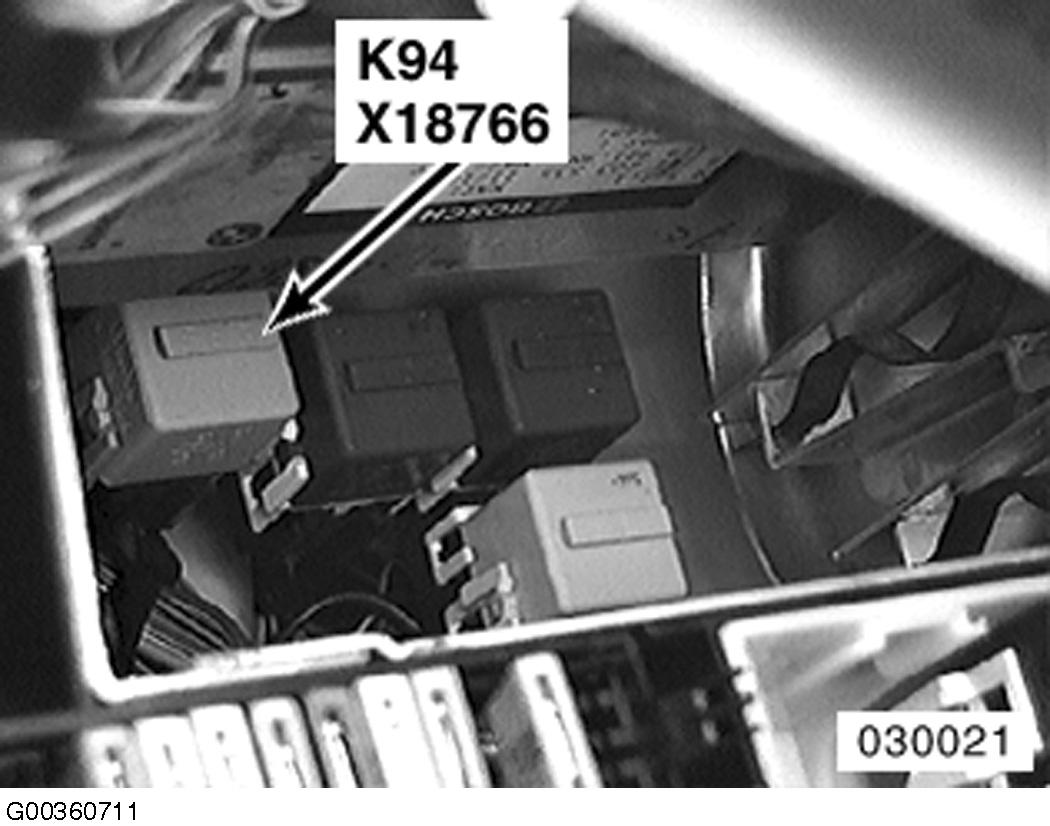

Fig 53: Right Rear Of Engine Compartment

G00360711

Courtesy of BMW OF NORTH AMERICA, INC.

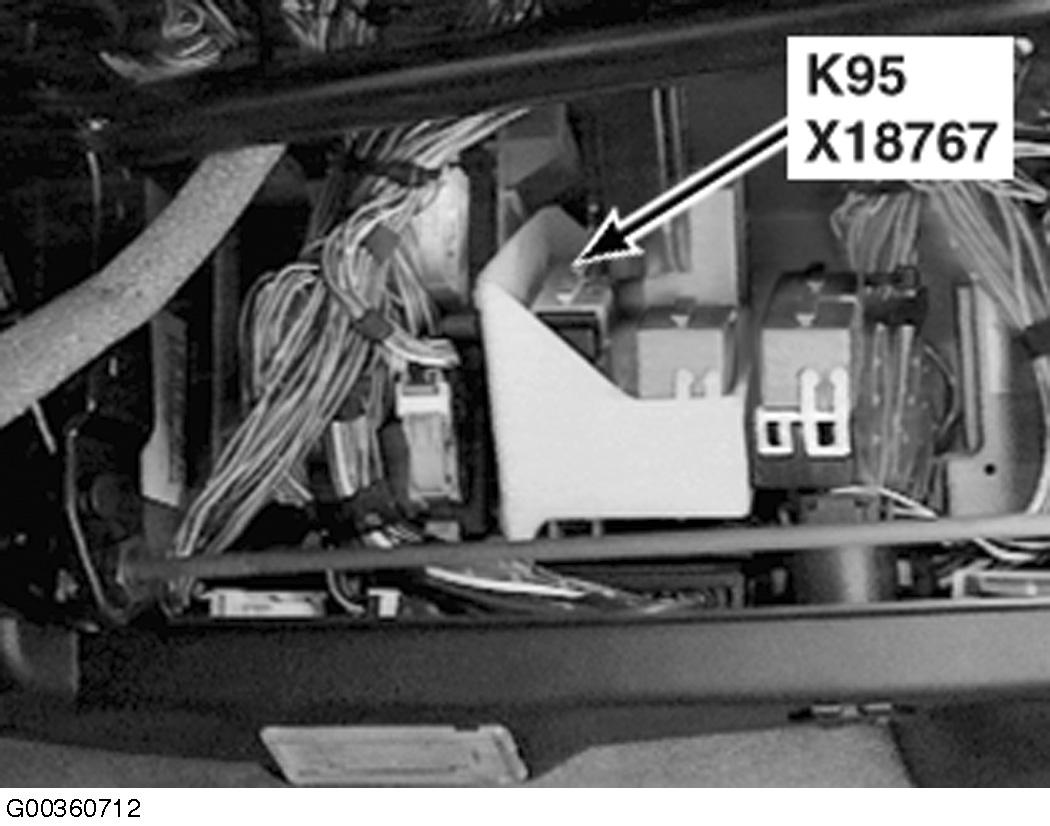

Fig 54: Behind Glove Box

G00360712

Courtesy of BMW OF NORTH AMERICA, INC.

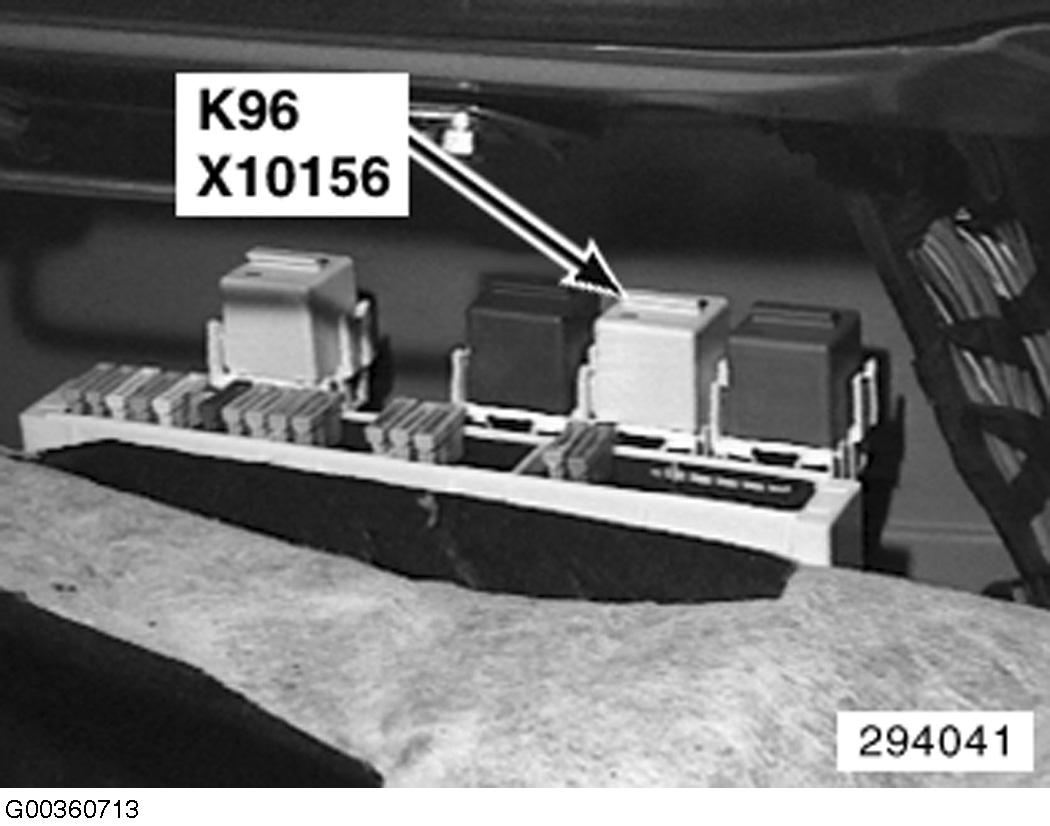

Fig 55: Right Rear Of Luggage Compartment

G00360713

Courtesy of BMW OF NORTH AMERICA, INC.

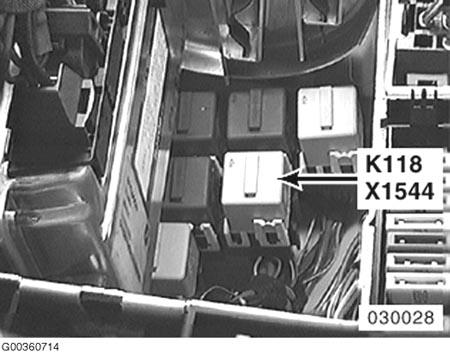

Fig 56: Right Rear Of Engine Compartment

G00360714

Courtesy of BMW OF NORTH AMERICA, INC.

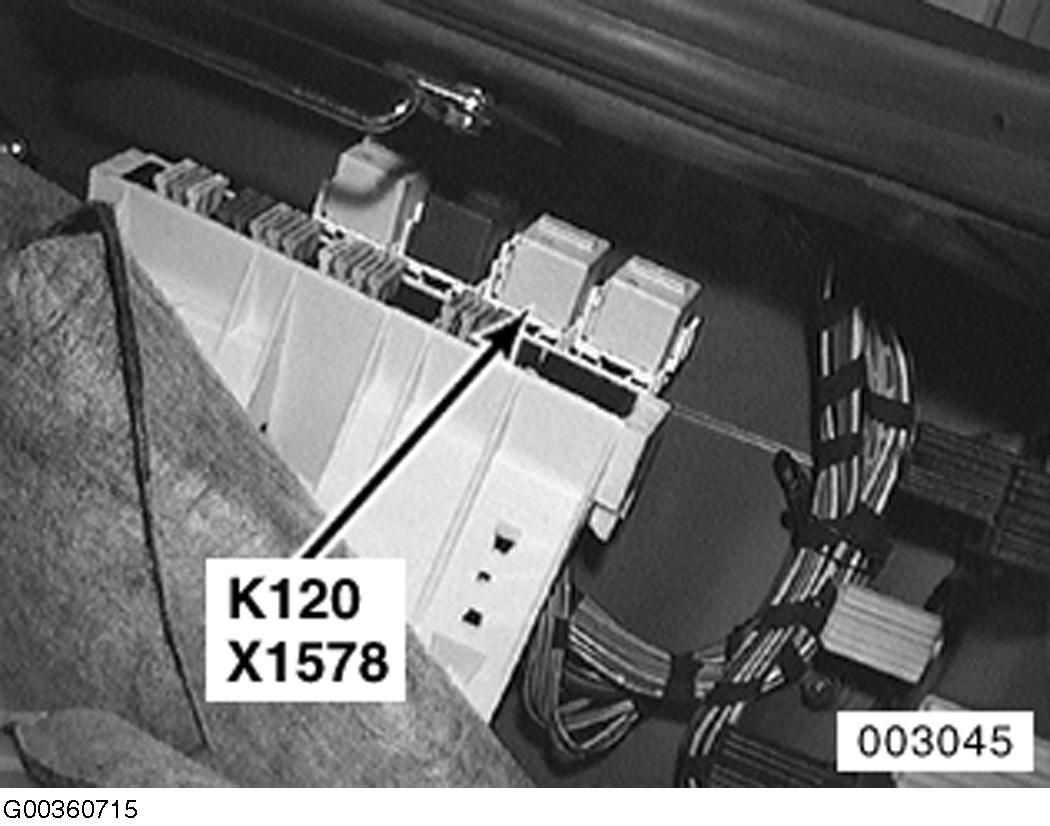

Fig 57: Right Rear Of Luggage Compartment

G00360715

Courtesy of BMW OF NORTH AMERICA, INC.

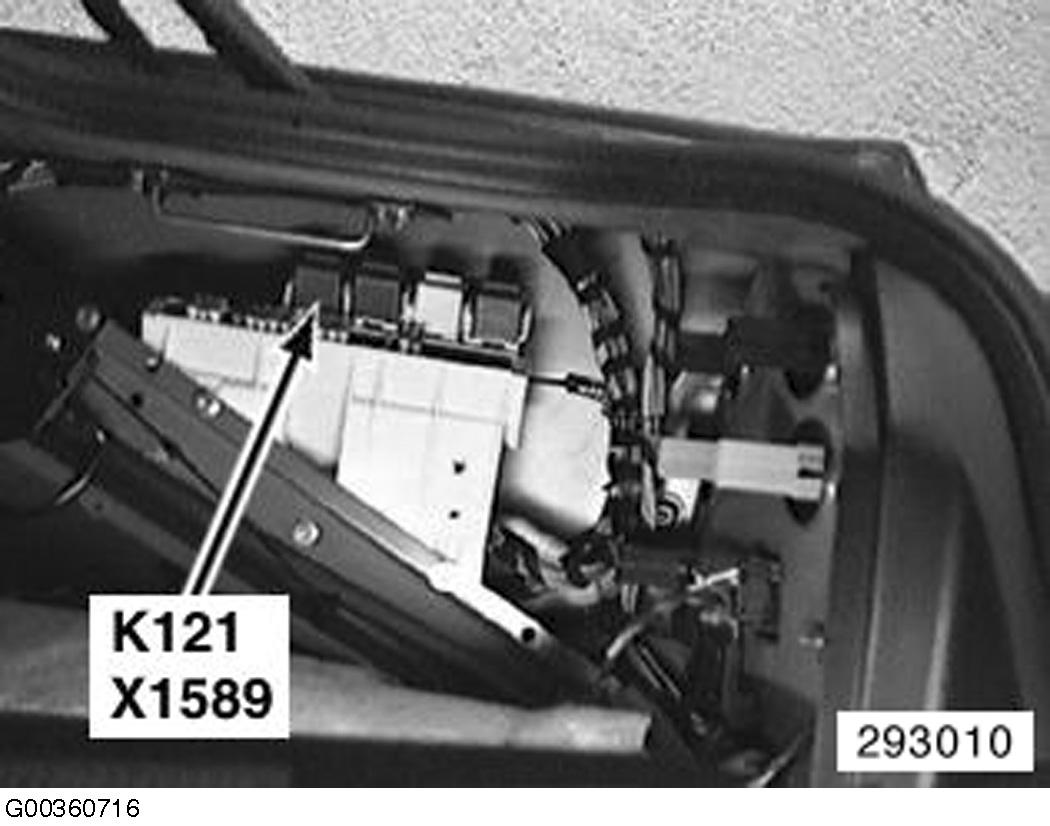

Fig 58: Right Rear Of Luggage Compartment

G00360716

Courtesy of BMW OF NORTH AMERICA, INC.

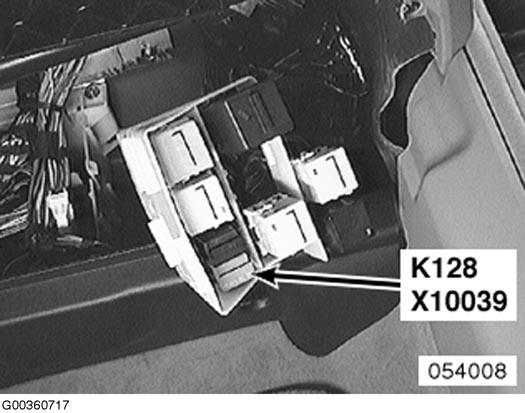

Fig 59: Behind Glove Box

G00360717

Courtesy of BMW OF NORTH AMERICA, INC.

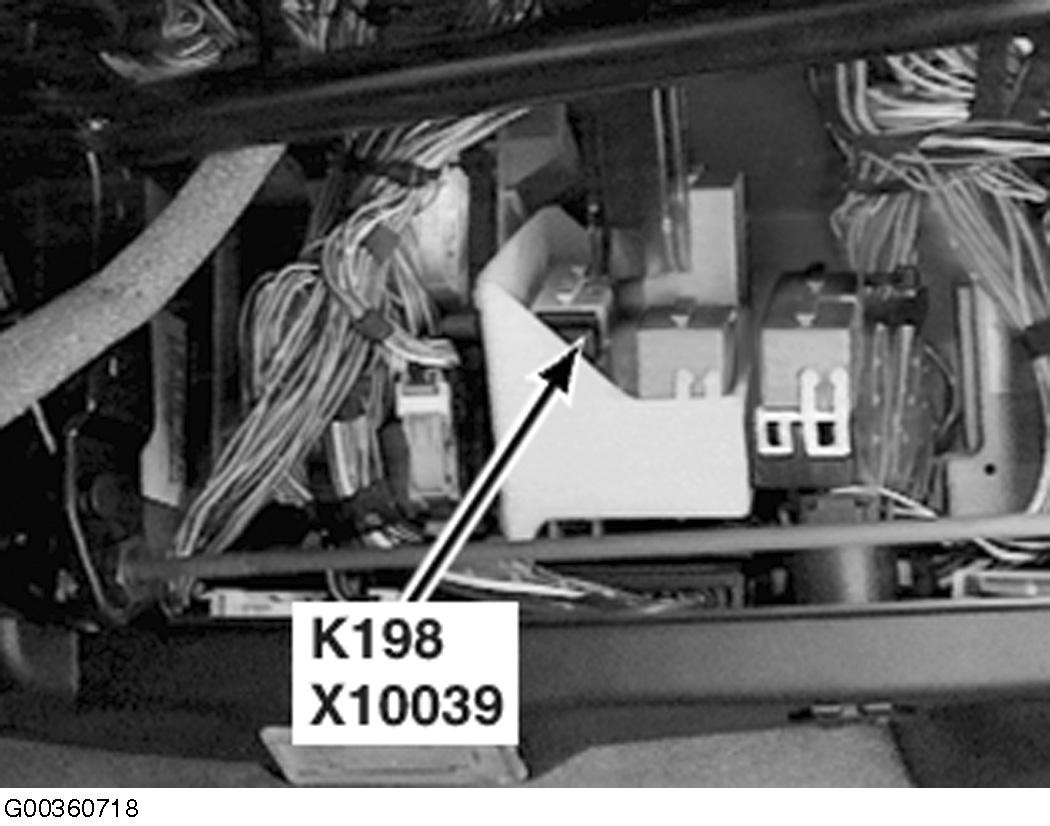

Fig 60: Behind Glove Box

G00360718

Courtesy of BMW OF NORTH AMERICA, INC.

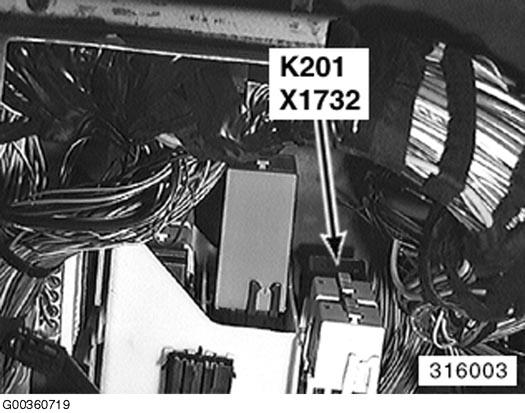

Fig 61: Behind Glove Box

G00360719

Courtesy of BMW OF NORTH AMERICA, INC.

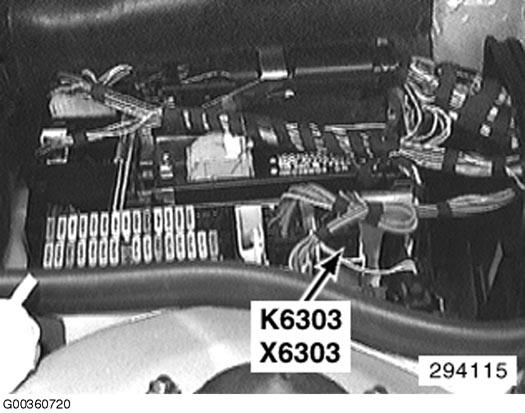

Fig 62: Right Rear Of Engine Compartment

G00360720

Courtesy of BMW OF NORTH AMERICA, INC.

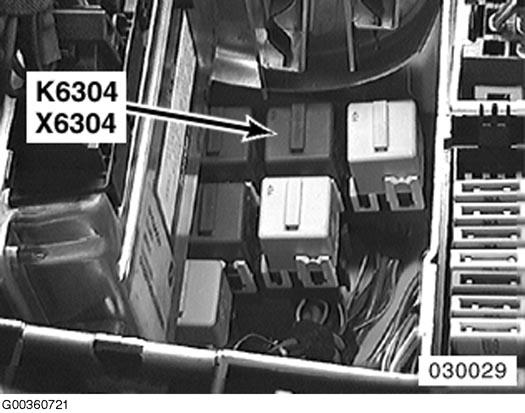

Fig 63: Right Rear Of Engine Compartment

G00360721

Courtesy of BMW OF NORTH AMERICA, INC.

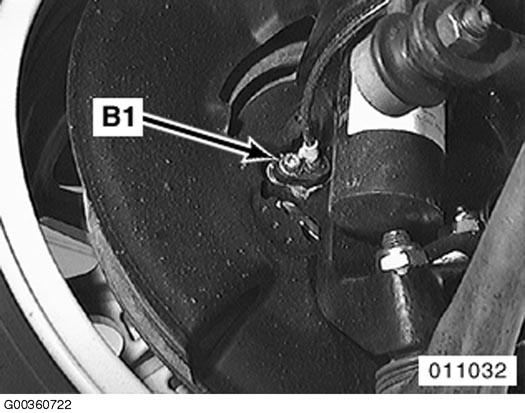

Fig 64: Right Front Wheel Hub

G00360722

Courtesy of BMW OF NORTH AMERICA, INC.

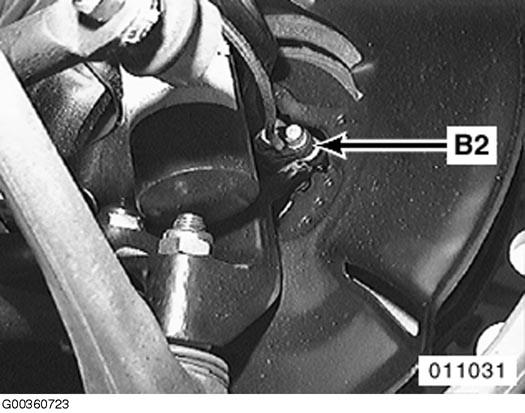

Fig 65: Left Front Wheel Hub

G00360723

Courtesy of BMW OF NORTH AMERICA, INC.

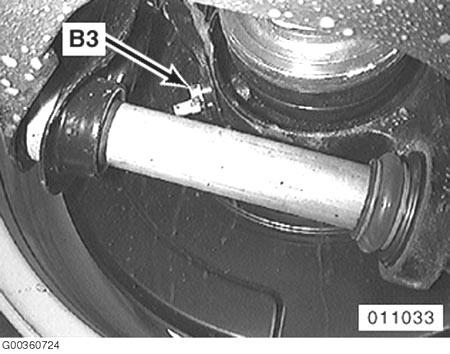

Fig 66: Right Rear Wheel Hub

G00360724

Courtesy of BMW OF NORTH AMERICA, INC.

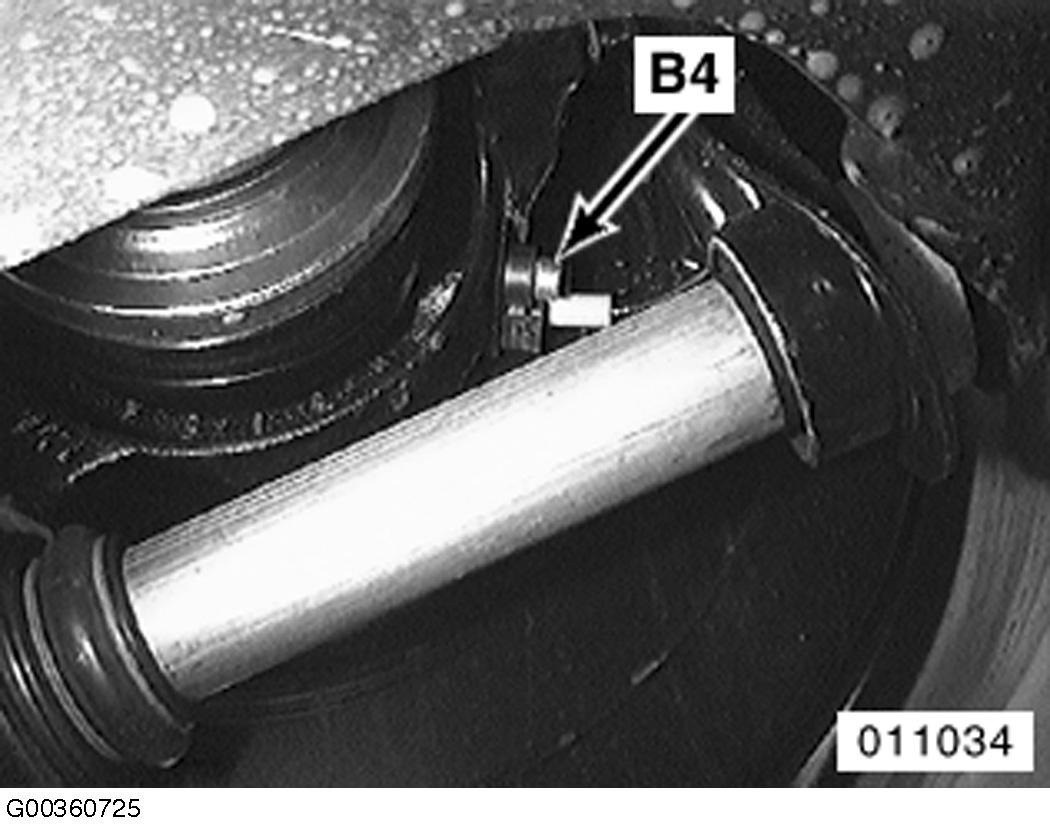

Fig 67: Left Rear Wheel Hub

G00360725

Courtesy of BMW OF NORTH AMERICA, INC.

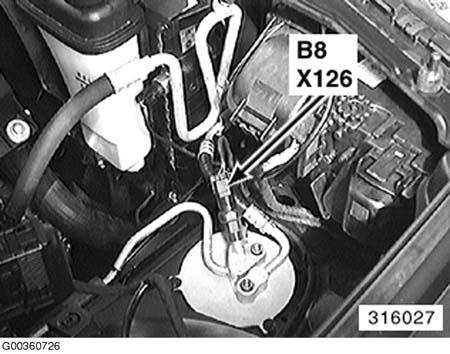

Fig 68: Right Front Of Engine Compartment

G00360726

Courtesy of BMW OF NORTH AMERICA, INC.

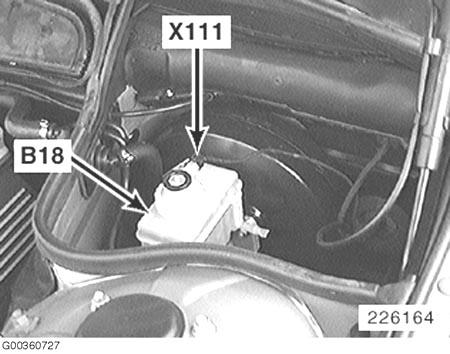

Fig 69: Left Rear Of Engine Compartment

G00360727

Courtesy of BMW OF NORTH AMERICA, INC.

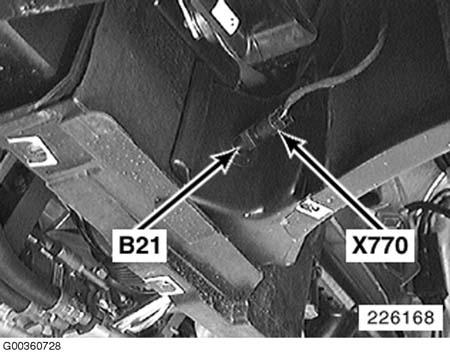

Fig 70: Left Front Ventilation Duct

G00360728

Courtesy of BMW OF NORTH AMERICA, INC.

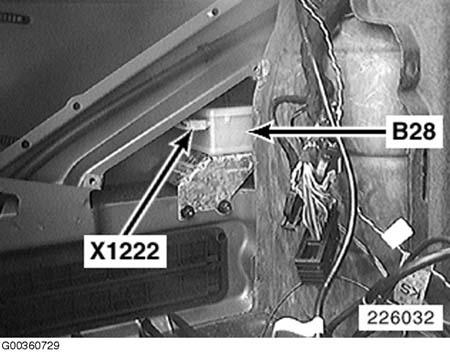

Fig 71: Left Rear Of Luggage Compartment

G00360729

Courtesy of BMW OF NORTH AMERICA, INC.

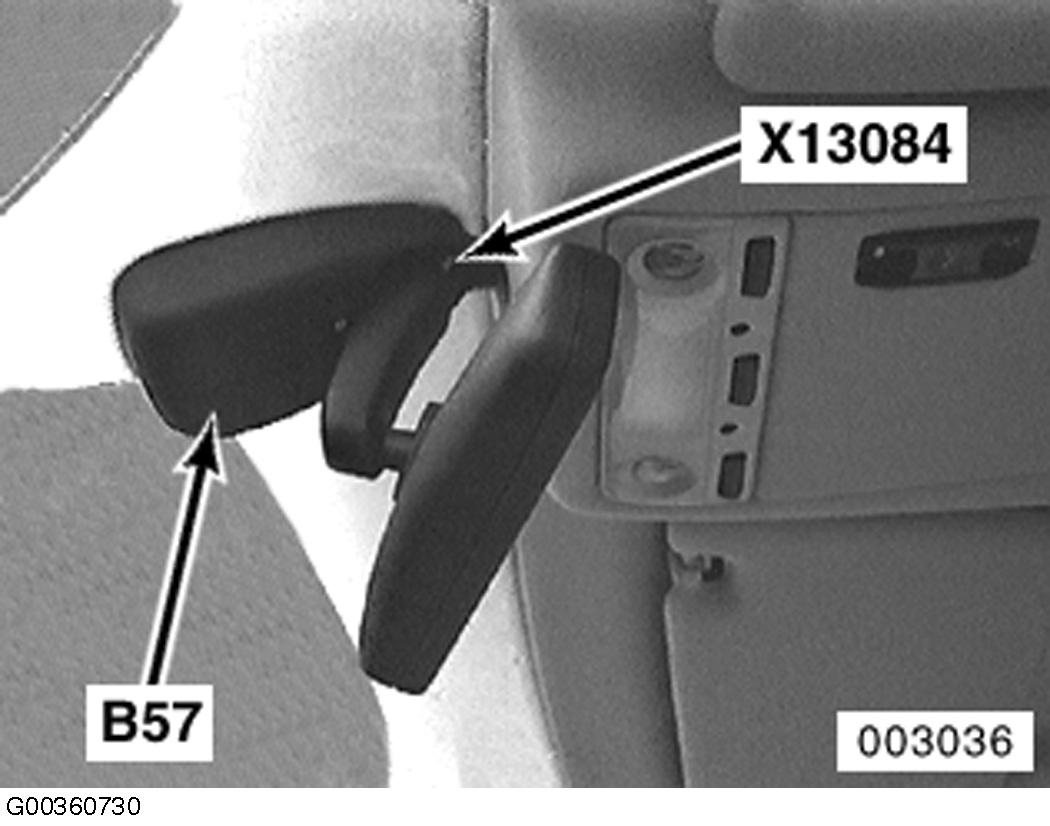

Fig 72: Near Rear View Mirror

G00360730

Courtesy of BMW OF NORTH AMERICA, INC.

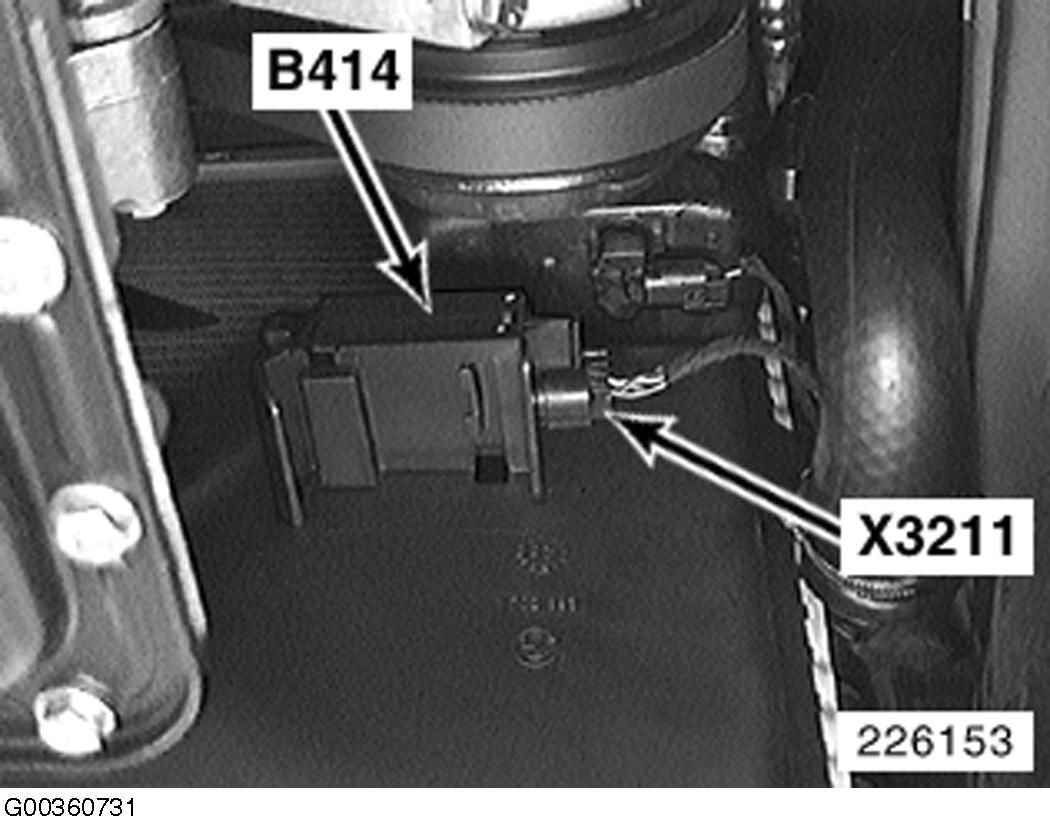

Fig 73: Right Front Of Engine Compartment

G00360731

Courtesy of BMW OF NORTH AMERICA, INC.

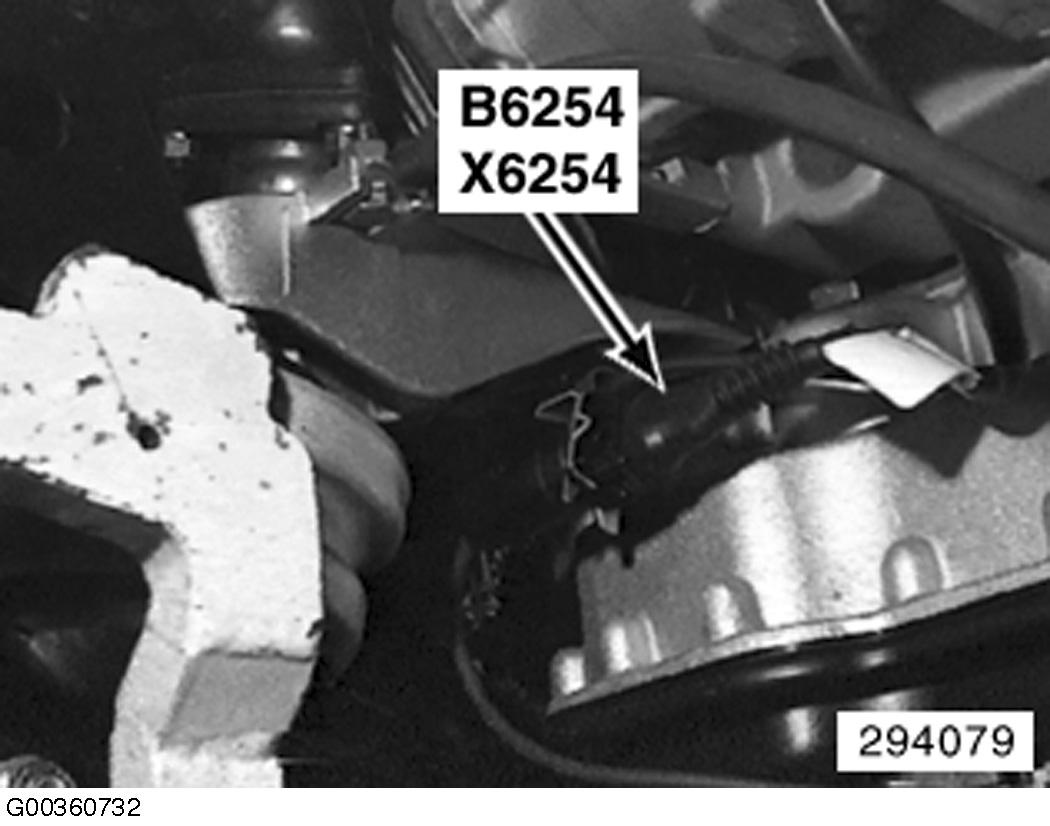

Fig 74: Lower Left Side Of Engine

G00360732

Courtesy of BMW OF NORTH AMERICA, INC.

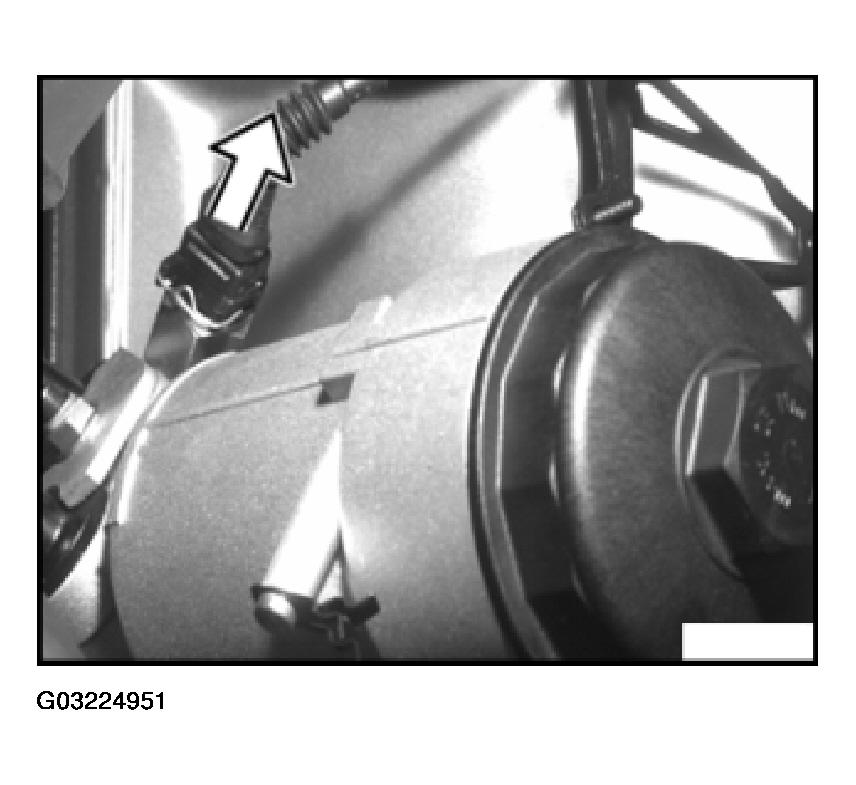

Fig 75: Oil Pressure Switch Under Oil Filter

G03224951

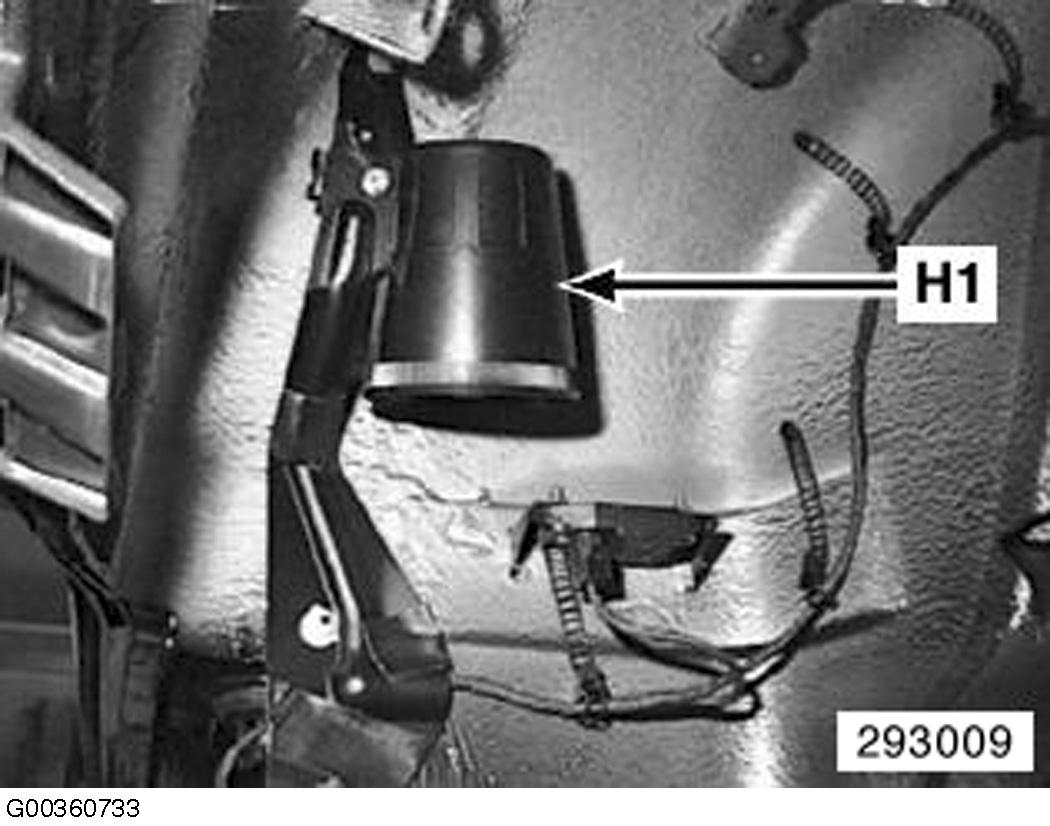

Fig 76: Right Rear Wheelwell

G00360733

Courtesy of BMW OF NORTH AMERICA, INC.

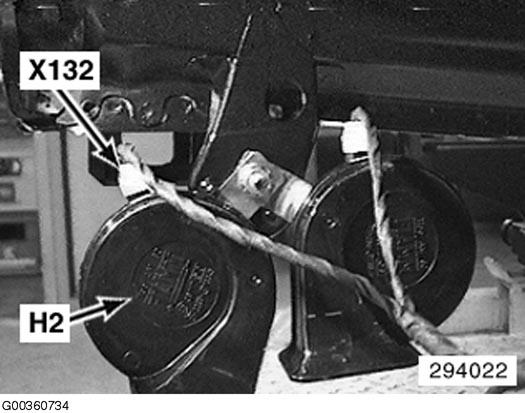

Fig 77: Under Right Front Bumper

G00360734

Courtesy of BMW OF NORTH AMERICA, INC.

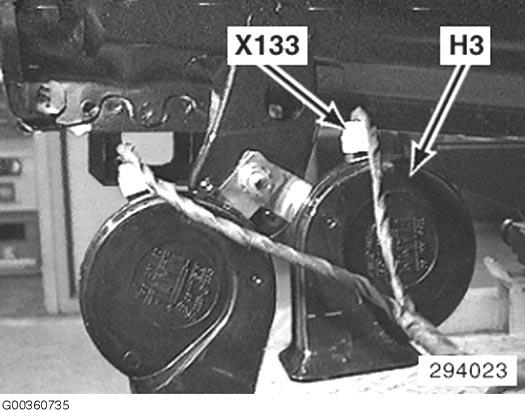

Fig 78: Under Right Front Bumper

G00360735

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 79: Under Glove Box

G00360736

Courtesy of BMW OF NORTH AMERICA, INC.

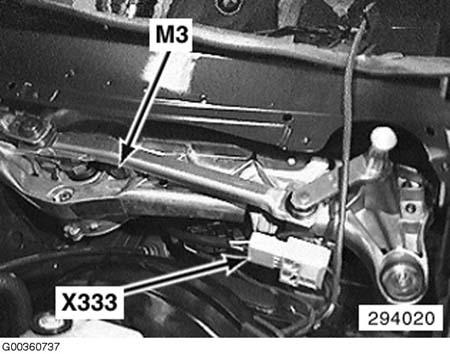

Fig 80: Left Rear Of Engine Compartment

G00360737

Courtesy of BMW OF NORTH AMERICA, INC.

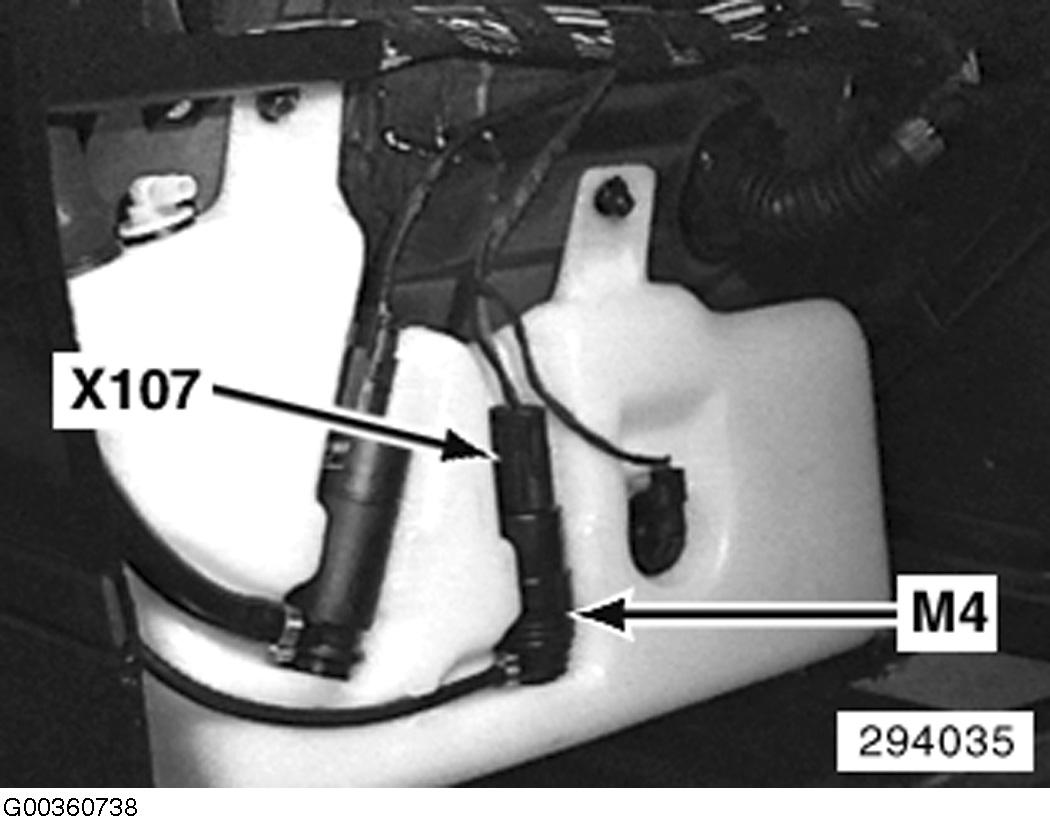

Fig 81: Washer Reservoir

G00360738

Courtesy of BMW OF NORTH AMERICA, INC.

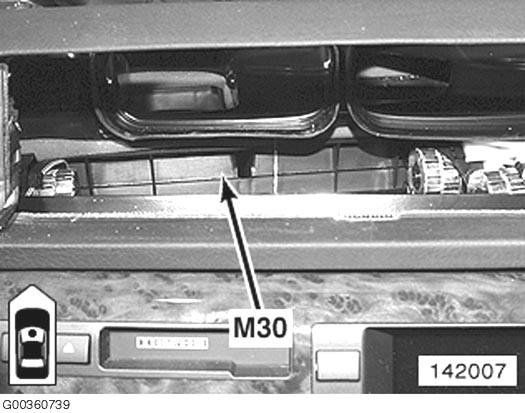

Fig 82: Behind Center Of Dash

G00360739

Courtesy of BMW OF NORTH AMERICA, INC.

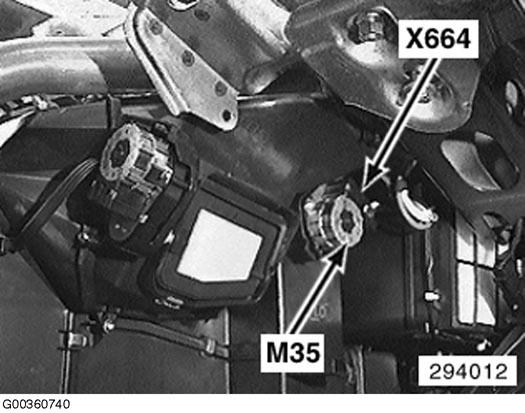

Fig 83: Center Of Dash

G00360740

Courtesy of BMW OF NORTH AMERICA, INC.

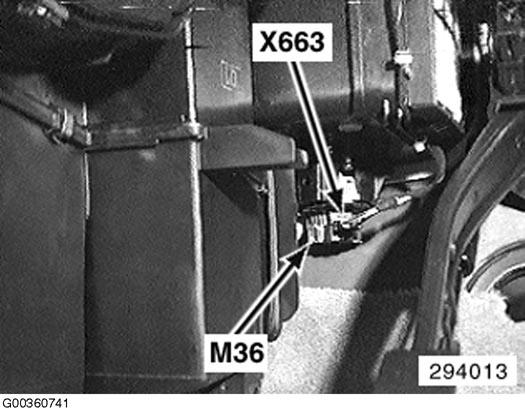

Fig 84: Center Of Dash

G00360741

Courtesy of BMW OF NORTH AMERICA, INC.

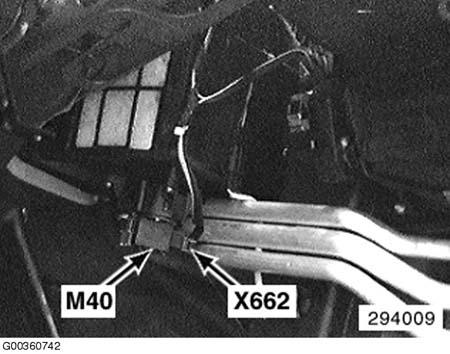

Fig 85: Center Of Dash

G00360742

Courtesy of BMW OF NORTH AMERICA, INC.

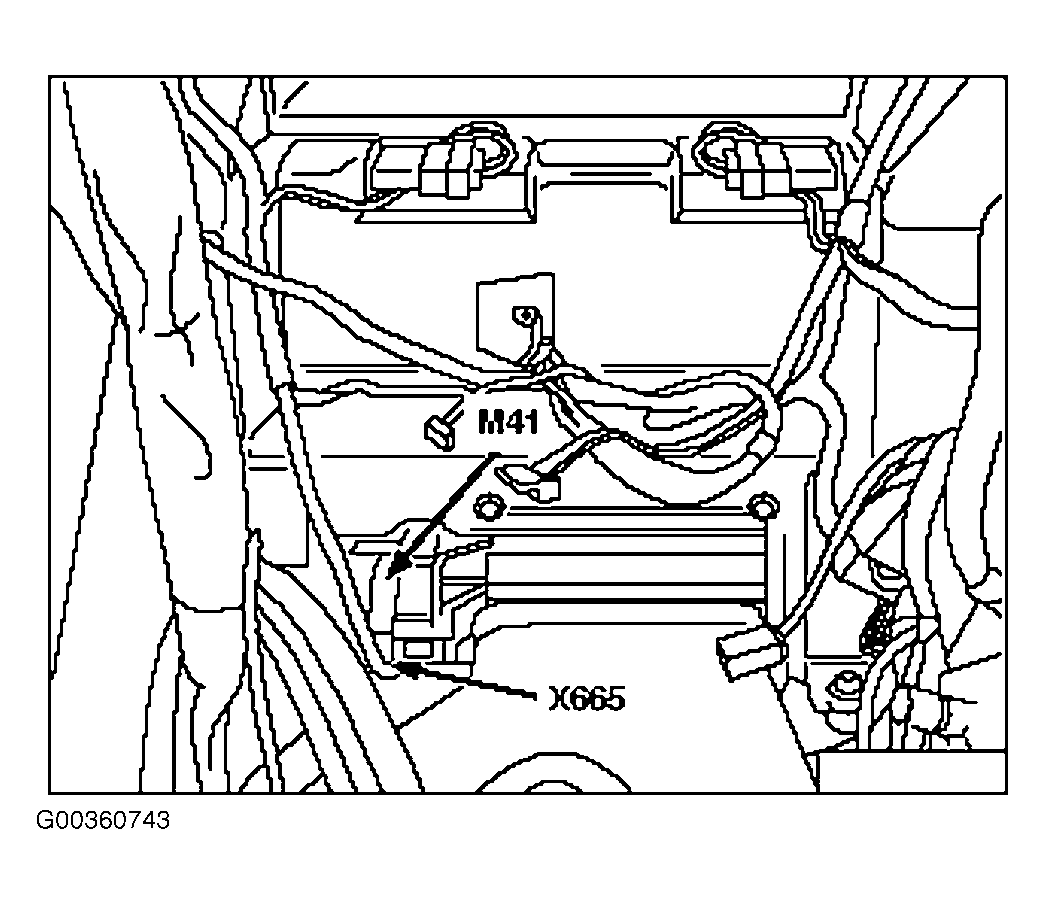

Fig 86: Behind Center Console

G00360743

Courtesy of BMW OF NORTH AMERICA, INC.

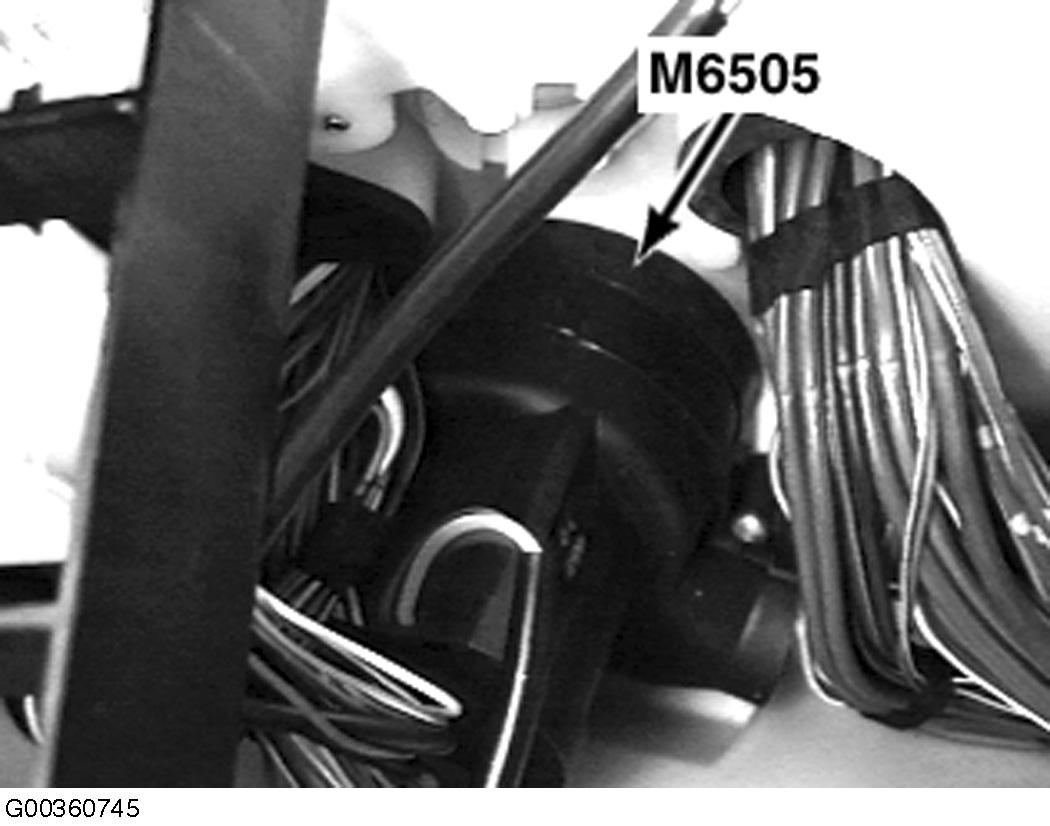

Fig 87: Right Rear Of Engine Compartment

G00360745

Courtesy of BMW OF NORTH AMERICA, INC.

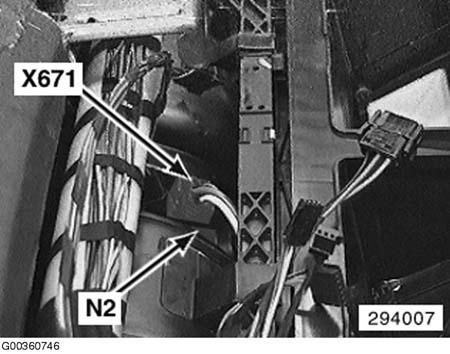

Fig 88: Center Top Of Dash

G00360746

Courtesy of BMW OF NORTH AMERICA, INC.

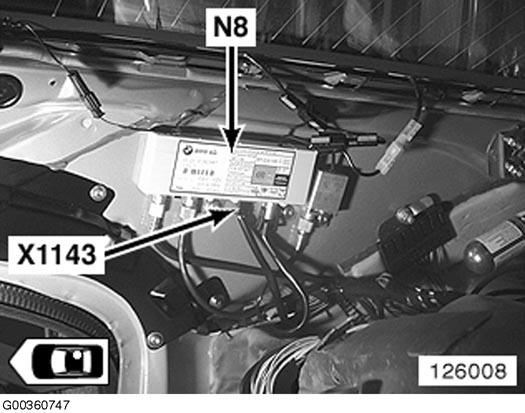

Fig 89: Right "C" Pillar

G00360747

Courtesy of BMW OF NORTH AMERICA, INC.

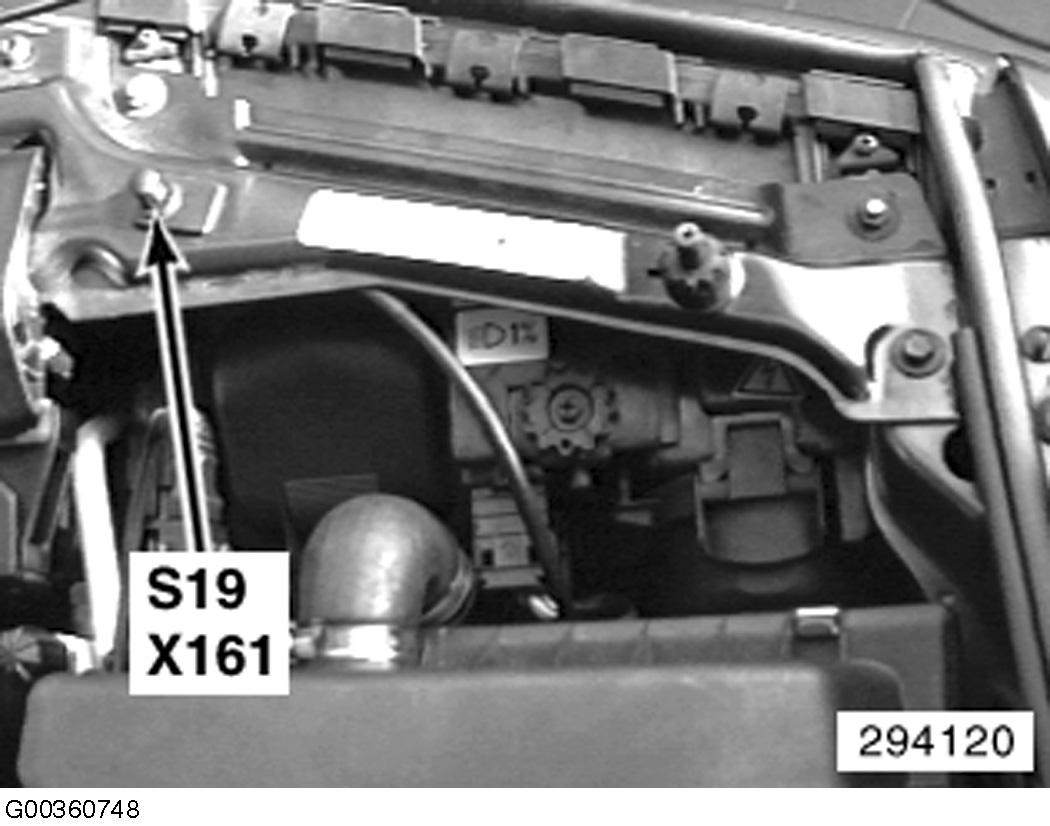

Fig 90: Right Front Of Engine Compartment

G00360748

Courtesy of BMW OF NORTH AMERICA, INC.

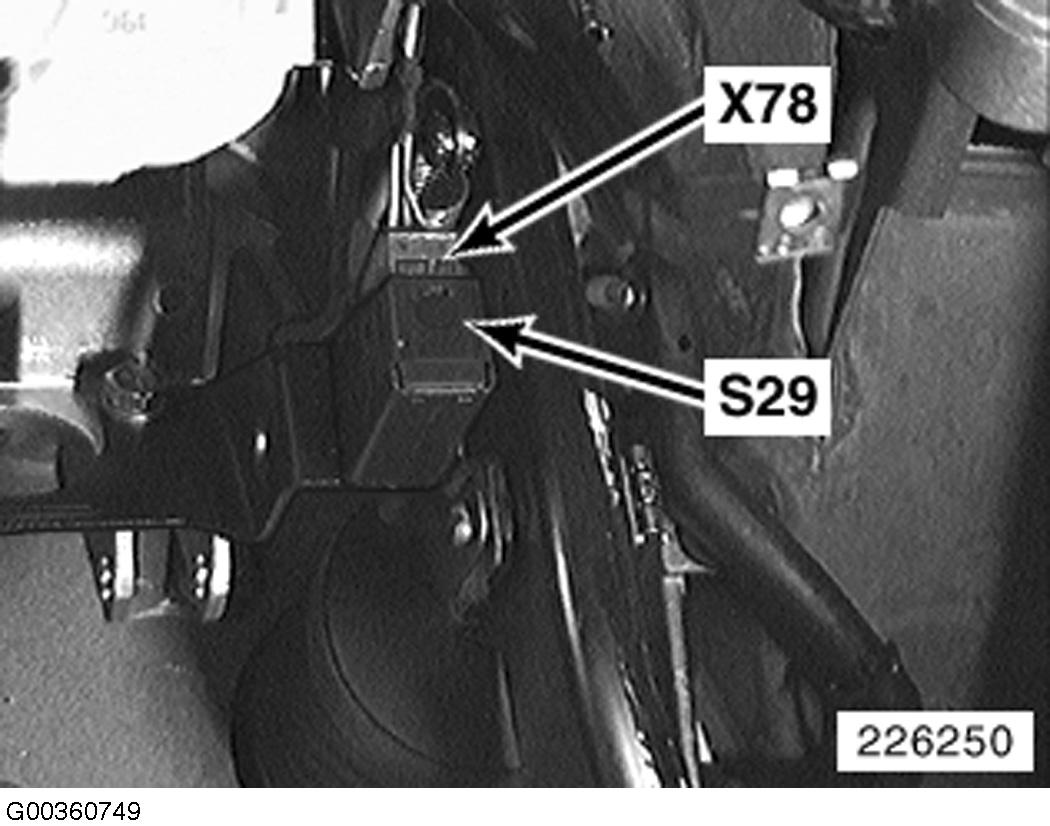

Fig 91: Left Side Of Dash

G00360749

Courtesy of BMW OF NORTH AMERICA, INC.

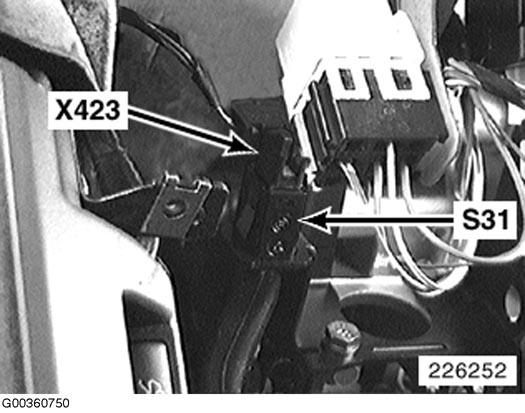

Fig 92: Left Side Of Dash

G00360750

Courtesy of BMW OF NORTH AMERICA, INC.

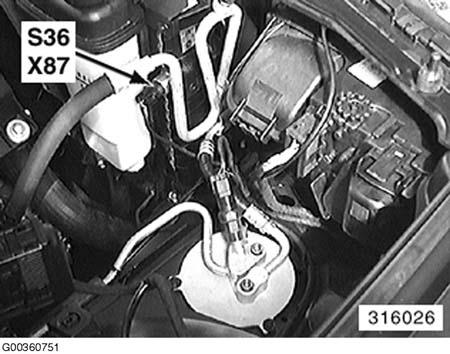

Fig 93: Right Front Of Engine Compartment

G00360751

Courtesy of BMW OF NORTH AMERICA, INC.

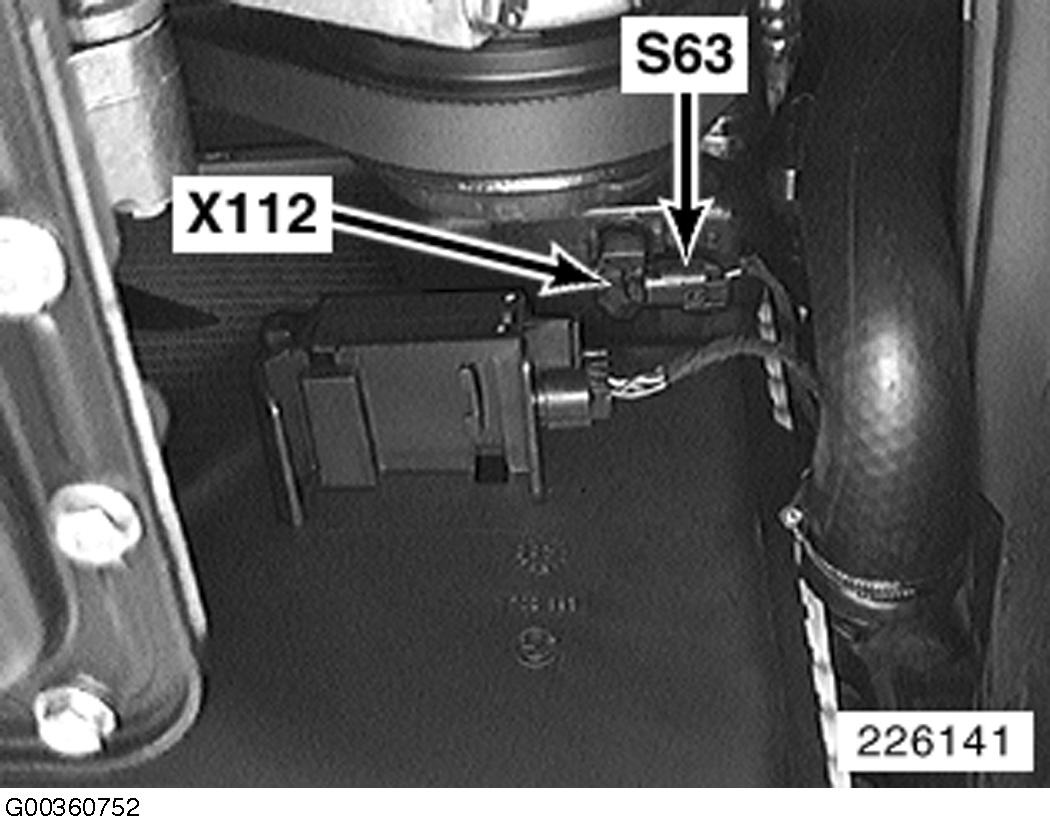

Fig 94: Right Front Of Engine Compartment

G00360752

Courtesy of BMW OF NORTH AMERICA, INC.

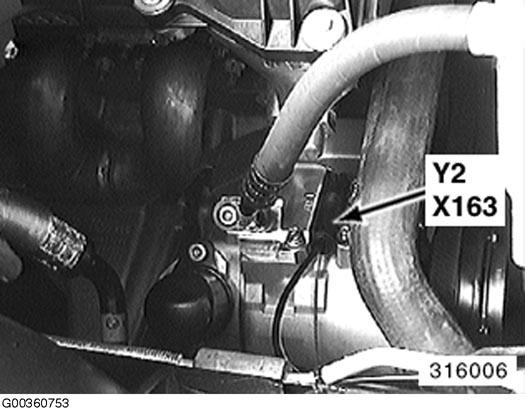

Fig 95: Right Front Of Engine Compartment

G00360753

Courtesy of BMW OF NORTH AMERICA, INC.

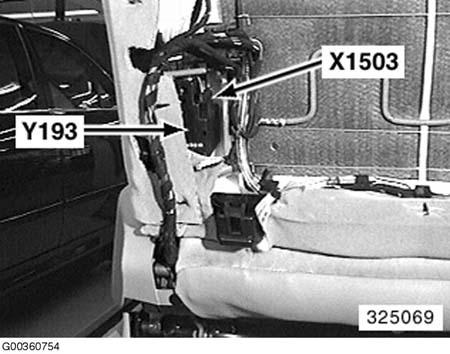

Fig 96: Driver's Seatback

G00360754

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 97: Passenger's Seatback

G00360755

Courtesy of BMW OF NORTH AMERICA, INC.

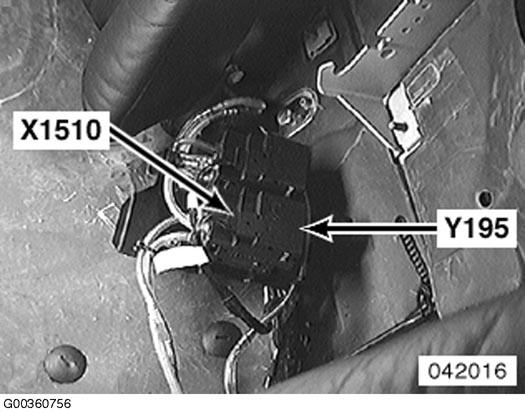

Fig 98: Below Rear Seat

G00360756

Courtesy of BMW OF NORTH AMERICA, INC.

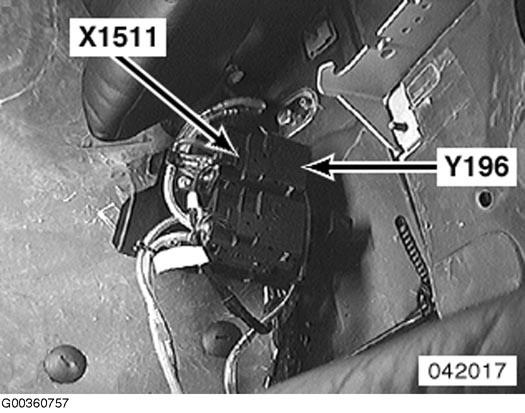

Fig 99: Below Rear Seat

G00360757

Courtesy of BMW OF NORTH AMERICA, INC.
