Control Units
WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 1998 BMW 750iL, 1998 BMW 740iL, 1998 BMW 740i, 1997 BMW 750iL, and 1997 BMW 740iL. However, it is still accessible from the selected car via links, so may be relevant.
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

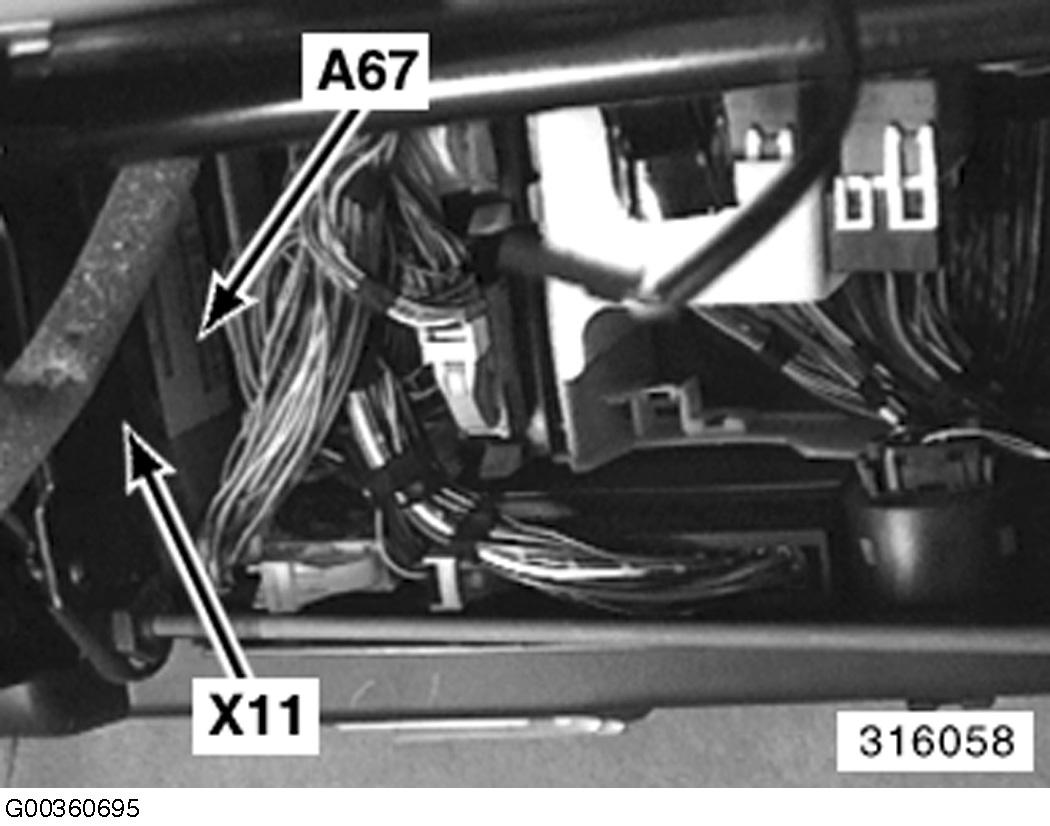

| ABS Control Module (A67) | Behind glove box. See Figure. |

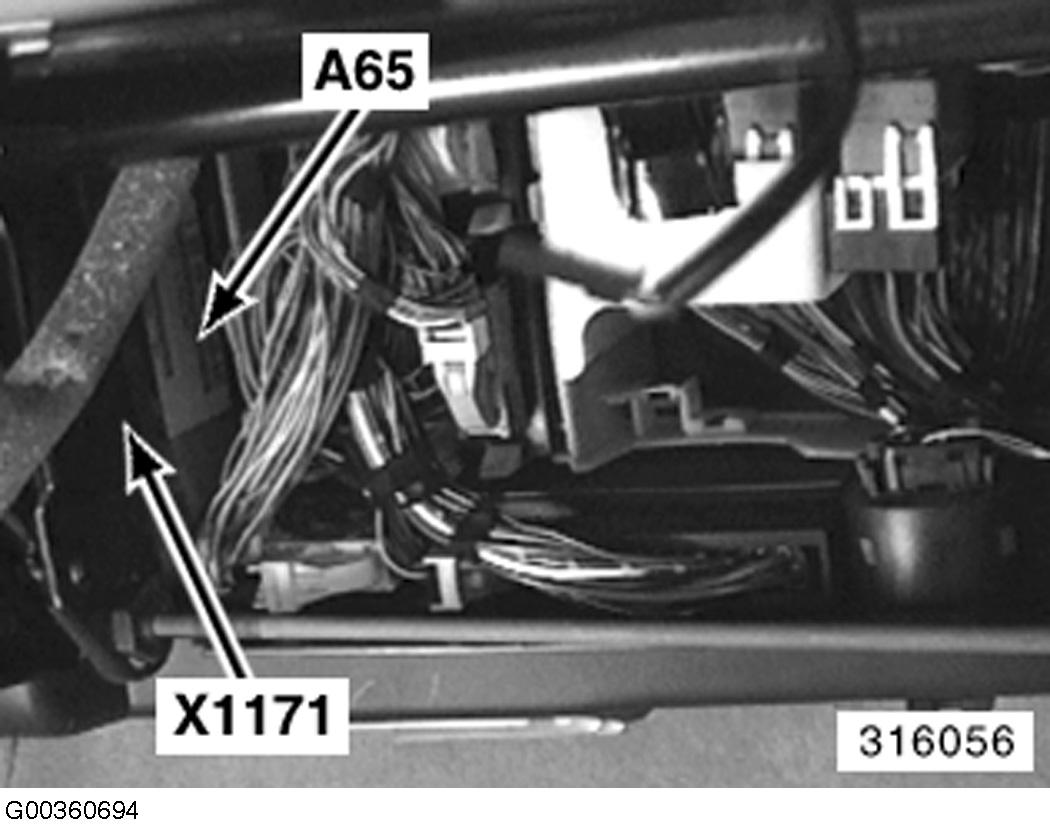

| ABS/DSC Control Module (A65) | Behind glove box. See Figure. |

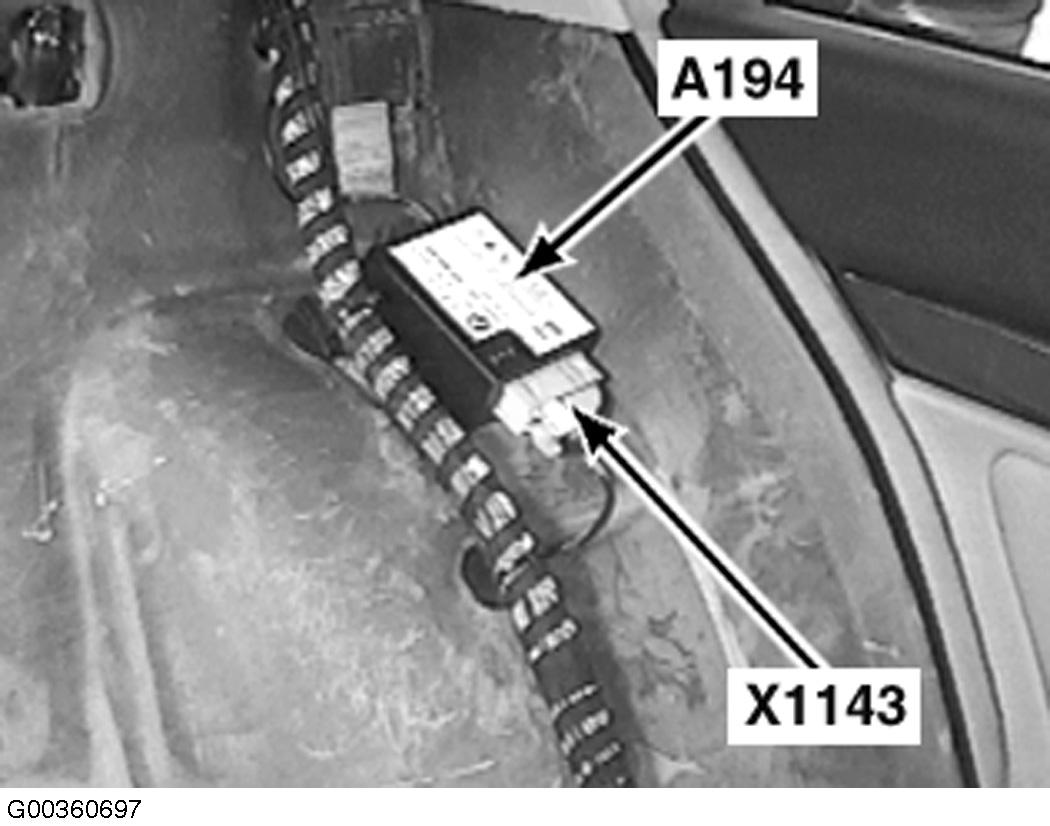

| Central Locking Remote Control (A194) | Below rear seat. See Figure. |

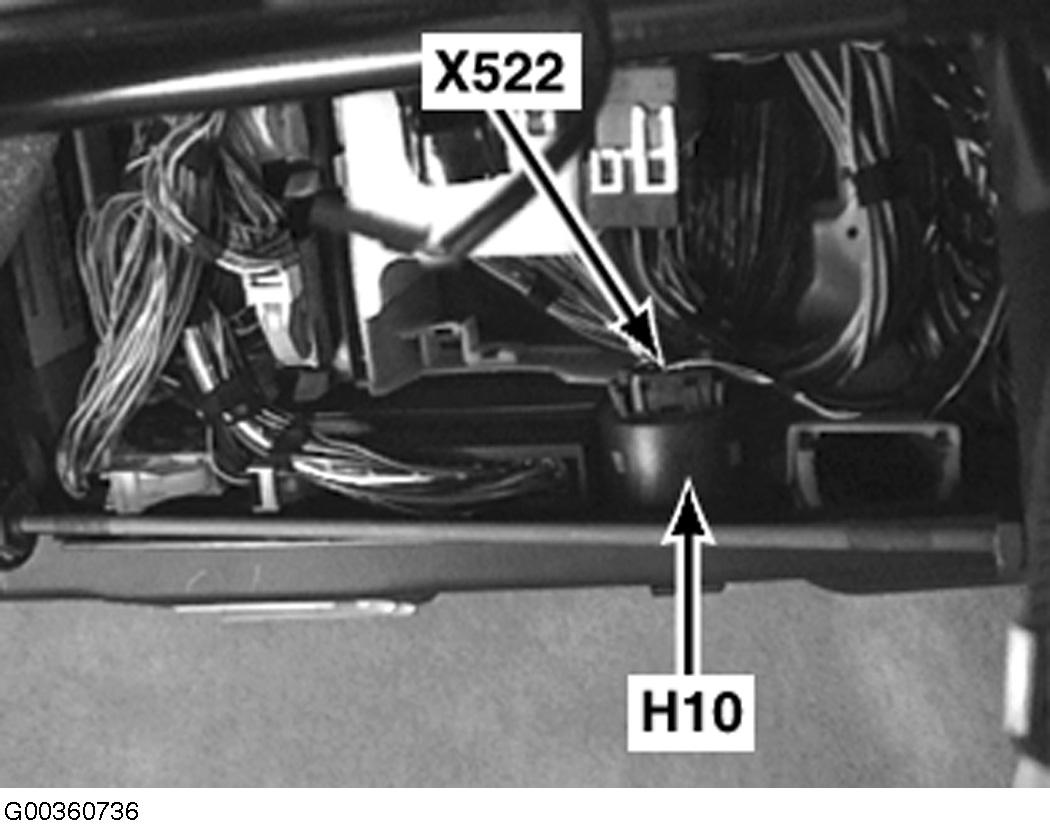

| Chime Module (H10) | Under glove box. See Figure. |

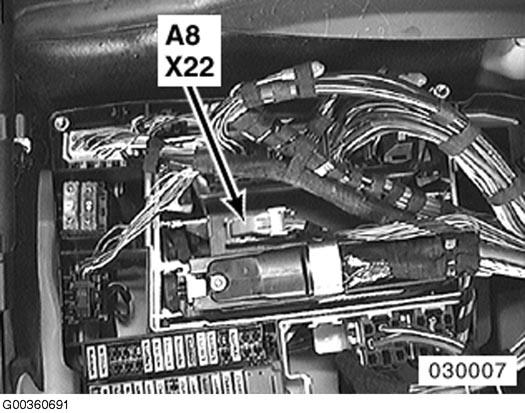

| Cruise Control Module (Tempomat) (A8) | Right rear of engine compartment. See Figure. |
| Engine Control Module I (DME) (A6010) | Right rear of engine compartment. |
| Engine Control Module II (DME) (A6020) | Right rear of engine compartment. |

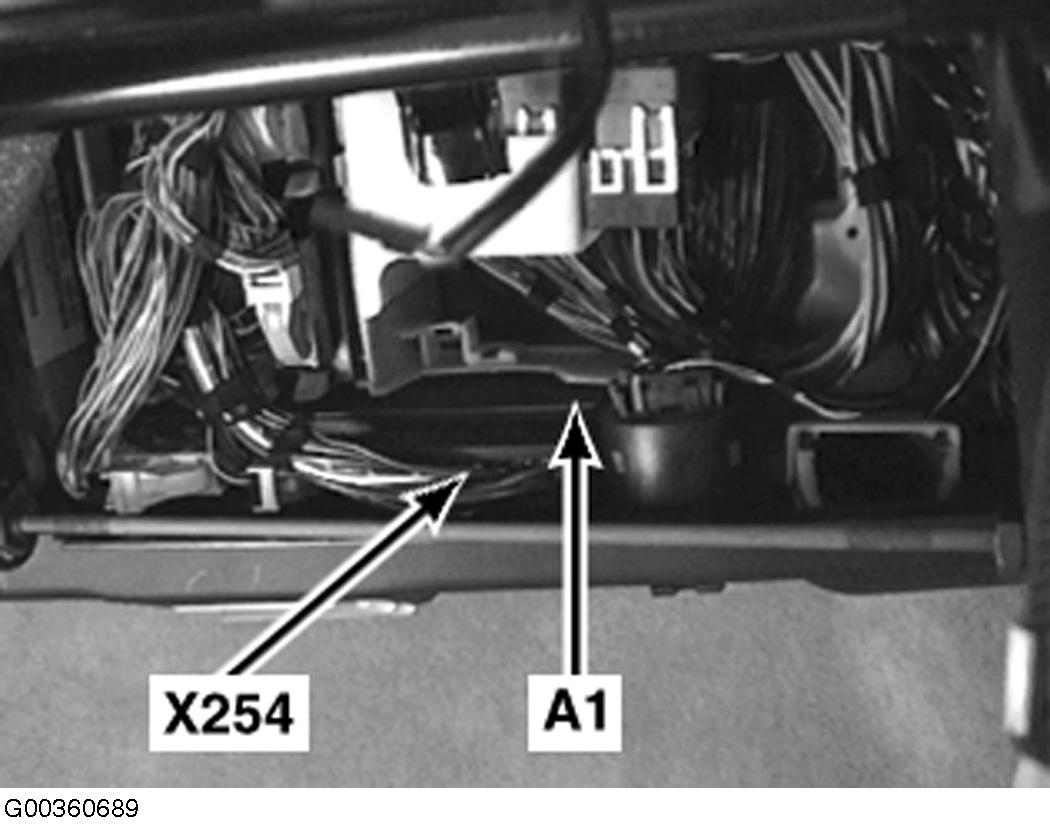

| General Module (A1) | Behind glove box. See Figure. |

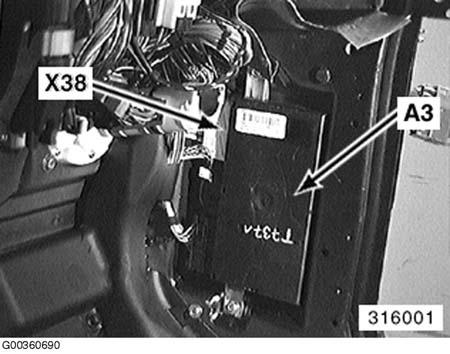

| Light Module (A3) | Right side of right footwell. See Figure. |

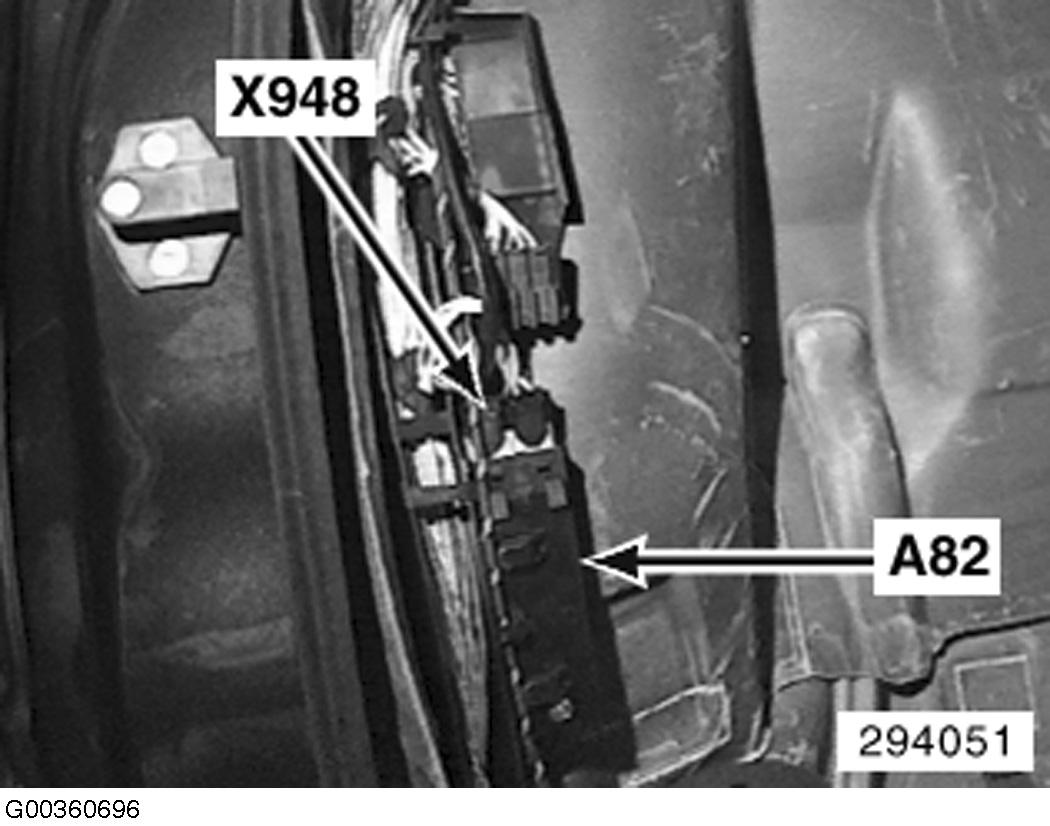

| Sun Blind Control Module (A82) | Below right rear seat. See Figure. |

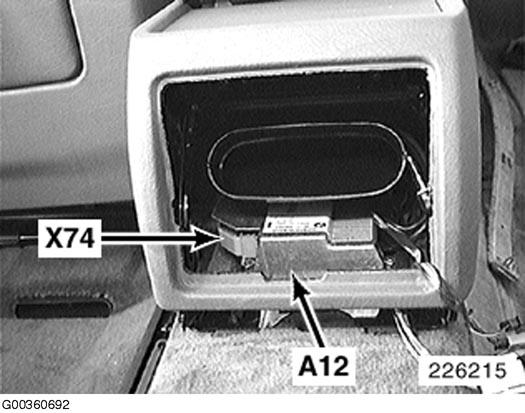

| Supplemental Restraint System Control Module (A12) | Rear center console. See Figure. |
| Transmission Control Module (AGS) (A8600) | Right rear of engine compartment. |
