Component Location Graphics

WARNING: This page is about a different car, the 1998 BMW Z3 and 1998 BMW M Roadster. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

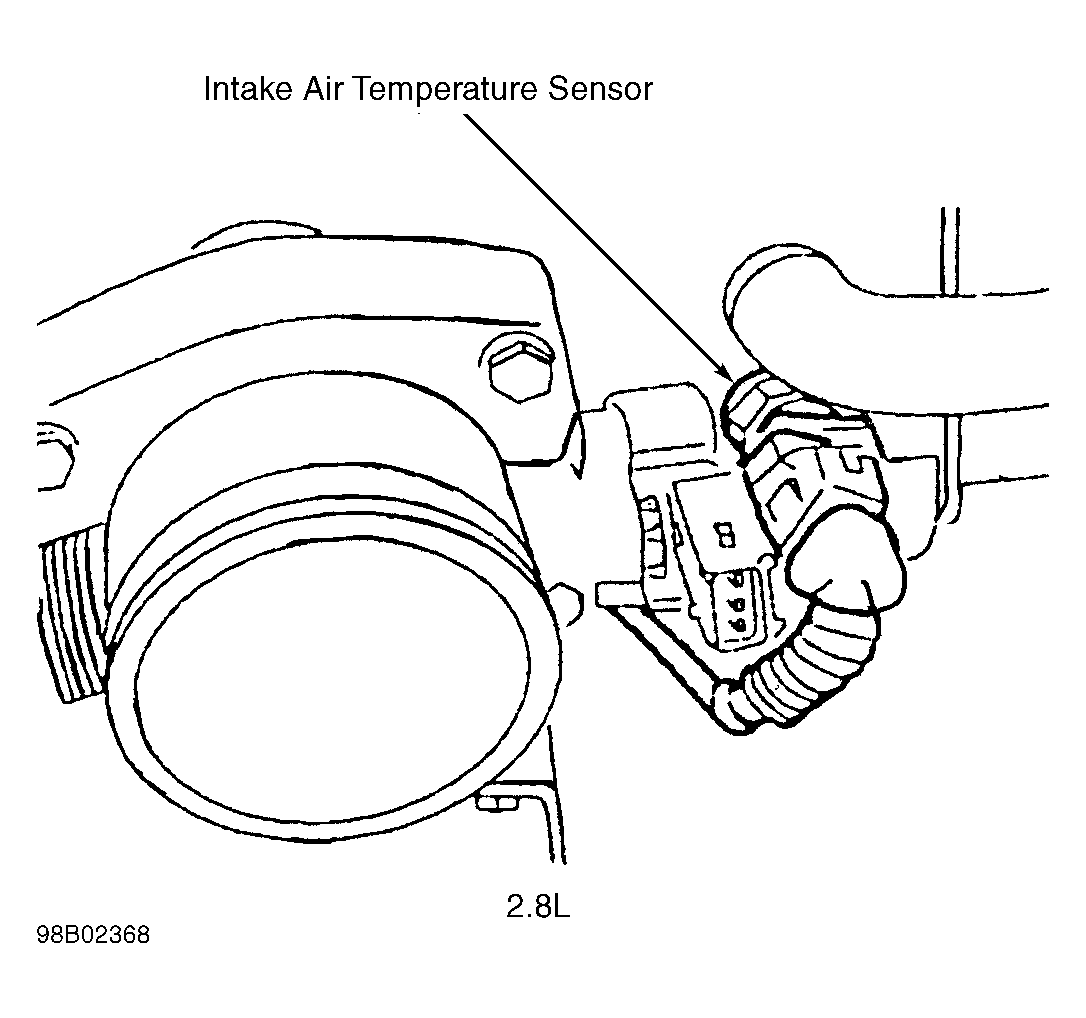

Fig 1: Intake Air Temperature Sensor (2.8L)

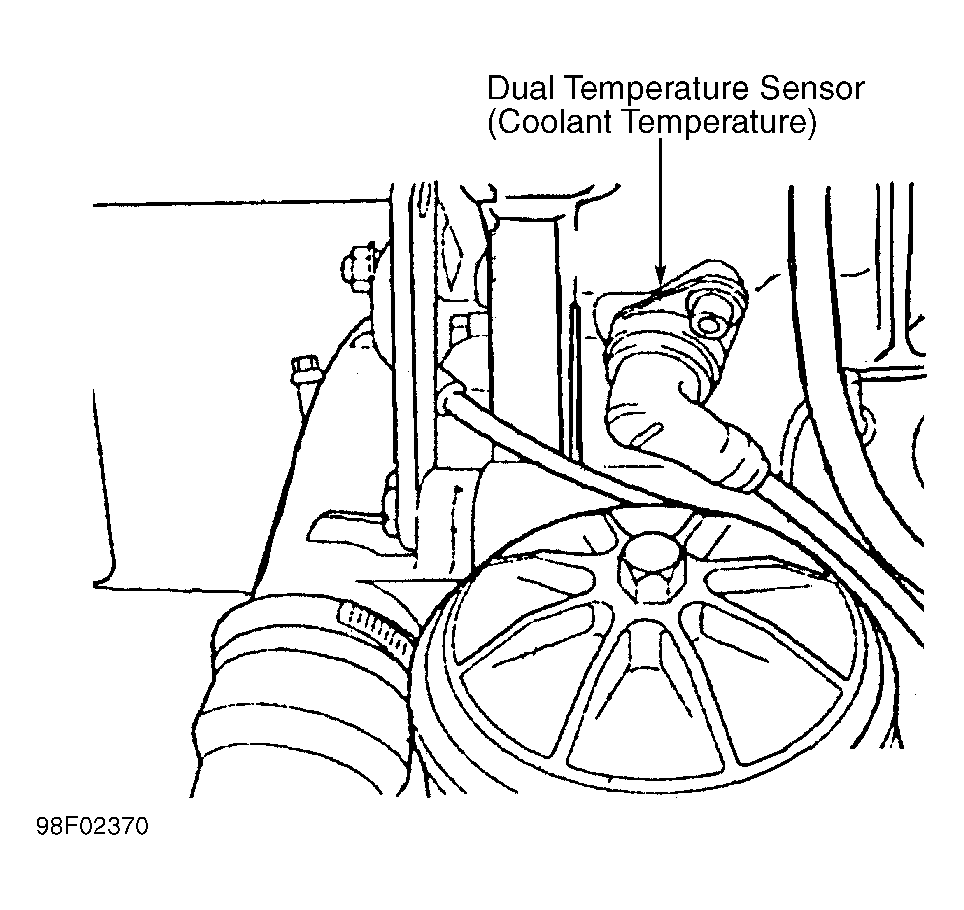

Fig 2: Dual Temperature Sensor (Coolant Temperature)

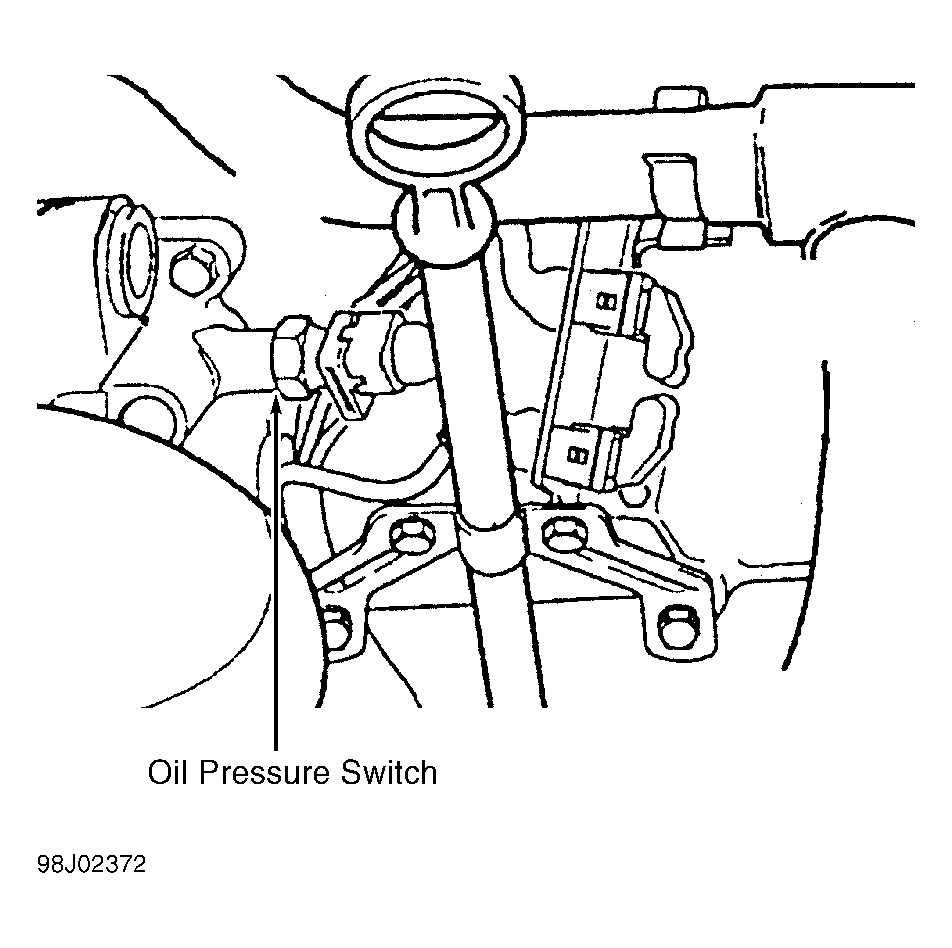

Fig 3: Oil Pressure Switch

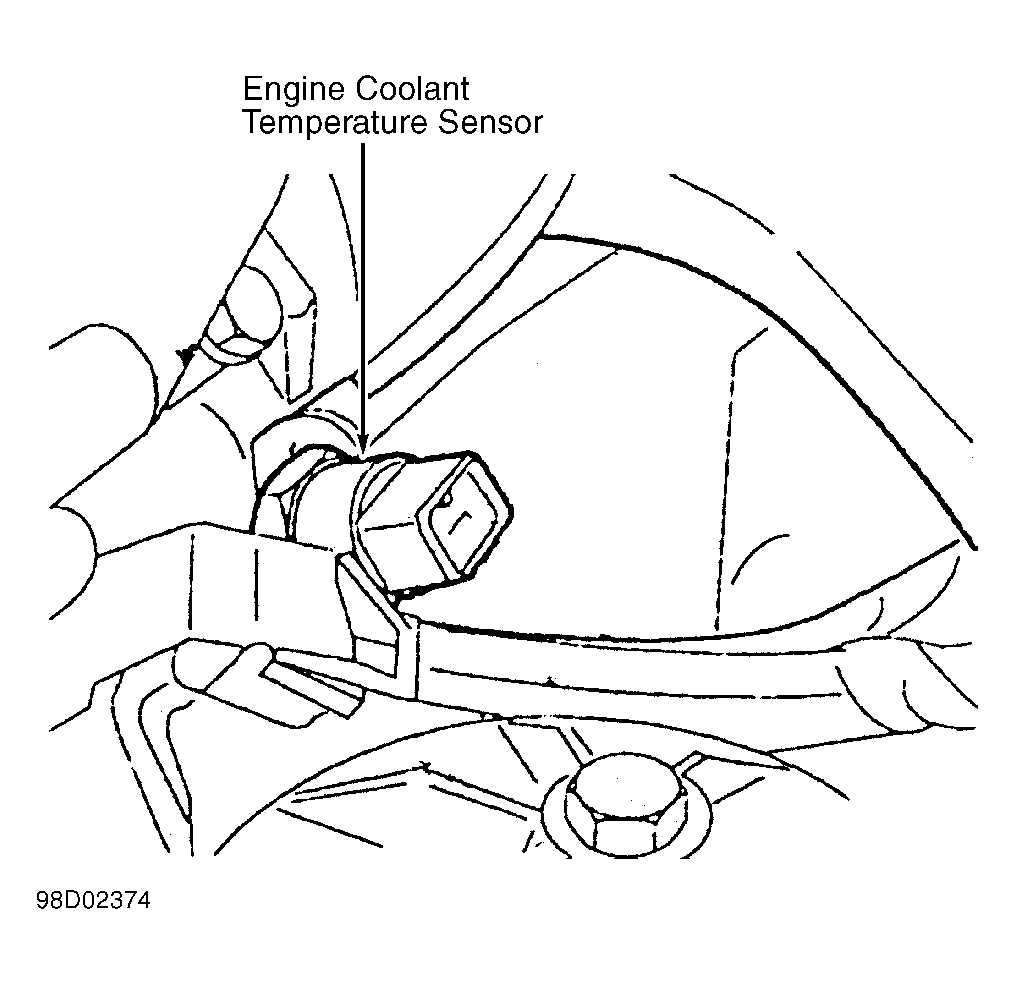

Fig 4: Engine Coolant Temperature Sensor

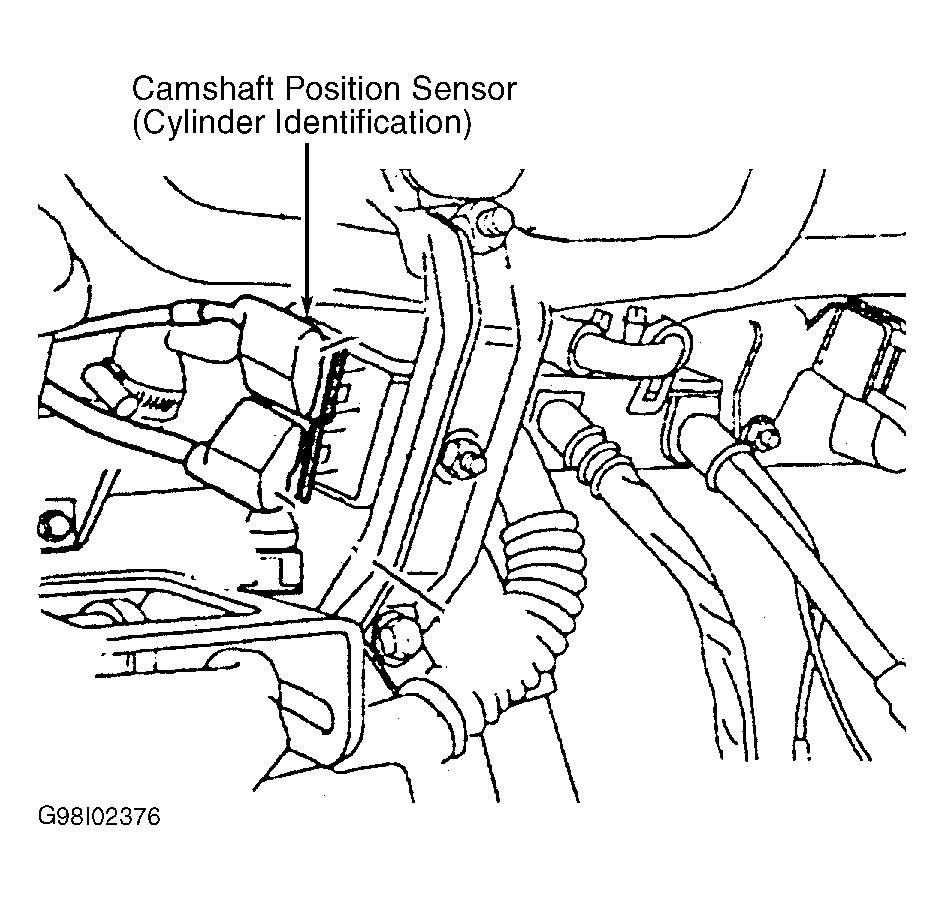

Fig 5: Camshaft Position Sensor (Cylinder Identification)

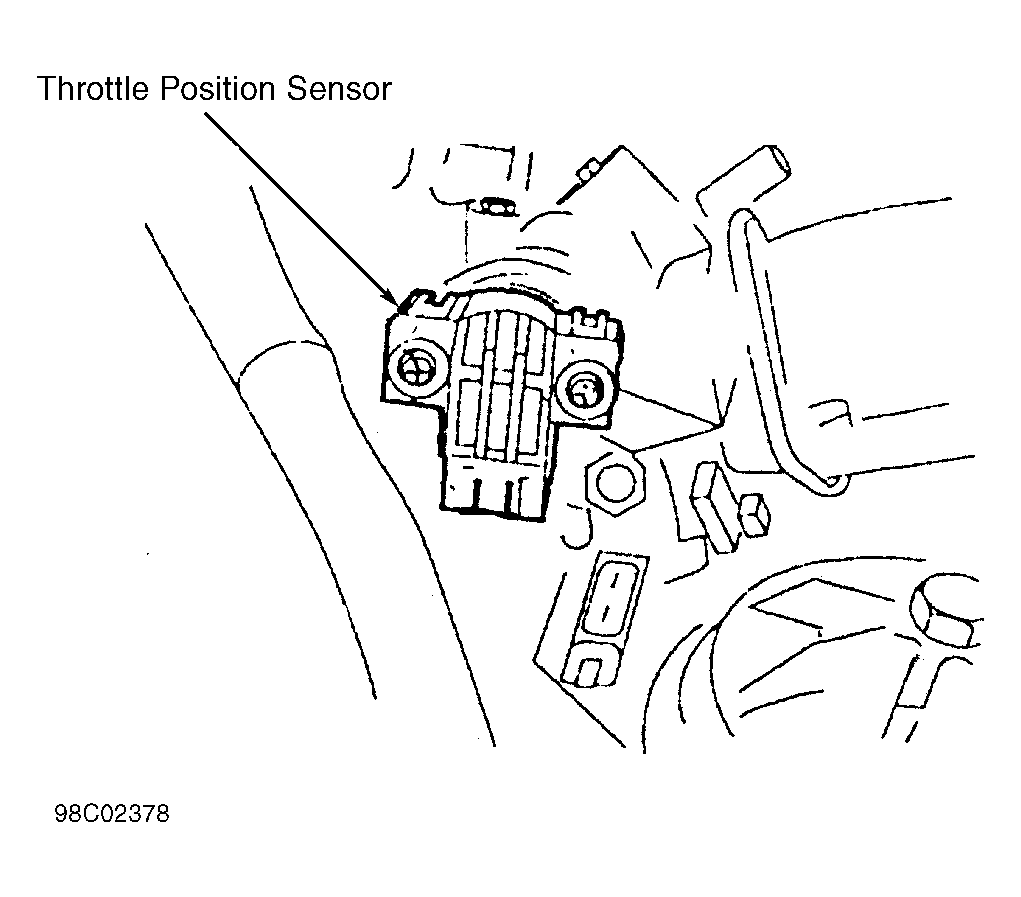

Fig 6: Throttle Position Sensor

Fig 7: Passenger's Compartment

Fig 8: Front Power Distribution Box

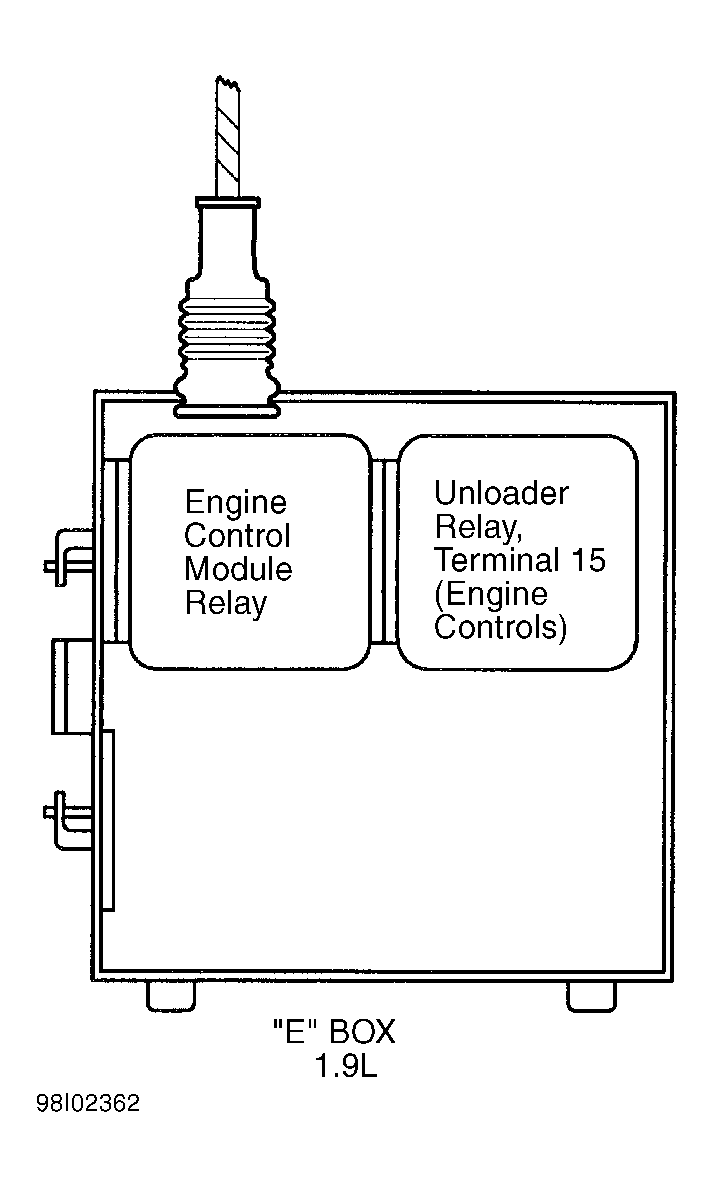

Fig 9: E-Box (1.9L)

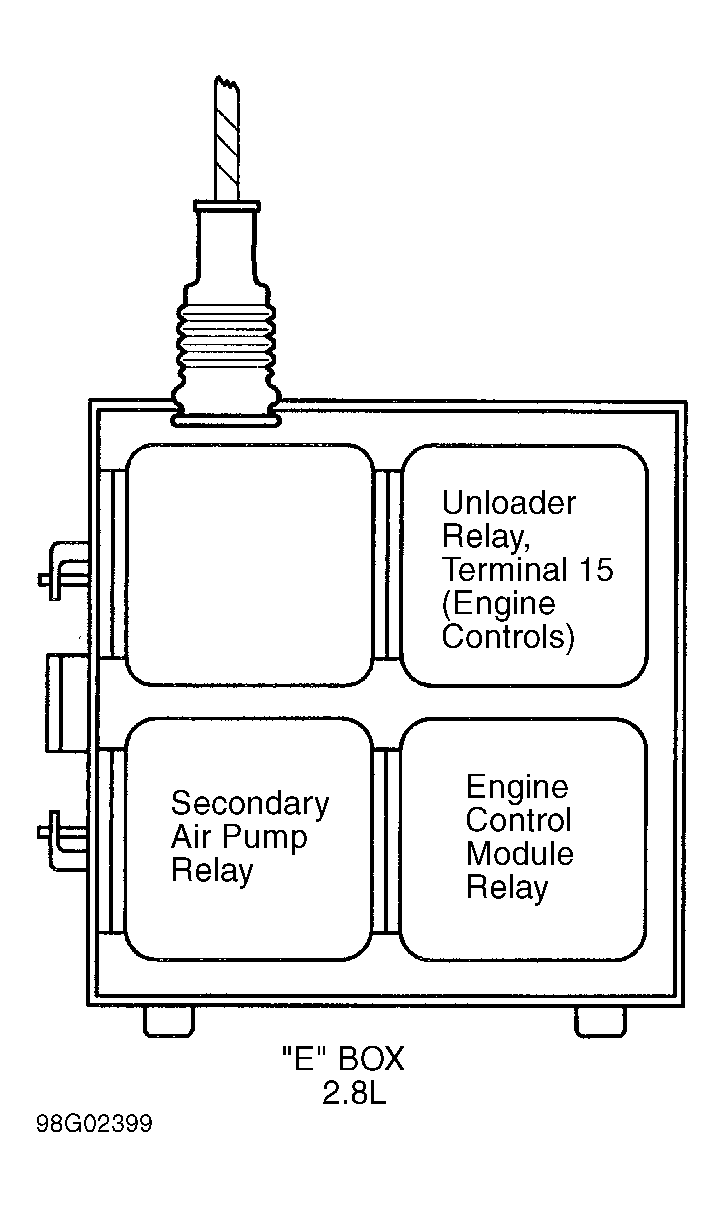

Fig 10: E-Box (2.8L)

Fig 11: Relay Panel
