61 35 132 Removing and installing/replacing central gateway module

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2015 BMW Alpina B7L xDrive, 2015 BMW Alpina B7 xDrive, 2015 BMW 750i xDrive, 2015 BMW 750Li xDrive, and 2015 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION) .

Necessary preliminary tasks

Disconnect BATTERY EARTH LEAD .
Disconnect both negative battery cables atF03
Remove trim panel for pedal mechanism . See 51 45 184 REMOVING AND INSTALLING/REPLACING TRIM PANEL FOR PEDAL ASSEMBLY (ECE ONLY) or 51 45 184 REMOVING AND INSTALLING/REPLACING TRIM PANEL FOR PEDAL ASSEMBLY (US ONLY) .

Disconnect plug connection (1).

NOTE: Cable shoe (4) is currently no longer installed.
If installed, release screw (2) and remove cable shoe (4).
Tightening torque 61 35 3AZ .

Pull central gateway module (3) off equipment holder (5) in direction of arrow.

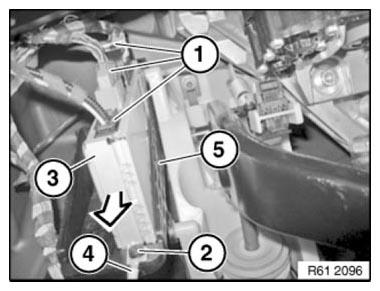

Fig 1: Removing Cable Shoe

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Make sure central gateway module (3) is correctly installed in equipment holder (5).

Replacement:

Carry out PROGRAMMING/ENCODING .

Perform FlexRay synchronization via path:

Body
Central Gateway Module
Initialize FlexRay
