61 13... Special tools for wiring harness repairs

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2015 BMW Alpina B7L xDrive, 2015 BMW Alpina B7 xDrive, 2015 BMW 750i xDrive, 2015 BMW 750Li xDrive, and 2015 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

Repair range, vehicle electrical system

Single parts for wiring harness repairs*

* Sourcing reference: BMW Parts Department

Fig 1: Identifying Special Tools For Vehicle Electrical System Repairing

Courtesy of BMW OF NORTH AMERICA, INC.

Release and press-out tool

Special tool 61 0 300
Special tool 61 0 400 (MINI N12/N14)
Special tool 61 1 100 (engine)

Handling:

Notes for OPENING CONTACTS AND LOCKS of different connector contact systems.

Fig 2: Identifying Special Tools 61 0 300, 61 0 400 (MINI N12/N14) And 61 1 100 (Engine)
Courtesy of BMW OF NORTH AMERICA, INC.

Cutting to length and stripping insulation from cables

Wire stripper MultiStrip10

Handling:

CUTTING CABLES TO LENGTH AND STRIP INSULATION

Fig 3: Identifying Wire Stripper Multistrip10
Courtesy of BMW OF NORTH AMERICA, INC.

Crimping stop parts (small contacts) and butt connectors

Special tool 61 4 320
1. Tool without crimping head
2. Crimping head (STRIPPING INSULATION AND CUTTING FIBRE-OPTIC CABLES TO LENGTH)
3. Crimping head (CRIMPING FIBRE-OPTIC CABLE CONTACTS)
4. Crimping head (CRIMPING MQS CONTACTS)
5. Crimping head (CRIMPING MPQ CONTACTS)

  Fig 4: Identifying Crimping Heads
  Courtesy of BMW OF NORTH AMERICA, INC.
6. Replacement blade (face-cutting fibre-optic cables)
7. Replacement blade with tool (insulation stripping unit)

Crimping stop parts (large contacts) and butt connectors

Special tool 61 0 200 (crimping set)
Special tool 61 0 210 (matrix set SLK 8)
Special tool 61 0 220 (matrix set SLK 2.8)
Special tool 61 0 230 (matrix set MAK 8 / DFK4)
Special tool 61 0 240 (butt connector 4.0 - 6.0 mm² )

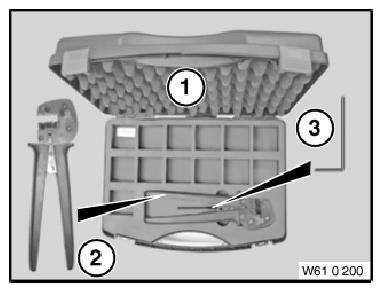

Fig 5: Identifying Special Tools For Crimping Stop Parts (Large Contacts) And Butt Connectors
Courtesy of BMW OF NORTH AMERICA, INC.
