Control Units
WARNING: This page is about a different car, the 1999 BMW 318ti. However, it is still accessible from the selected car via links, so may be relevant.
CONTROL UNITS
| Component | Component Location |
|---|---|
| ABS Control Module/Hydraulic Unit | On left rear side of engine compartment, near shock tower. |
| Anti-Theft Control Module (Alpine) | Behind glove box. |
| Board Computer (BC-LOW) | Behind center of dash, in center console. |
| Body Electronics Control Module (ZKE IV) | Behind glove box. See Figure . |
| Chime Module | Below left side of dash. |

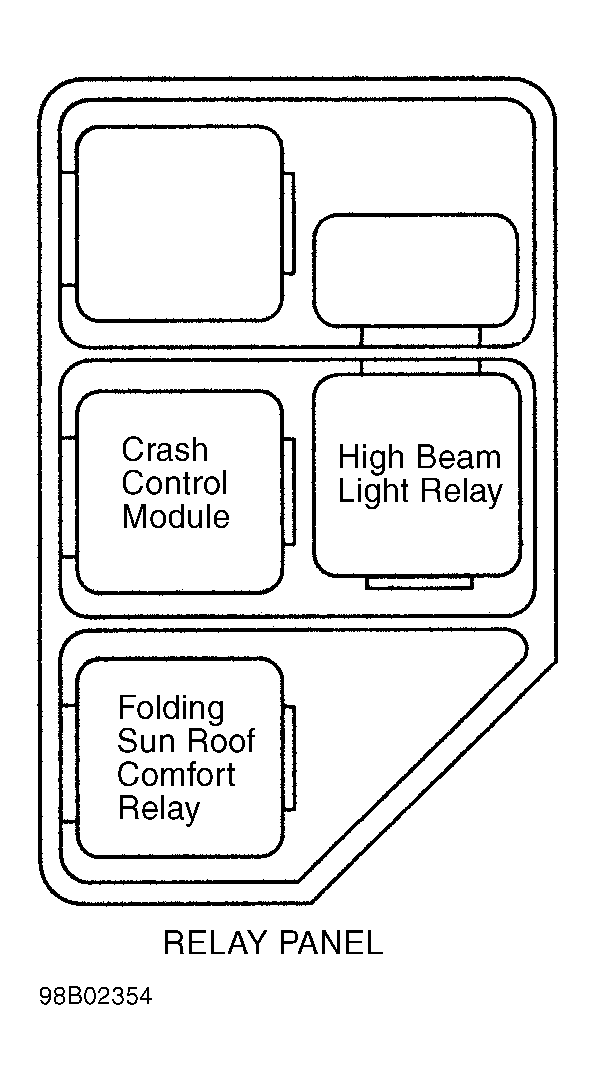

| Crash Control Module | On relay panel, under left side of dash. See Figure . |
| Cruise Control Module (Tempomat) | Under right side of dash, behind glove box. See Figure . |
| Electronic Immobilizer Control Module (EWS III) | Below left side of dash. |
| Engine Control Module | On right rear corner of engine compartment. See Figure . |
| Integrated Heating & Climate Control Module | In center of center console. |
| Rear Wiper/Washer Interval Control Module | In liftgate. |
| Slip Control Module (ABS/ASC) | Behind glove box. See Figure . |
| Sun Roof Control Assembly | Under roof center panel. |
| Supplemental Restraint System Control Module | Under rear seat. See Figure . |
| Tilt/Slide Sun Roof Control Assembly | In roof panel. |
| Transmission Control Module (EGS) | On right rear corner of engine compartment. See Figure . |
| Transmitter Module (EWS III) | On left side of steering column. |
| Wiper/Washer Module | Behind glove box. See Figure . |
| Wiper/Washer Module (LOW II) | Behind glove box. See Figure . |
