13 62 531 Replacing coolant temperature sensor (S63)
WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Danger of scalding!
Only perform this work after engine has cooled down.
Only perform this work after engine has cooled down.
IMPORTANT:
Protect alternator against coolant.
Cover alternator with suitable apparatus (risk of damage) .
Cover alternator with suitable apparatus (risk of damage) .
Necessary preliminary tasks
- Read out fault memory of DME control unit; if necessary, work through test schedules.
- Turn off ignition.
- Remove INTAKE FILTER HOUSING .

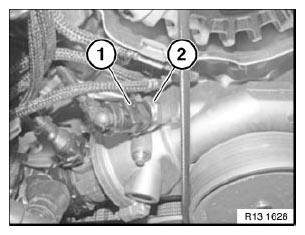

Unlock plug (1) and remove.
Unfasten coolant temperature sensor (2).
Installation:
Tightening torque 13 62 1AZ .
Delete fault memory.
