11-2000 Extractor

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

0490798 112000 Extractor Minimum set: Mechanical tools MW

NOTE: For crankshaft sprocket [released]

Storage Location: A8

Consisting of:

7 = 0494316 Synchronizing key

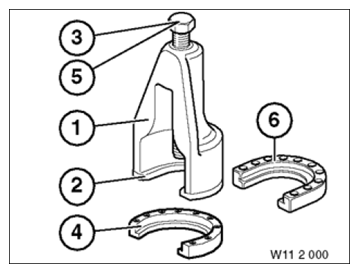

Fig 1: Identifying Extractor (0490798)
Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Engine: N73 Available only as a complete tool set 11 2 000 = 83 30 0 490 798 - as of 30.11.2011 [not available separately]

= 0490799 Bell housing
NOTE: Liquidation of existing inventory and after that available only as a complete tool set 11 2 000 = 83 30 0 490 798 - as of 30.11.2011 [not available separately]
= 0490800 Plate
NOTE: (Plate) Engine: M10, M30, S14, S38, N73 Liquidation of existing inventory and available only as a complete tool set 11 2 000 = 83 30 0 490 798 - as of 30.11.2011 [not available separately]
= 0490801 Spindle
NOTE: Engine: M10, M30, M70, M73, S14, S38, N73 Liquidation of existing inventory and available only as a complete tool set 11 2 000 = 83 30 0 490 798 - as of 30.11.2011 [not available separately]
= 0490802 Plate
NOTE: Engine: M50, M52, M60, M62 Liquidation of existing inventory and available only as a complete tool set 11 2 000 = 83 30 0 490 798 - as of 30.11.2011 [not available separately]
= 0490803 Spindle
NOTE: (Spindle 165 mm) Engine: M50, M52, M60, M62 Available only as a complete tool set 11 2 000 = 83 30 0 490 798 - as of 30.11.2011 [not available separately]
= 0490804 Plate
NOTE: (Plate) Engine: M70, M73, N73 Available only as a complete tool set 11 2 000 = 83 30 0 490 798 - as of 30.11.2011 [not available separately]
