63 11... Installing headlight repair kit
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove headlight. See LEFT XENON HEADLIGHT , RIGHT XENON HEADLIGHT , LEFT ADAPTIVE HEADLIGHT , or RIGHT ADAPTIVE HEADLIGHT .
NOTE:

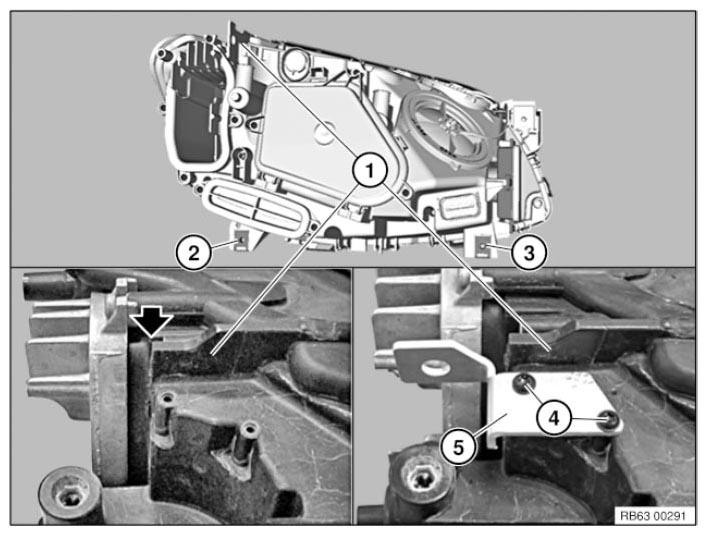

Damaged retaining tabs (1, 2, 3) can be replaced with the repair kit.
Replacement of headlight is not required!
If necessary, use screws from BMW Parts Department 7 225 228 repair kit.
Remove damaged retaining tab (1) as shown (see arrow in illustration).
Fit holder (5) and secure with screws (4).
NOTE:
If necessary, drill out screw holes in holder.

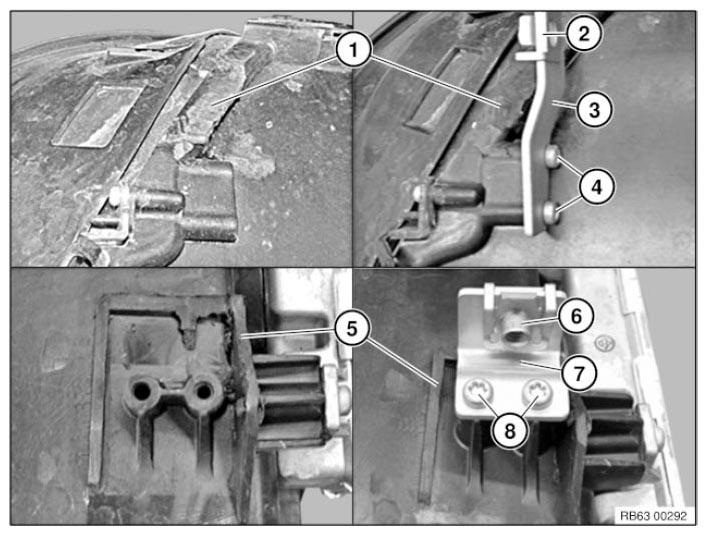

Retaining tab 2 of first image:
Remove damaged retaining tab (1) as shown.
Fit holder (3) and secure with screws (4).
Slide clamp (2) onto holder (3).
Retaining tab 3 of first image:
Remove damaged retaining tab (5) as shown.
Fit holder (7) and secure with screws (8).
Slide clamp (6) onto holder (7).
NOTE:
If necessary, drill out screw holes in holder.
After installation:
