Component Location Graphics

WARNING: This page is about a different car, the 2001 BMW Z3. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Engine Compartment

G00144943

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 2: Left Front Of Engine

G98F02370

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 3: Front Of Engine

G98I02376

Courtesy of BMW OF NORTH AMERICA, INC.

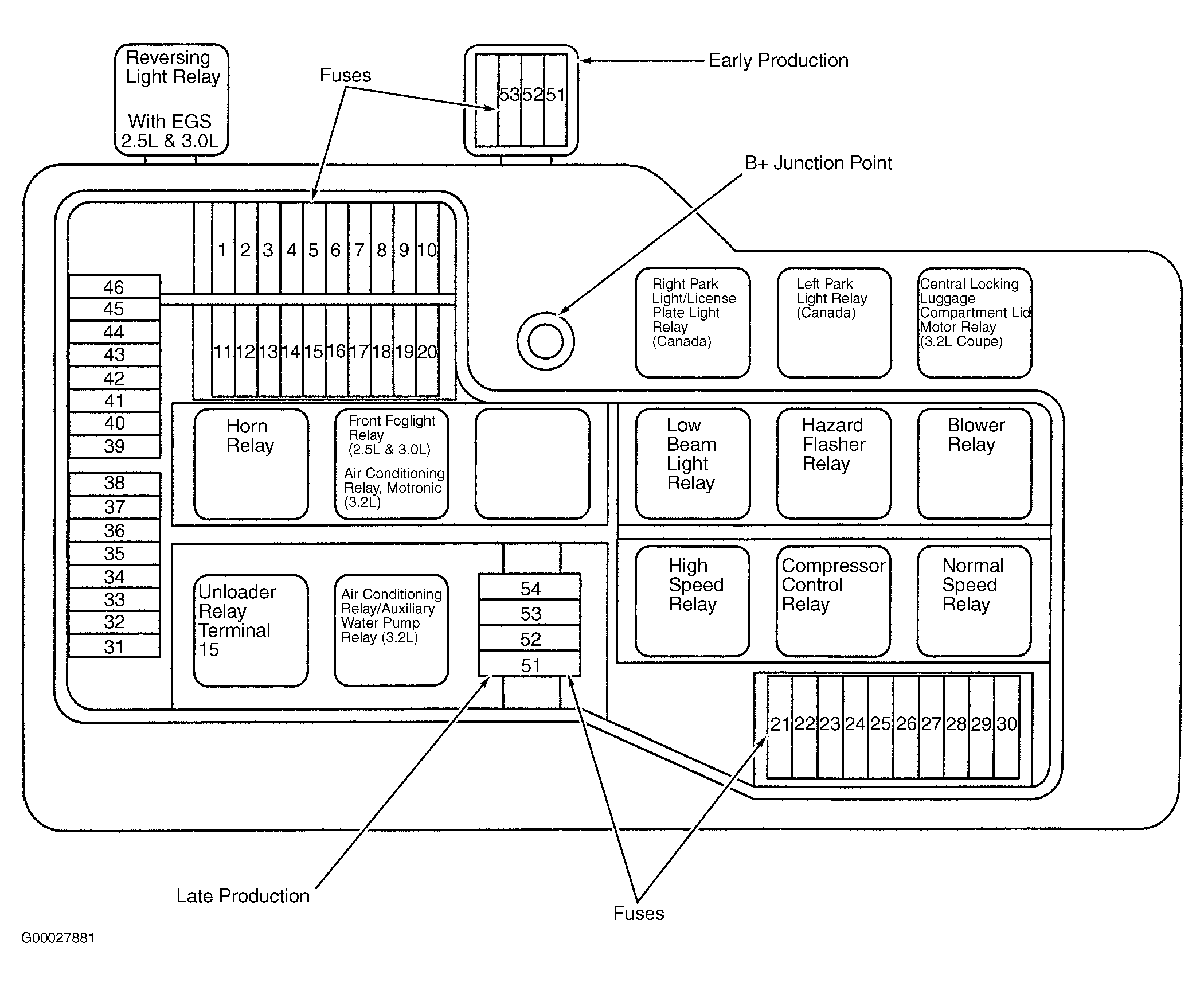

Fig 4: Front Power Distribution Box

G00027881

Courtesy of BMW OF NORTH AMERICA, INC.

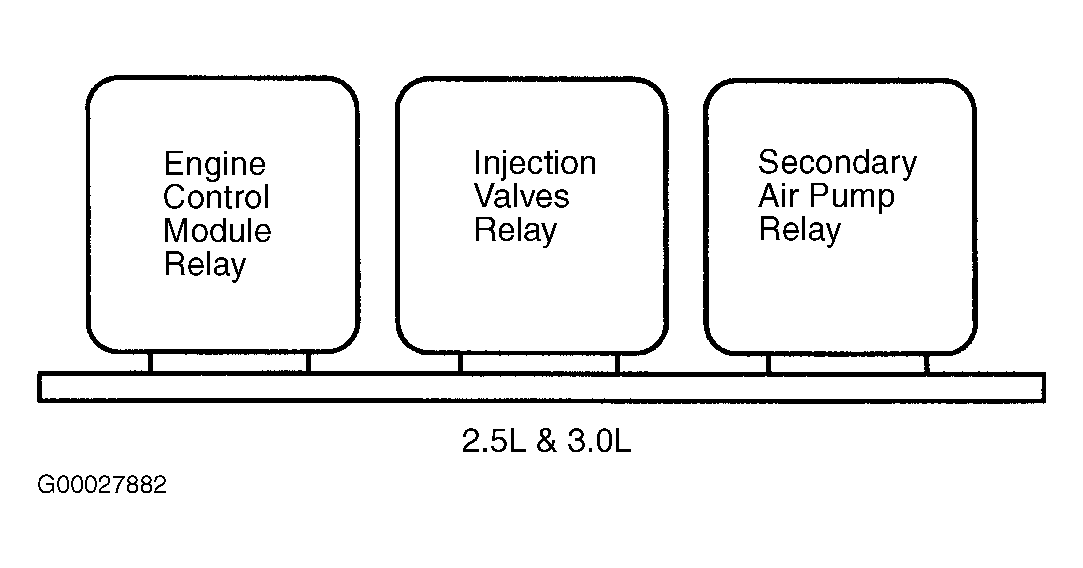

Fig 5: E-Box (2.5L & 3.0L)

G00027882

Courtesy of BMW OF NORTH AMERICA, INC.

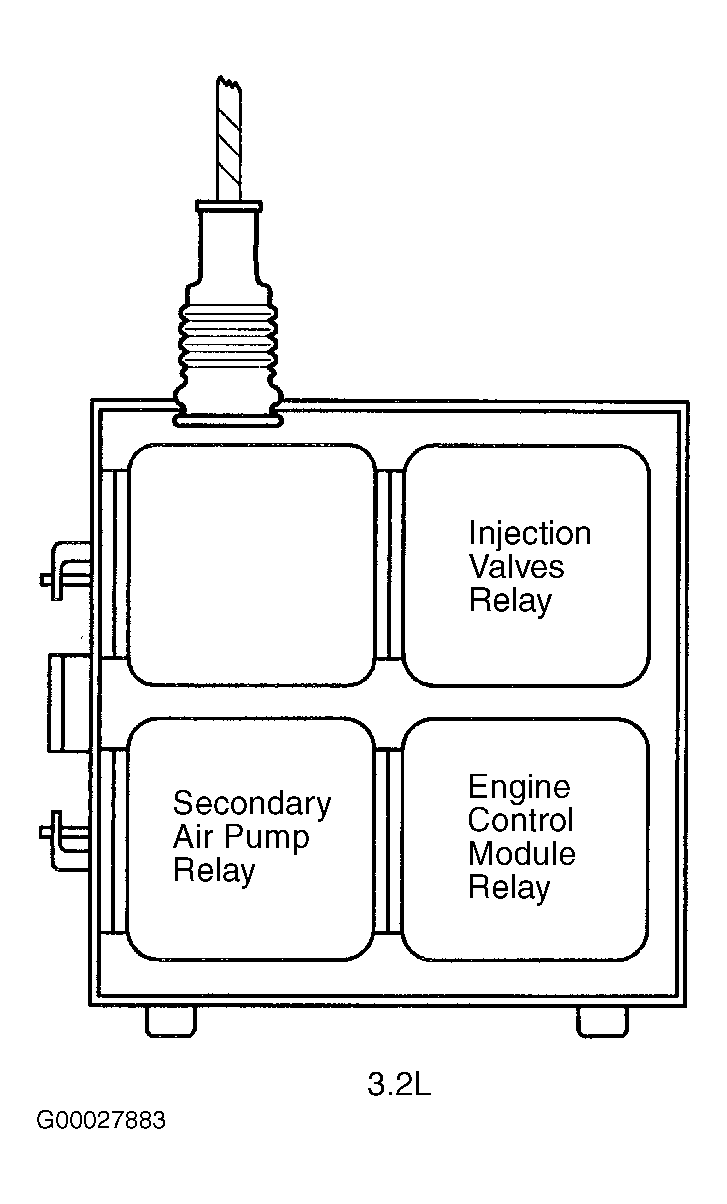

Fig 6: E-Box (3.2L)

G00027883

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 7: Relay Panel

G98C02364

Courtesy of BMW OF NORTH AMERICA, INC.
