99 00... Miscellaneous painting

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Follow GENERAL INSTRUCTIONS ON PAINTING .

The graphics are schematic representations and are to be applied to the relevant vehicle type.

Engine compartment, complete

Carry over the area shown symmetrically to the other side of the car.

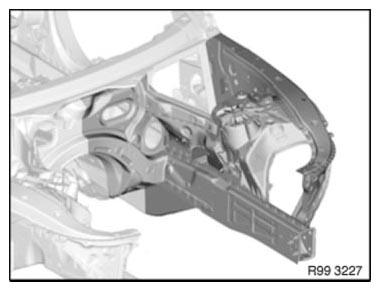

Fig 1: Identifying Engine Compartment Area
G06897783Courtesy of BMW OF NORTH AMERICA, INC.

Engine bulkhead

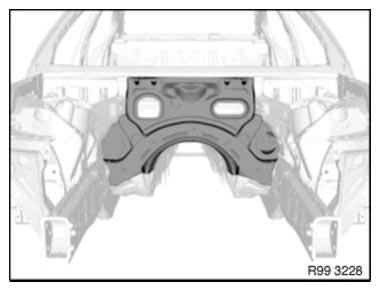

Fig 2: Identifying Engine Bulkhead Area
G06897784Courtesy of BMW OF NORTH AMERICA, INC.

Engine support (partial replacement before spring strut dome)

Inner side shown

Fig 3: Identifying Engine Support (Inner Side)
G06897785Courtesy of BMW OF NORTH AMERICA, INC.

Engine support (partial replacement before spring strut dome)

Outer side shown

Fig 4: Identifying Engine Support (Outer Side)
G06897786Courtesy of BMW OF NORTH AMERICA, INC.

Engine support (inside only)

Fig 5: Identifying Engine Support (Inside)
G06897787Courtesy of BMW OF NORTH AMERICA, INC.

Wheel arch, front, complete

Inner side shown

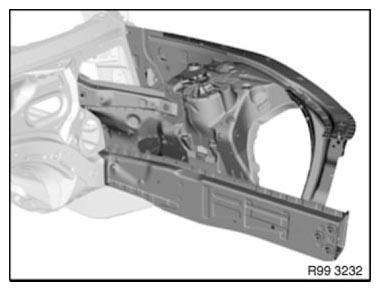

Fig 6: Identifying Wheel Arch (Inner Side)
G06897788Courtesy of BMW OF NORTH AMERICA, INC.

Wheel arch, front, complete

Outer side shown

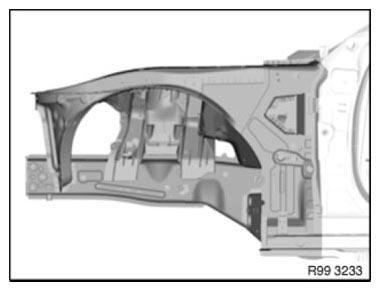

Fig 7: Identifying Wheel Arch (Outer Side)
G06897789Courtesy of BMW OF NORTH AMERICA, INC.

Luggage compartment floor

Carry over the area shown symmetrically to the other side of the car.

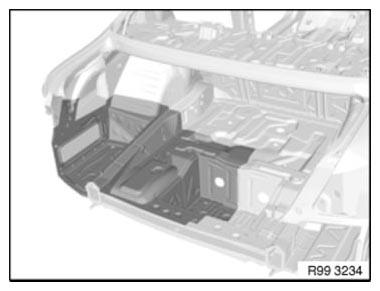

Fig 8: Identifying Luggage Compartment Floor Area
G06897790Courtesy of BMW OF NORTH AMERICA, INC.
