61 35 910 Removing and installing/replacing control unit of electronic immobilizer
WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Read and comply with notes on protection against electrostatic damage (ESD protection).
Necessary preliminary tasks:
- Disconnect battery negative lead
- Remove trim panel for pedal assembly. See 51 45 185 REMOVING AND INSTALLING/REPLACING TRIM FOR PEDAL ASSEMBLY

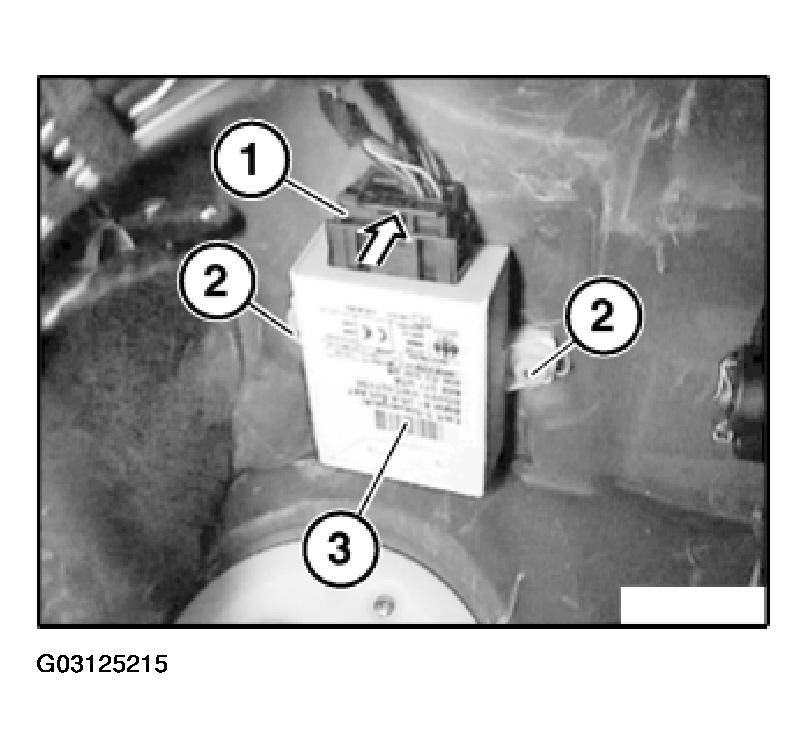

Unfasten plug connection (1) and disconnect.
NOTE:
Secure control unit of electronic immobilizer (3) against falling out.
Release screws (2) and remove control unit of electronic immobilizer (3).
Replacement:
Carry out programming/coding.
