Special Tools

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 BMW 745i, 2004 BMW 745Li, 2003 BMW 745i, 2003 BMW 745Li, and 2002 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

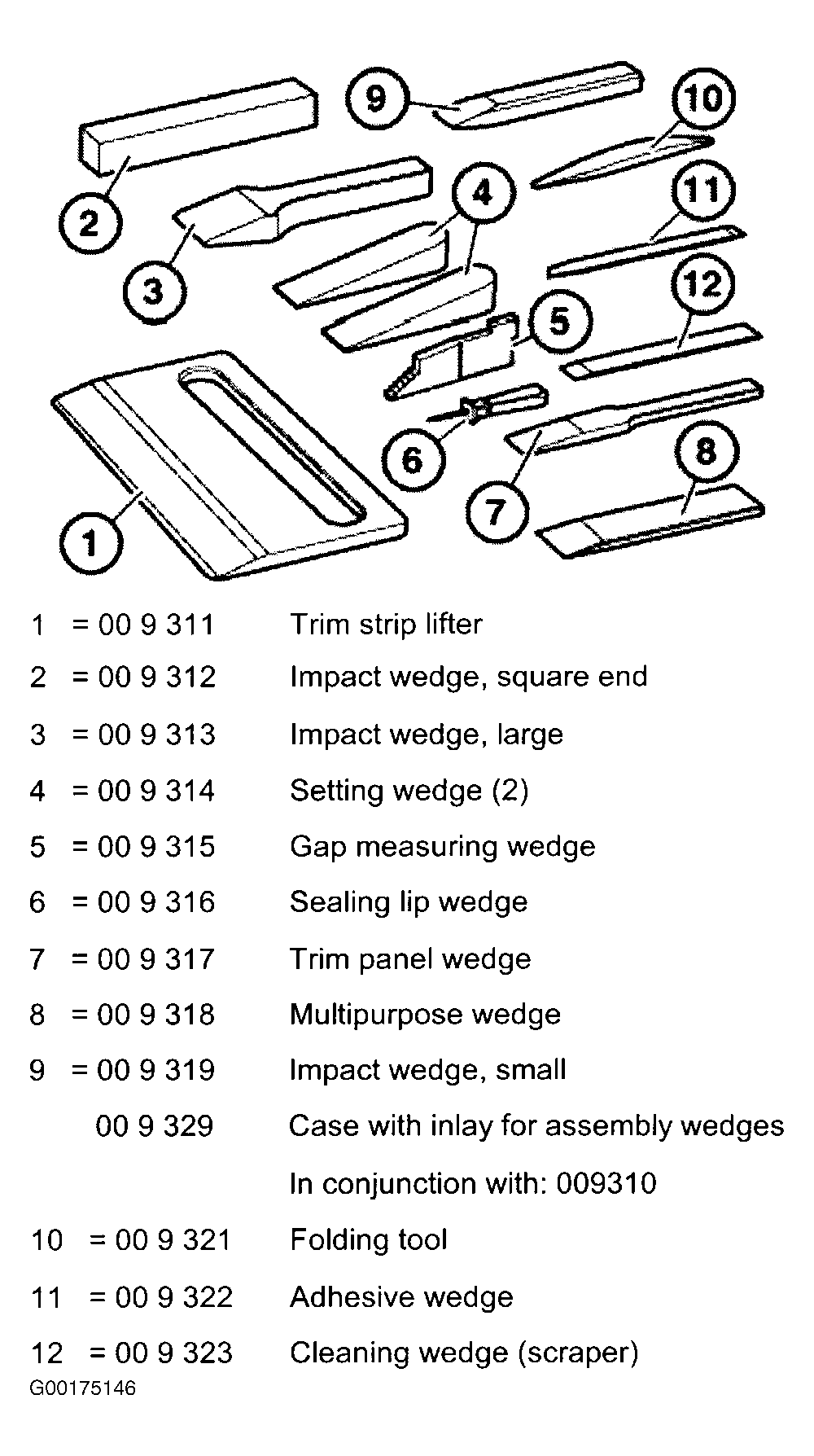

Fig 1: Identifying Assembly Wedges (00 9 310)

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 2: Identifying Disassembly Aid (00 9 340)

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 3: Identifying Release Hook (64 1 030)

Courtesy of BMW OF NORTH AMERICA, INC.
