Steering Column: Disassembly

WARNING: This page does not describe the selected car, but rather 37 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2004 BMW 330xi, and 2004 BMW 330i. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove steering column. See STEERING COLUMN .
  2. Unfasten screws and remove cable duct. See Fig 1.

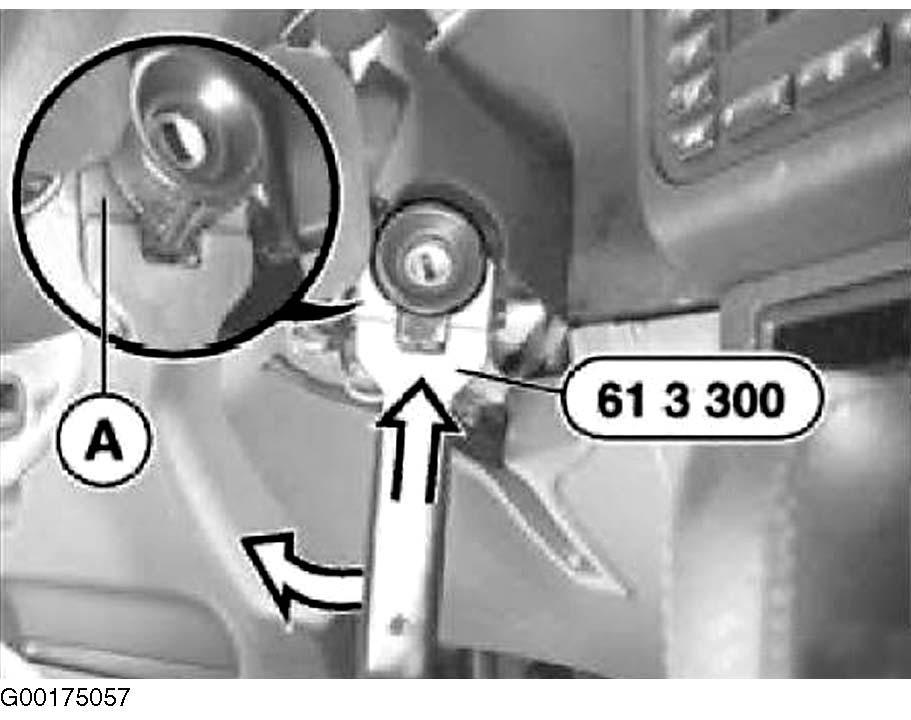

  3. Slide in special tool (61 3 300) with flattened end (A) facing ring antenna and lever out ring antenna. See Figure.

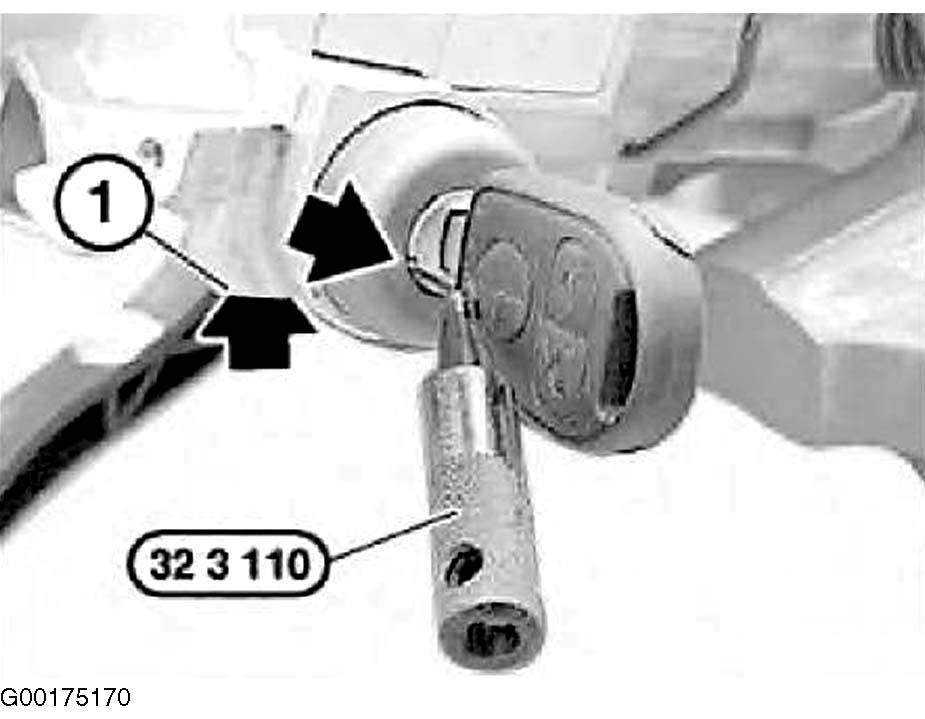

    4. NOTE: In order to be able to turn the locking cylinder in cars with interlocks, it is necessary to press the lock inwards through the hole (1). See Figure.

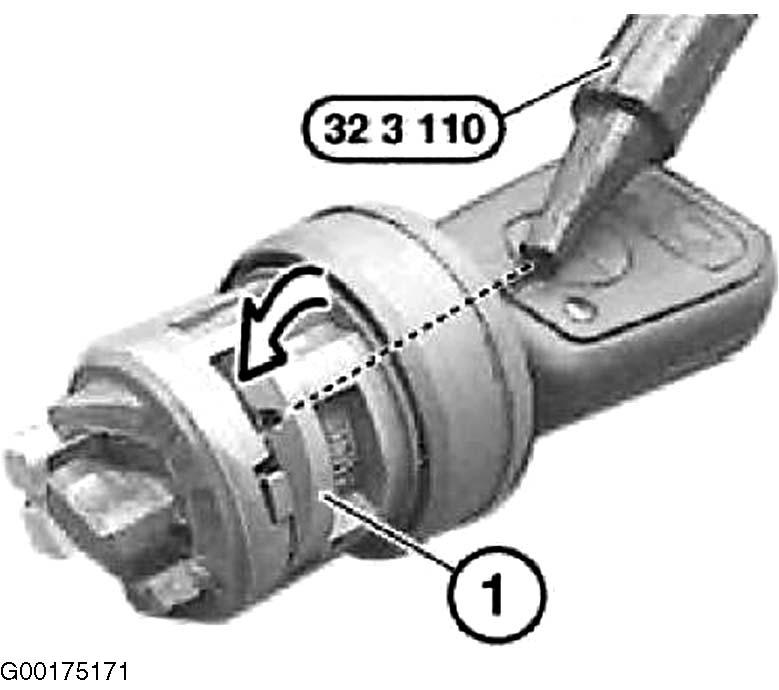

  4. Turn lock to position "R" (first click). Press special tool (32 3 110) onto hole and withdraw locking cylinder. The lock (1) is unlocked with special tool (32 3 110) and locking cylinder can now be removed. Turn special tool in hole if necessary. See Figure.
  5. Unhook helical coiled spring at both ends. See Fig 2.
  6. Remove bushing (1). Press crash disk (3) off crash sleeve (2). Lift crash sleeve (2) out of groove of steering shaft and remove. Remove crash disk (3). See Figure.
  7. Unfasten nut and remove operating lever. See Fig 3.
  8. Remove cable holder. See Fig 4.
  9. Slacken nut (1) for sliding piece. Remove screw (3) with washer (2). See Figure.

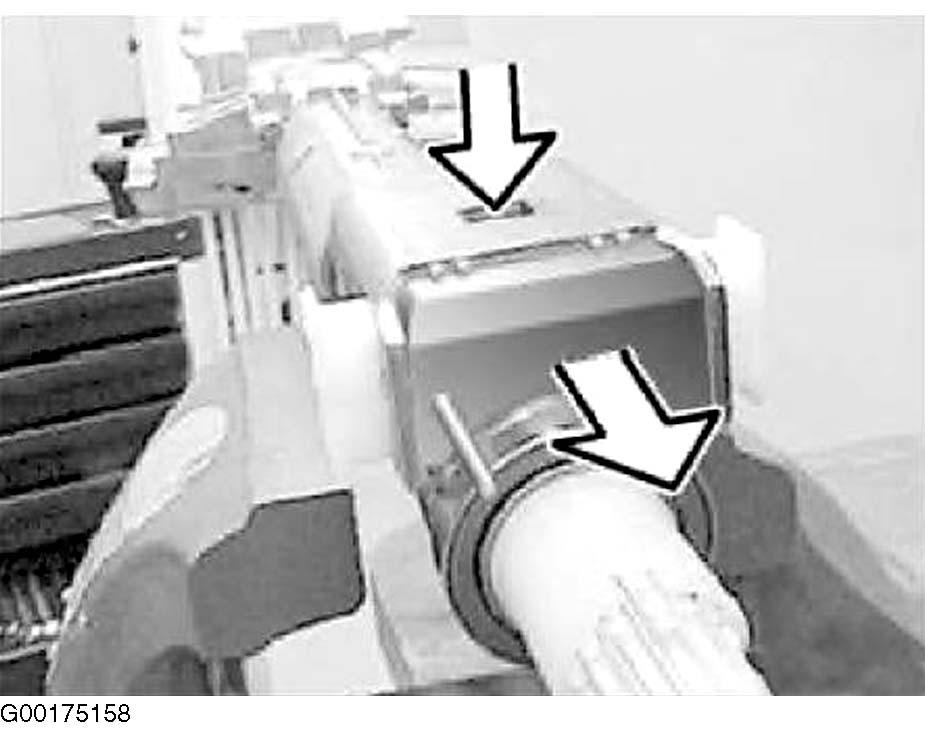

  10. Remove mounting plate (1) and mounting bracket (2). See Fig 5.

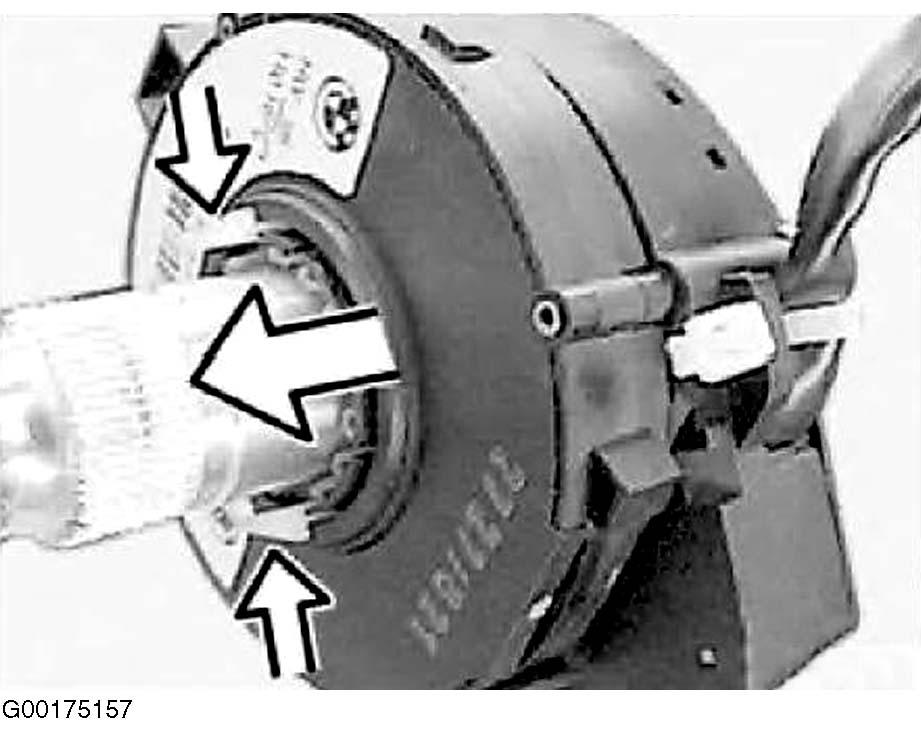

  11. Press down both locking hooks and remove steering angle sensor. See Figure.
  12. Press down locking hooks. Remove locking element. See Figure.
  13. Unfasten screws and remove ignition starter switch. See Fig 6.

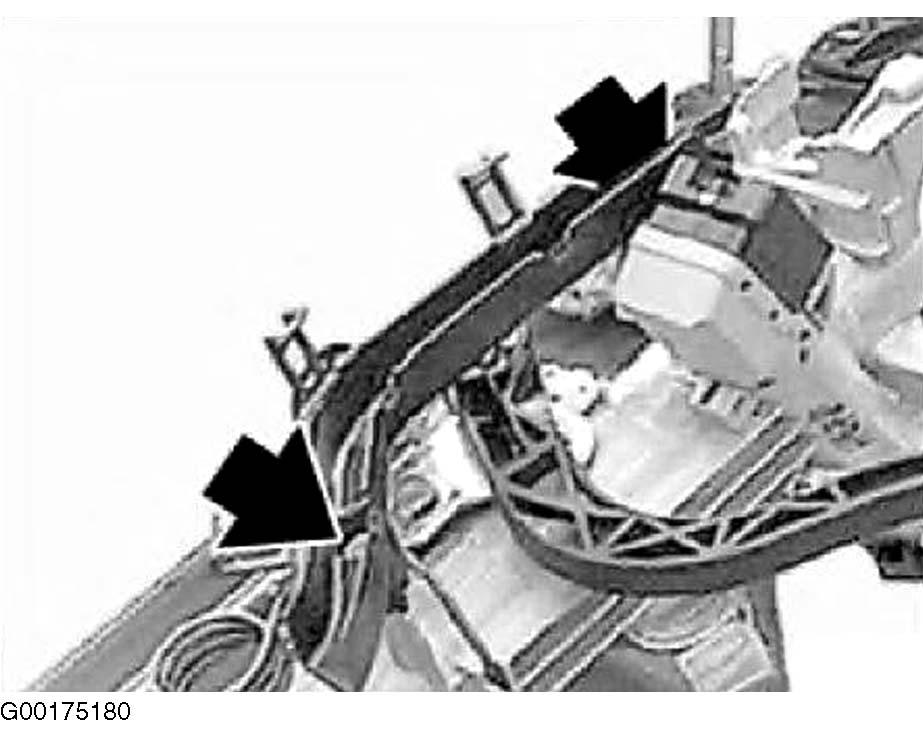

Fig 1: Removing Cable Duct
G00175180Courtesy of BMW OF NORTH AMERICA, INC.

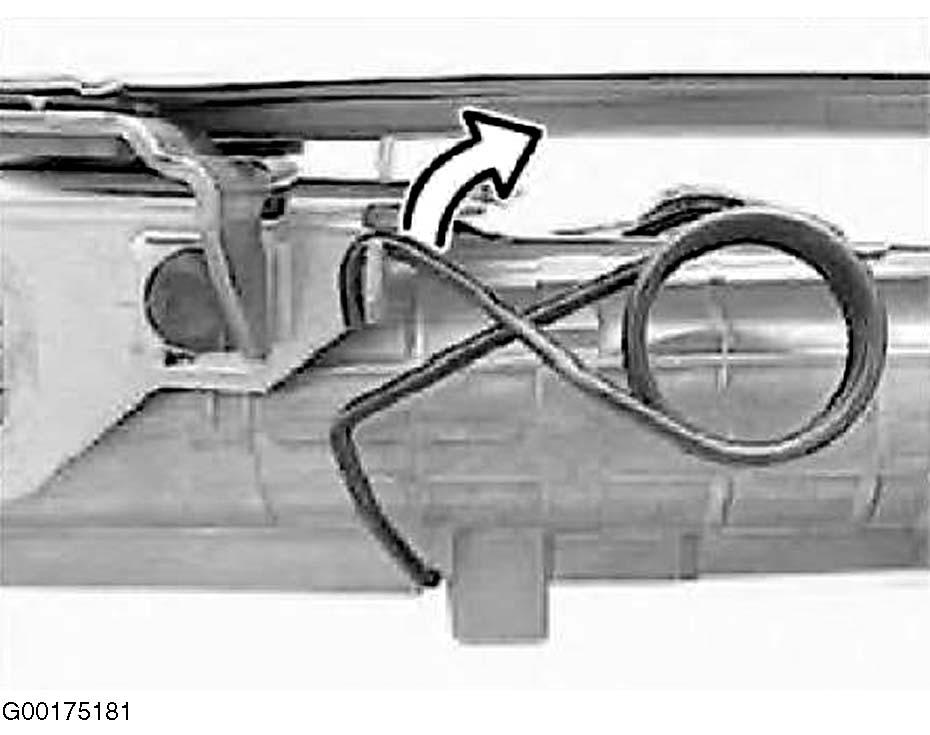

Fig 2: Unhooking Helical Coil Spring
G00175181Courtesy of BMW OF NORTH AMERICA, INC.

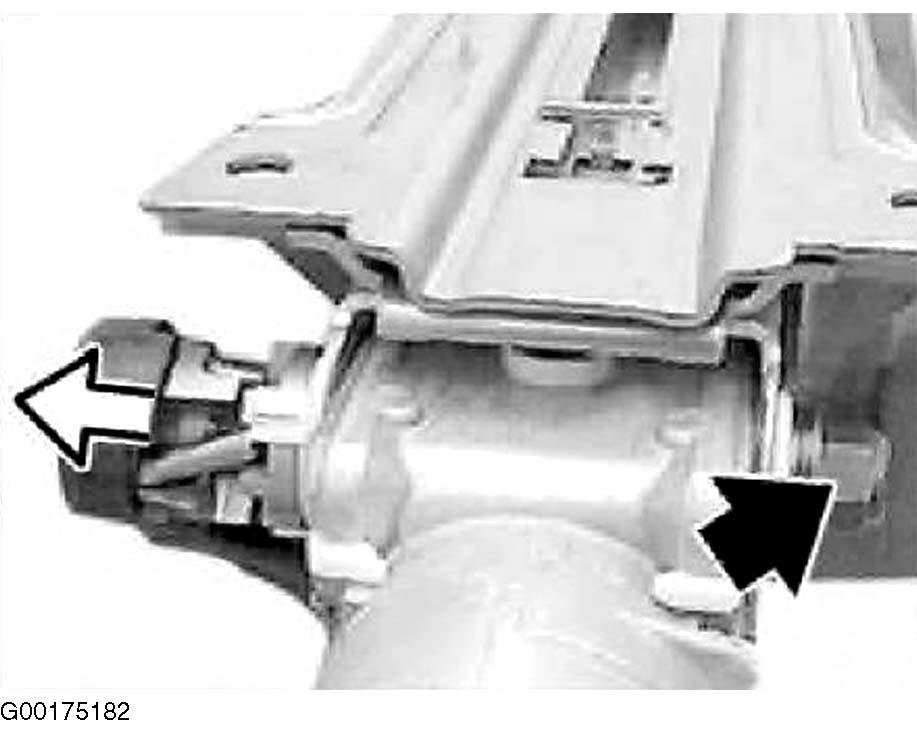

Fig 3: Removing Operating Lever
G00175182Courtesy of BMW OF NORTH AMERICA, INC.

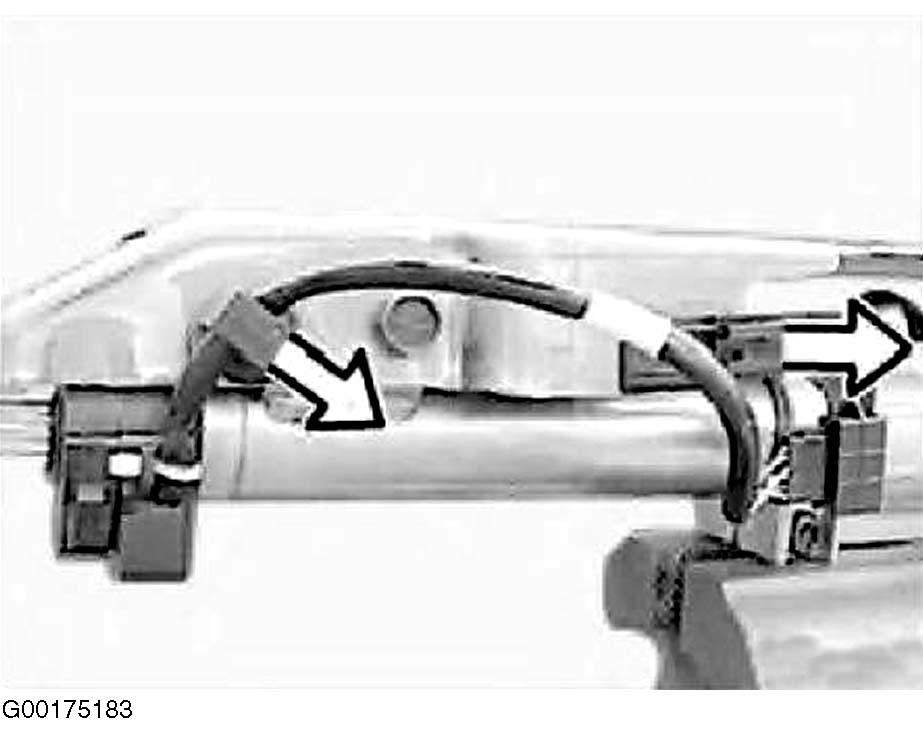

Fig 4: Removing Cable Holder
G00175183Courtesy of BMW OF NORTH AMERICA, INC.
Fig 5: Removing Mounting Bracket $ Plate
G00175184Courtesy of BMW OF NORTH AMERICA, INC.

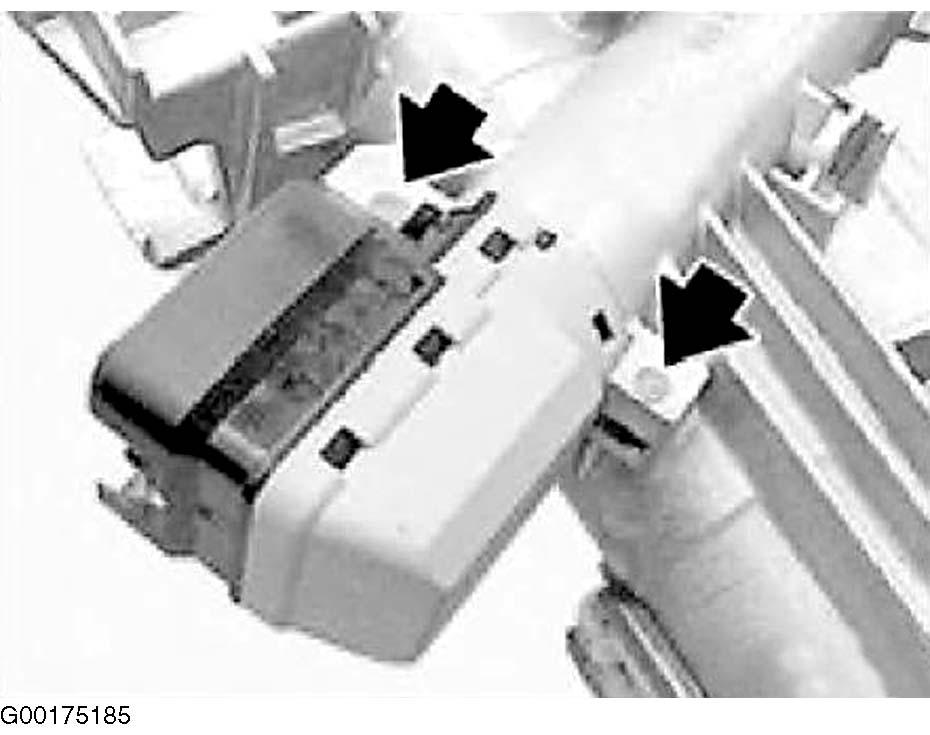

Fig 6: Removing Ignition Starter Switch
G00175185Courtesy of BMW OF NORTH AMERICA, INC.
