Steering Column: Assembly
WARNING: This page is about a different car, the 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.
- To assemble, reverse disassembly procedure.

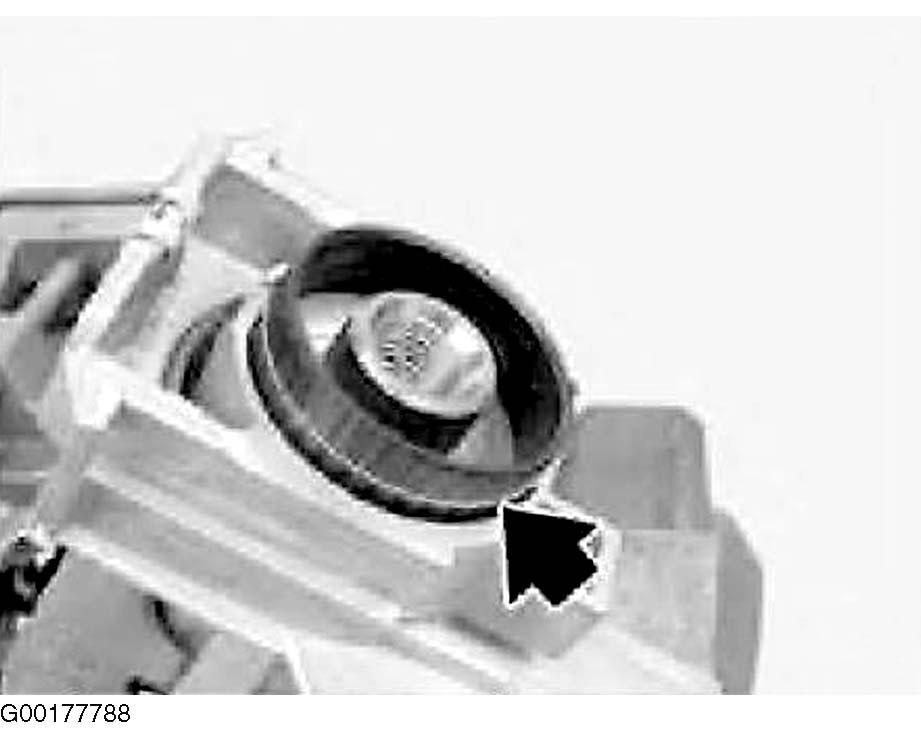

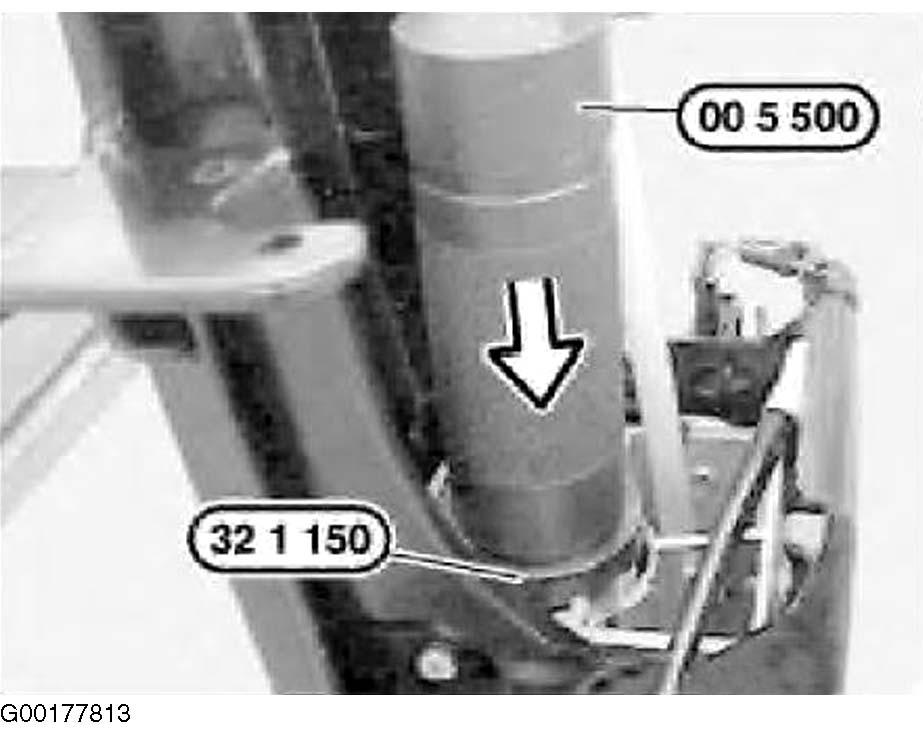

- Press contact ring out of new bearing. Drive in new bearing with special tools (32 1 150) and (00 5 500). Press contact ring for horn ground back into bearing. See Fig 1 .

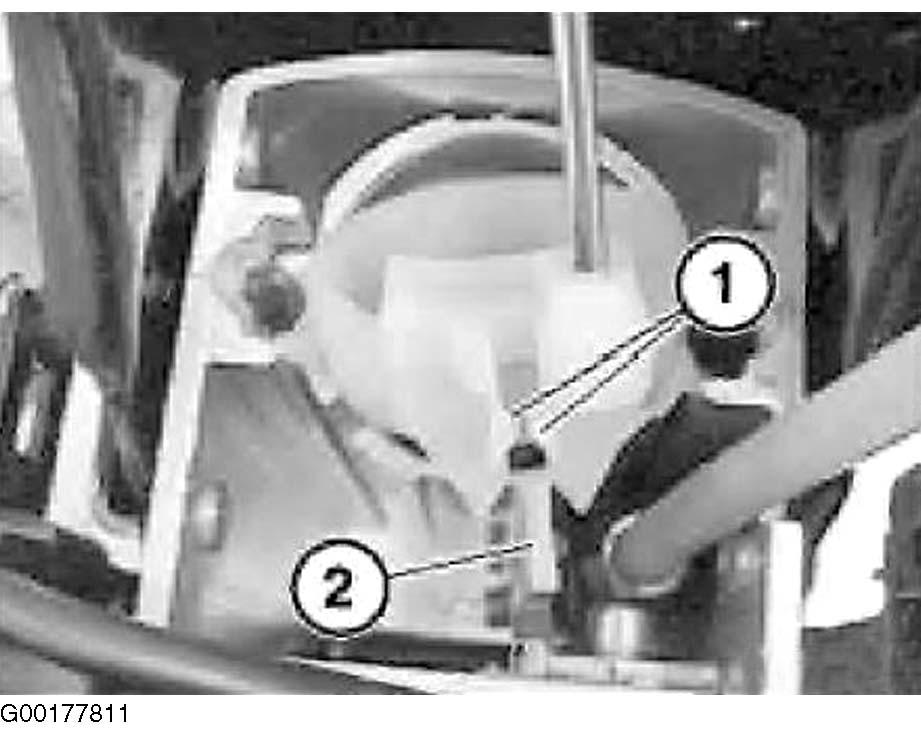

- Insert pivot mounting in steering column tube. Both hooks (1) must snap into place in recess of link (2) in steering column tube. See Figure .

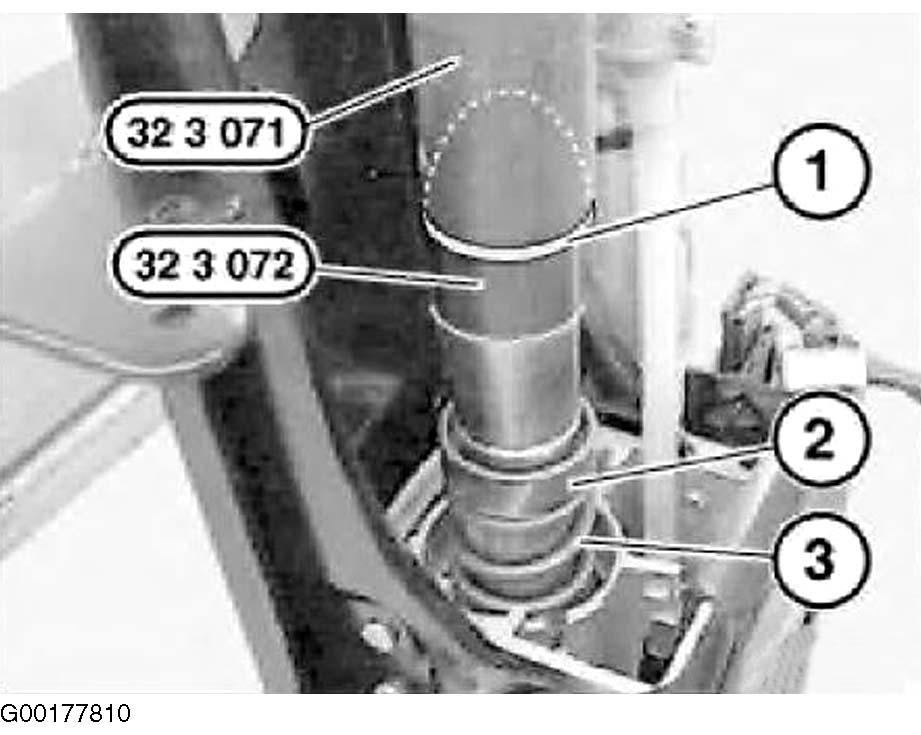

- Fit spring (3) and end collar (2). Recess of collar ring (2) must point to snap ring (1). Install snap ring (1) with special tool (32 3 071/072). See Fig 2 .

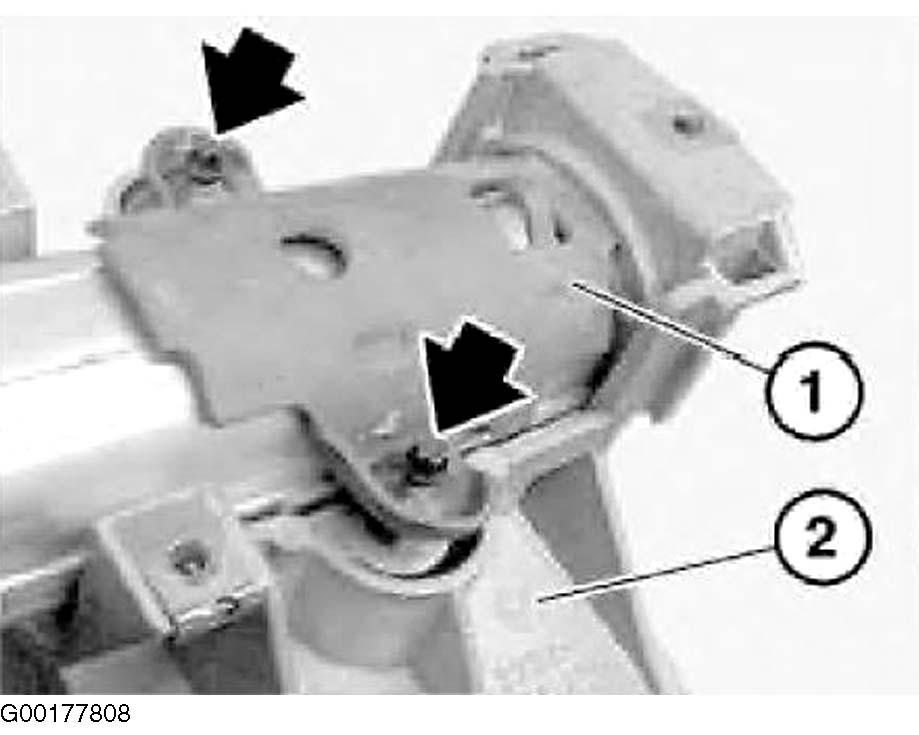

- Bring ELV (2) into contact with steering column tube. Tighten shear off screws until heads shear off. See Figure .
- Insert bearing inner sleeve with bevelled end pointing to steering lock. See Figure .

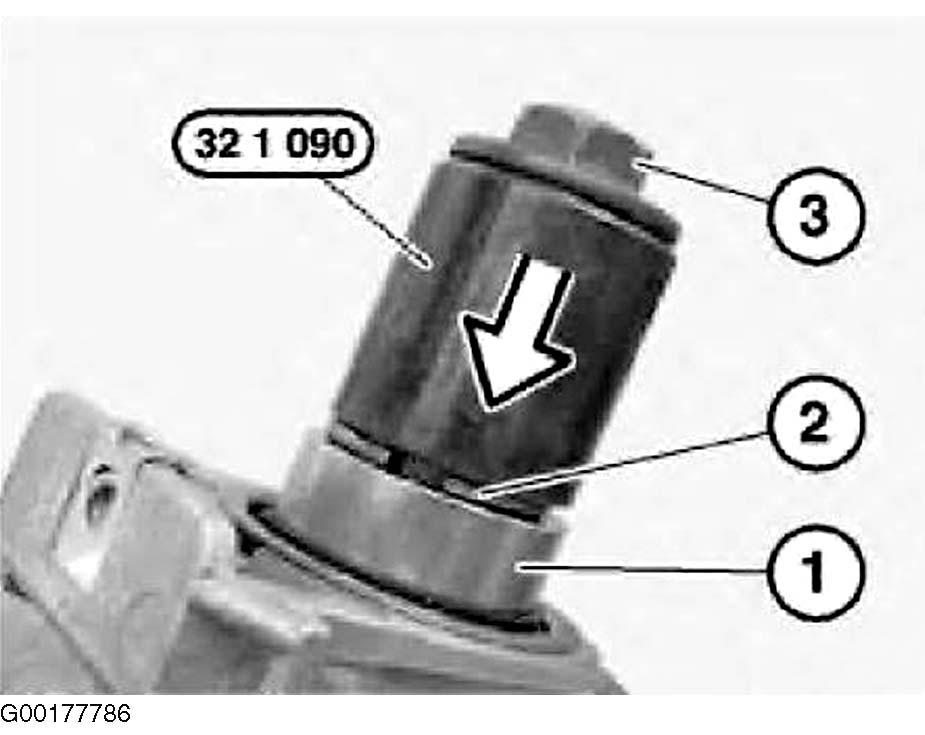

- Fit sleeve (1). Attach snap ring (2) with special tool (32 1 090) and steering wheel retaining screw (3) until it snaps into place in groove of steering spindle. See Figure .

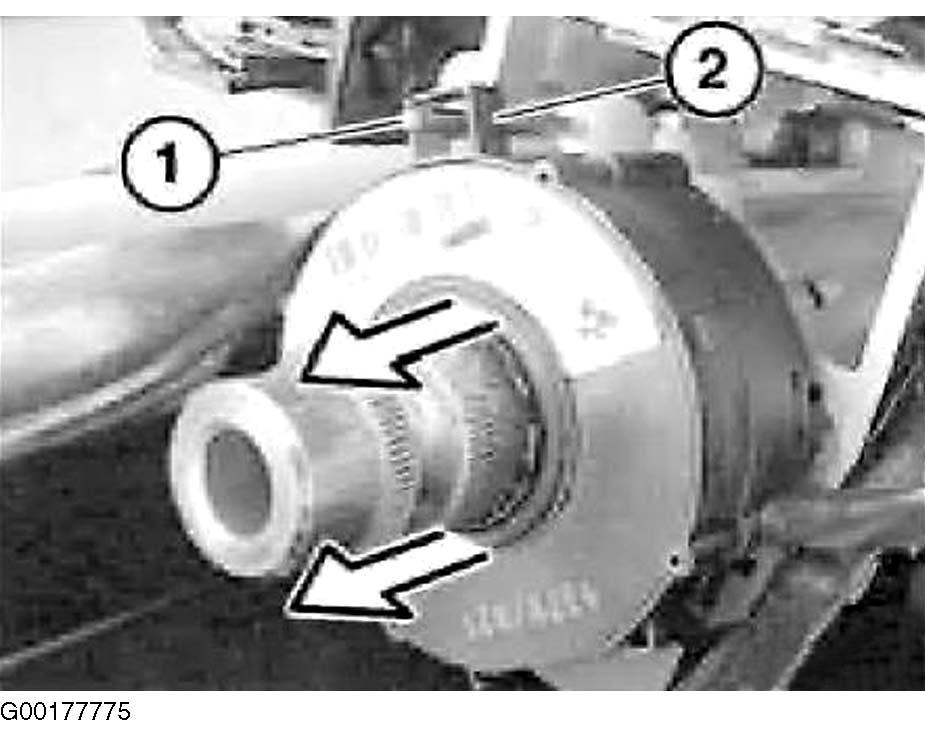

- Ensure pin of pivot mounting (1) rests in square section (2) of steering angle sensor. See Figure .
