Steering Column: Disassembly

WARNING: This page is about a different car, the 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove steering column. See STEERING COLUMN  .
  2. Unfasten screws. Twist connector to remove from bracket. Remove gearbox motor. Detach shaft (1). See Fig 1 .
  3. Detach steering angle sensor from steering spindle. See Figure .

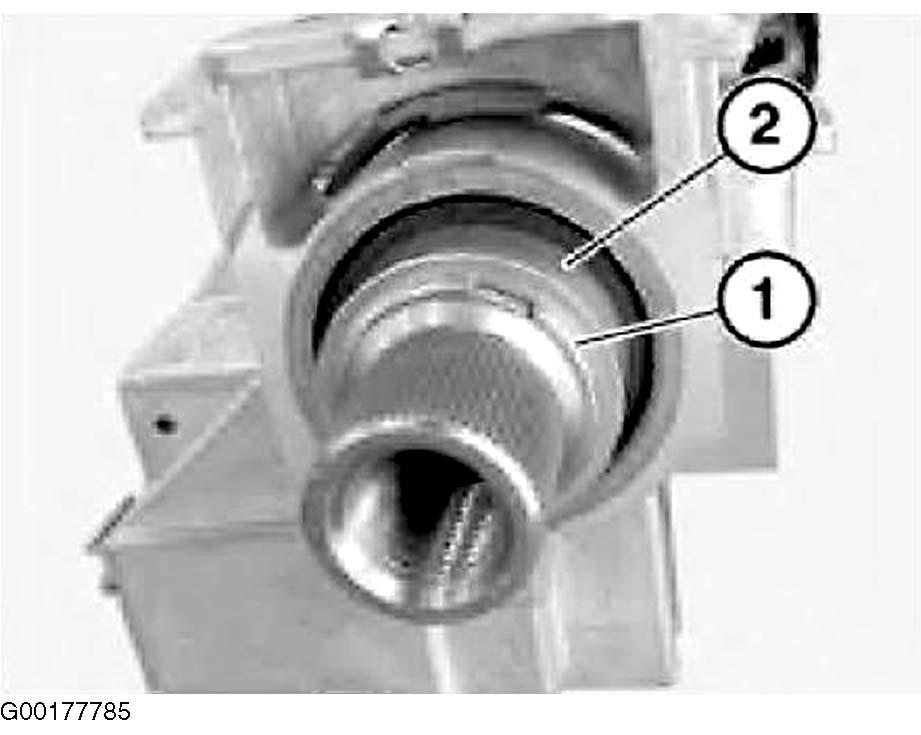

  4. Lift out snap ring (1) and take off with sleeve (2). See Figure .

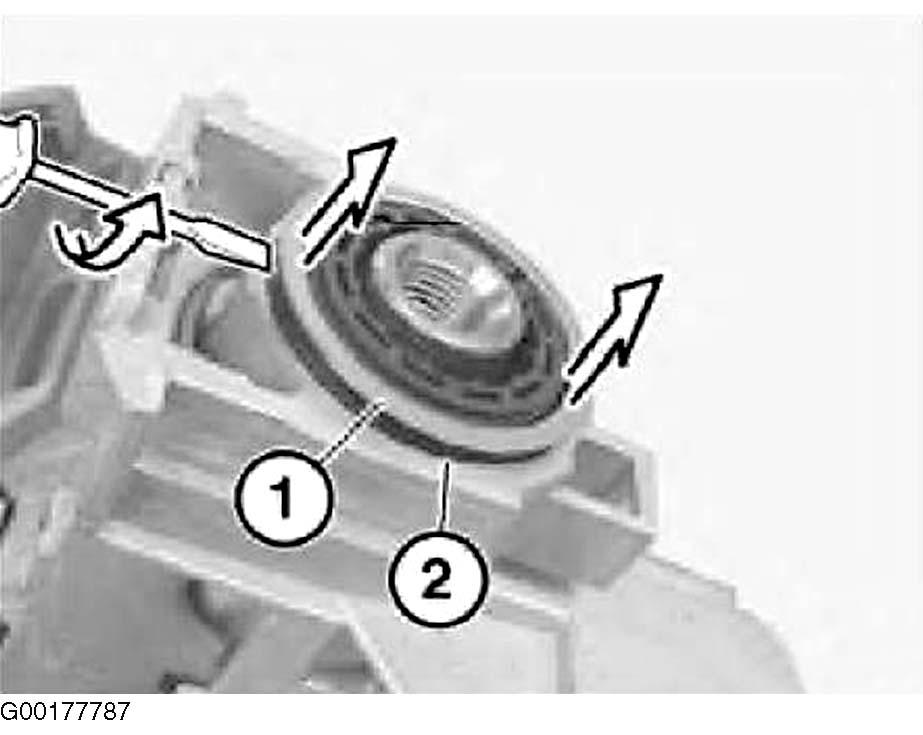

  5. Lever out steering spindle bearing (1) with a screwdriver. Remove bearing inner sleeve (2). See Figure .
  6. Unfasten shear off screws with tool, e.g. chisel. Remove plate (1) and ELV (electric steering wheel lock ) (2). See Fig 2 .
  7. Lift out snap ring (1). Remove end collar (2) and spring (3). Remove steering spindle and pull out steering column tube. See Fig 3 .
  8. Pull pivot mounting out of steering column tube. See Fig 4 .
  9. Knock lower steering spindle bearing with special tool (32 1 140/180) out of steering column tube. See Fig 5 .
  10. Remove spacer tubes (1) and spacer plate (2) on left and right if necessary. See Fig 6 .

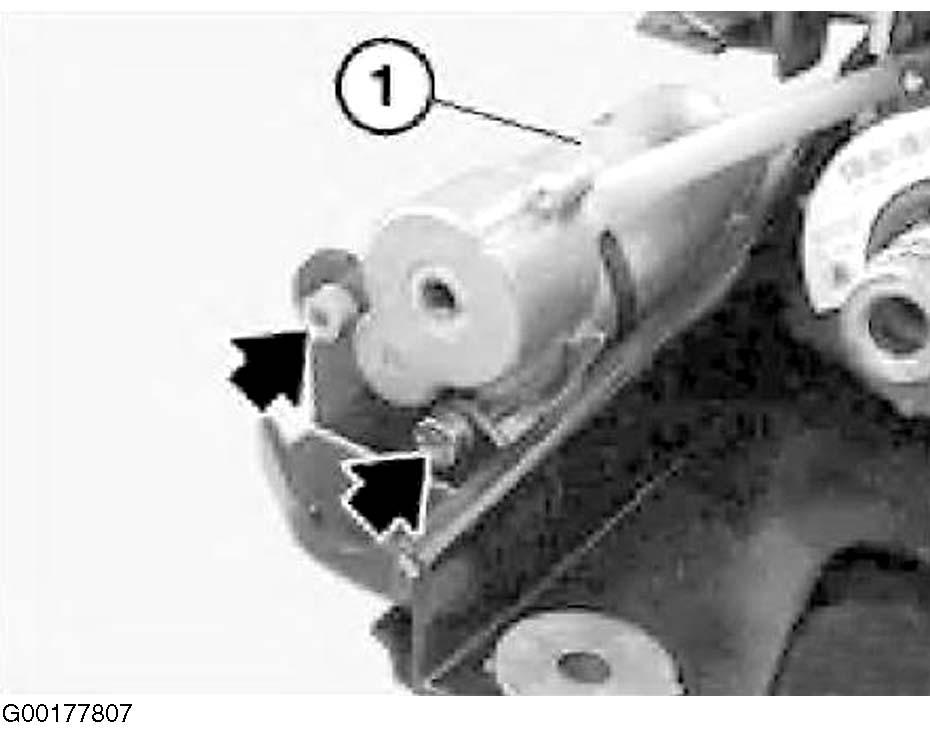

Fig 1: Removing Gearbox Motor
G00177807Courtesy of BMW OF NORTH AMERICA, INC.
Fig 2: Removing Plate & ELV
G00177808Courtesy of BMW OF NORTH AMERICA, INC.

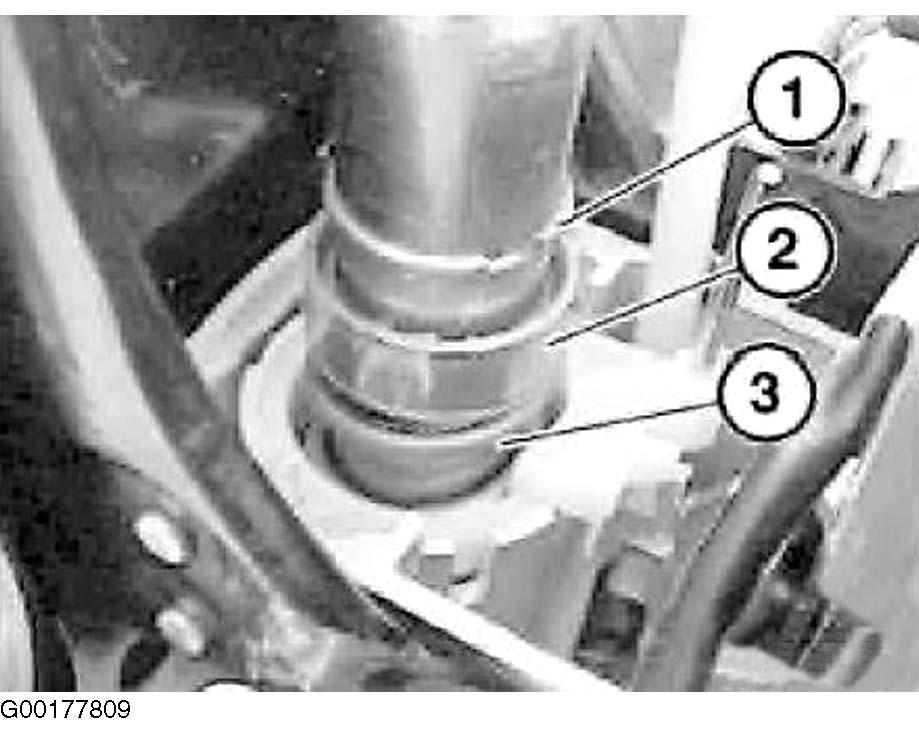

Fig 3: Removing Steering Spindle
G00177809Courtesy of BMW OF NORTH AMERICA, INC.
Fig 4: Removing Pivot Mounting
G00177811Courtesy of BMW OF NORTH AMERICA, INC.

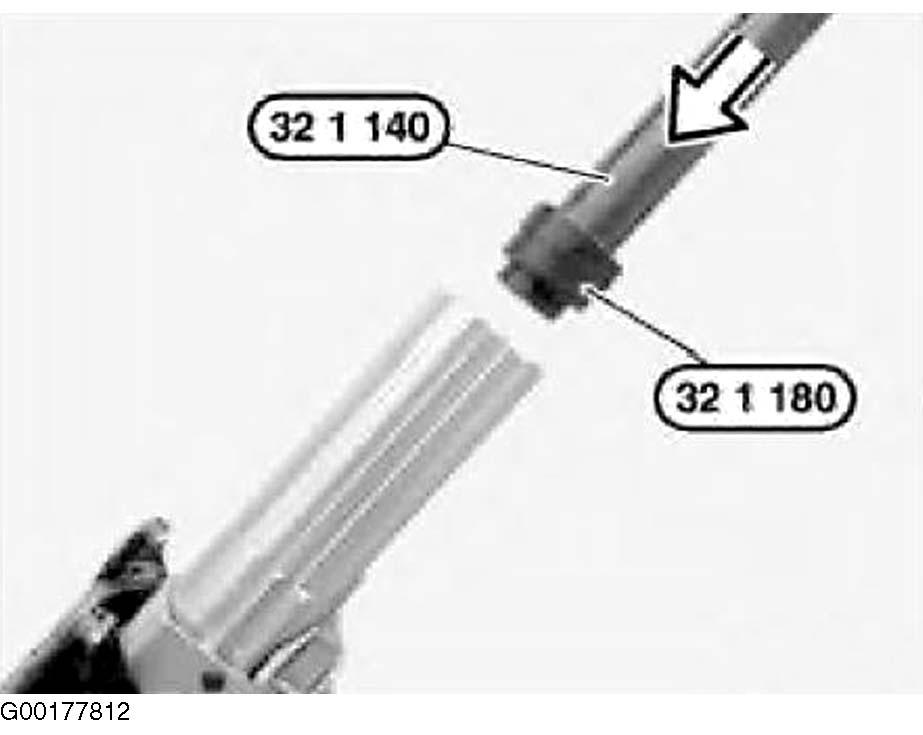

Fig 5: Using Special Tool (32 1 140)
G00177812Courtesy of BMW OF NORTH AMERICA, INC.

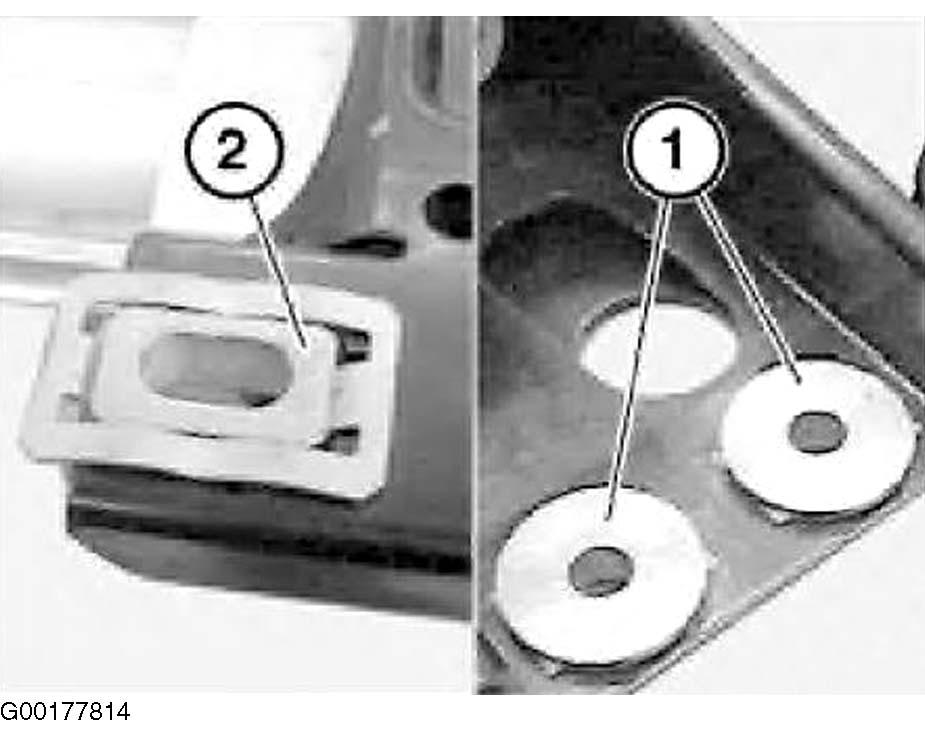

Fig 6: Removing Spacer Tubes
G00177814Courtesy of BMW OF NORTH AMERICA, INC.
